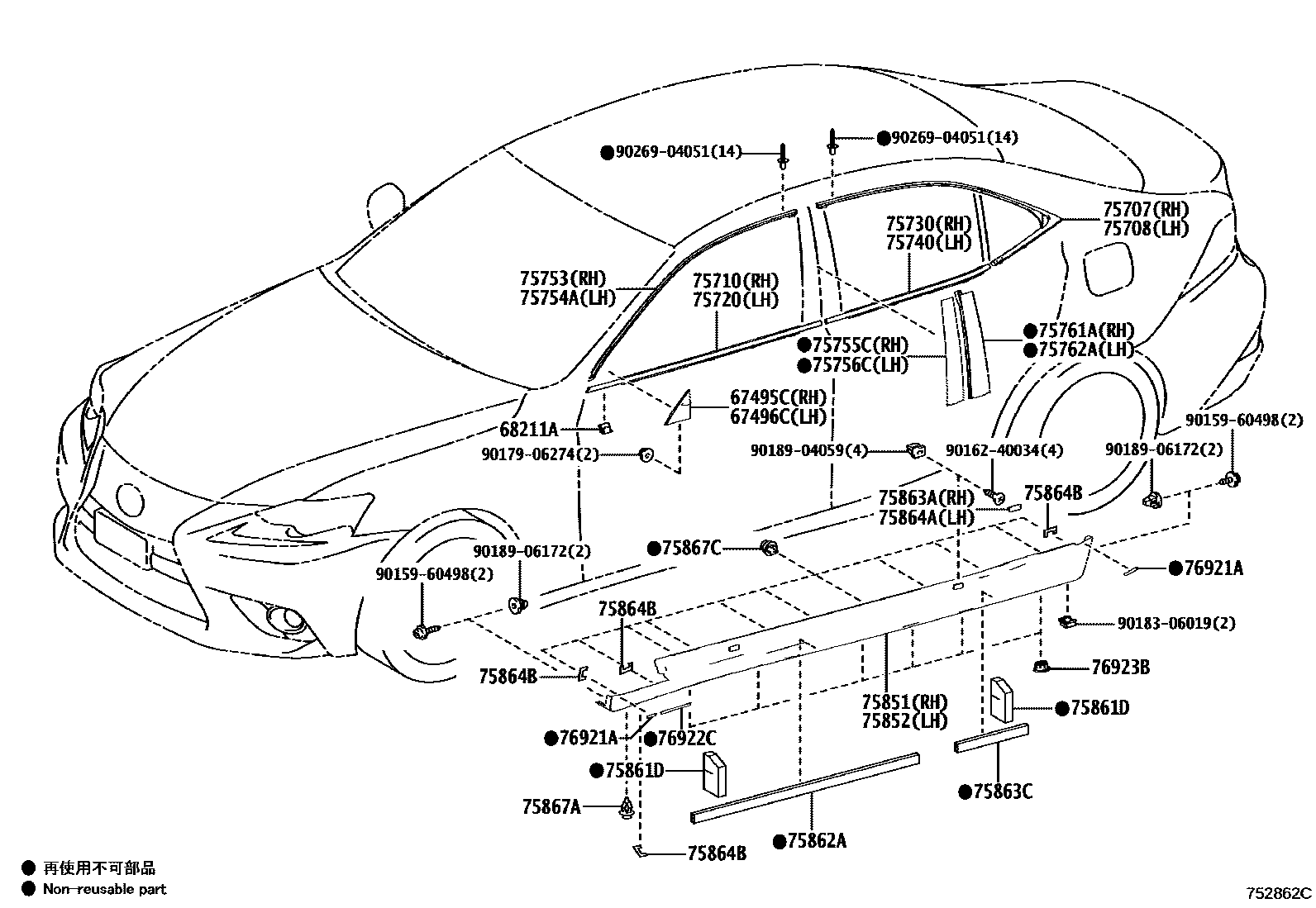

SIDE MOULDING
67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
68211ACLIP, DOOR BELT MOULDING
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
NO PAINT REQ.
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
NO PAINT REQ.
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
75851MOULDING, ROCKER PANEL, RH
PAINT REQ.
75852MOULDING, ROCKER PANEL, LH
PAINT REQ.
75861DPROTECTOR, ROCKER PANEL MOULDING, NO.1
75862APROTECTOR, ROCKER PANEL MOULDING, NO.2
75864BPROTECTOR, ROCKER PANEL MOULDING, NO.4
75867ACLIP, ROCKER PANEL MOULDING
75867CCLIP, ROCKER PANEL MOULDING
76921APROTECTOR, SIDE MUDGUARD, NO.1
76922CPROTECTOR, SIDE MUDGUARD, NO.2
76923BRETAINER, SIDE MUDGUARD
9015960498
main90159-60498
9016240034
main90162-40034
9017906274
main90179-06274
9018306019
main90183-06019
9018904059
main90189-04059
9018906172
main90189-06172
9026904051
main90269-04051
35 parts on this diagram · 3 diagrams in section
