SEAT BELT & CHILD RESTRAINT SEAT

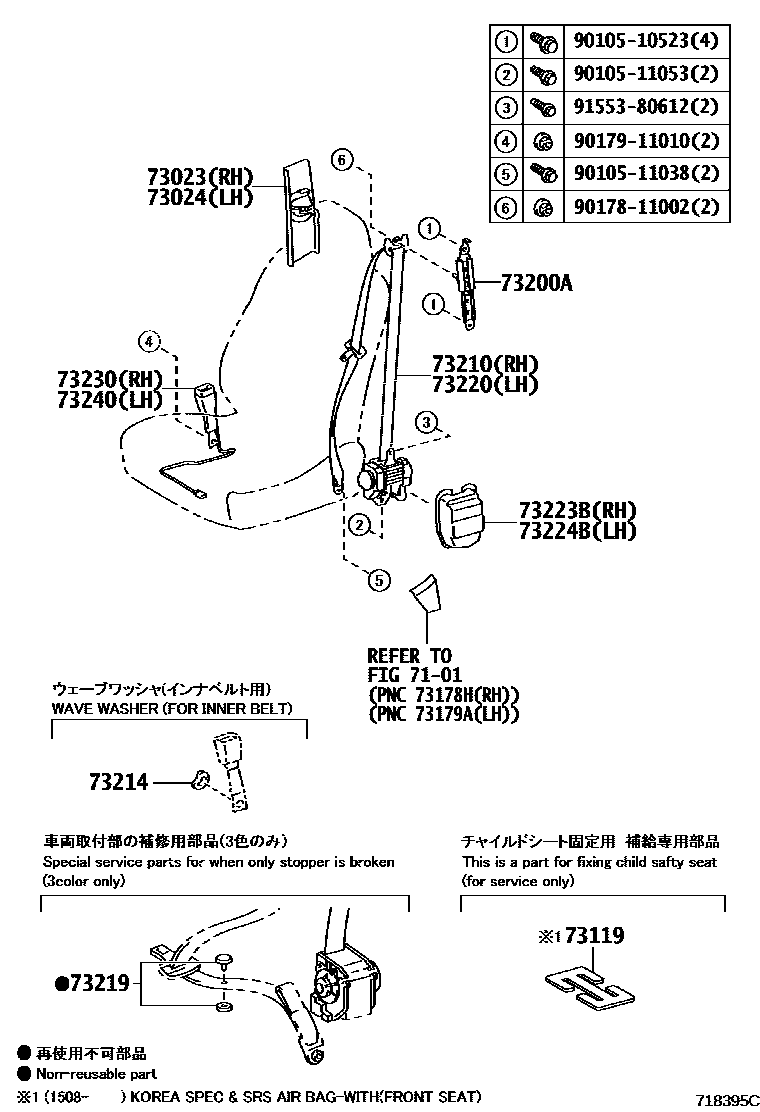

Parts diagram
7101
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-33030-A1i201304-201610
IVORY,TRIM0#,5#
sub73023-58010¥1,710
sub73023-33030¥2,480
main73023-33030-A2i201610-202009
ECRU,TRIM01,02,03,11,12,13,4#,5#
sub73023-58010¥1,710
sub73023-33030¥2,480
main73023-33030-B1i201610-202009
LT.GRAY,TRIM21,22,23,91,92,93
sub73023-58010¥1,710
sub73023-33030¥2,480
main73023-33030-B1i201304-201508
LT.GRAY,TRIM10,11,12,13,20,21,22,23
sub73023-58010¥1,710
sub73023-33030¥2,480
main73023-33030-B3i201508-201610
MOON STONE,TRIM10,11,14,20,21,24
sub73023-58010¥1,710
sub73023-33030¥2,480
main73023-33030-B3i201508-201610
MOON STONE,TRIM10,11,12,14,20,21,22,24
sub73023-58010¥1,710
sub73023-33030¥2,480
main73023-33030-C0i201610-202009
BLACK,TRIM04,05,14,15,2#,3#,8#,94,95
sub73023-58010¥1,710
sub73023-33030¥2,480
main73023-33030-C0i201304-201508
BLACK,TRIM10,14,20,24,3#
sub73023-58010¥1,710
sub73023-33030¥2,480
main73023-33030-C0i201508-201610
BLACK,TRIM10,11,13,20,21,23,3#
sub73023-58010¥1,710
sub73023-33030¥2,480
main73023-33030-C0i201508-201610
BLACK,TRIM13,23,3#
sub73023-58010¥1,710
sub73023-33030¥2,480
main73023-33030-C1i202111
BLACK,TRIM0#,5#,6#,7#,8#
sub73023-58010¥1,710
sub73023-33030¥2,480
main73023-33030-C1i202009-202110
BLACK,TRIM0#,2#,3#,4#,6#,7#
sub73023-58010¥1,710
sub73023-33030¥2,480
main73023-33030-C1i202009-202110
BLACK,TRIM0#,2#,3#,6#,7#
sub73023-58010¥1,710
sub73023-33030¥2,480
main73023-33030-C1i202111
BLACK,TRIM0#,2#,3#,4#,6#,7#,8#
sub73023-58010¥1,710
sub73023-33030¥2,480
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-33030-A1i201304-201610
IVORY,TRIM0#,5#
sub73024-58010¥1,710
sub73024-33030¥2,480
main73024-33030-A2i201610-202009
ECRU,TRIM01,02,03,11,12,13,4#,5#
sub73024-58010¥1,710
sub73024-33030¥2,480
main73024-33030-B1i201610-202009
LT.GRAY,TRIM21,22,23,91,92,93
sub73024-58010¥1,710
sub73024-33030¥2,480
main73024-33030-B1i201304-201508
LT.GRAY,TRIM10,11,12,13,20,21,22,23
sub73024-58010¥1,710
sub73024-33030¥2,480
main73024-33030-B3i201508-201610
MOON STONE,TRIM10,11,12,14,20,21,22,24
sub73024-58010¥1,710
sub73024-33030¥2,480
main73024-33030-B3i201508-201610
MOON STONE,TRIM10,11,14,20,21,24
sub73024-58010¥1,710
sub73024-33030¥2,480
main73024-33030-C0i201508-201610
BLACK,TRIM13,23,3#
sub73024-58010¥1,710
sub73024-33030¥2,480
main73024-33030-C0i201508-201610
BLACK,TRIM10,11,13,20,21,23,3#
sub73024-58010¥1,710
sub73024-33030¥2,480
main73024-33030-C0i201304-201508
BLACK,TRIM10,14,20,24,3#
sub73024-58010¥1,710
sub73024-33030¥2,480
main73024-33030-C0i201610-202009
BLACK,TRIM04,05,14,15,2#,3#,8#,94,95
sub73024-58010¥1,710
sub73024-33030¥2,480
main73024-33030-C1i202111
BLACK,TRIM0#,5#,6#,7#,8#
sub73024-58010¥1,710
sub73024-33030¥2,480
main73024-33030-C1i202009-202110
BLACK,TRIM0#,2#,3#,4#,6#,7#
sub73024-58010¥1,710
sub73024-33030¥2,480
main73024-33030-C1i202009-202110
BLACK,TRIM0#,2#,3#,6#,7#
sub73024-58010¥1,710
sub73024-33030¥2,480
main73024-33030-C1i202111
BLACK,TRIM0#,2#,3#,4#,6#,7#,8#
sub73024-58010¥1,710
sub73024-33030¥2,480
73119PLATE, SEAT BELT WEBBING CLIP
main73119-22010¥1,110
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-12070i¥3,200201507-202110
main73200-53010i¥3,020201304-201506
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-53450-A0i201304-201306
IVORY,TRIM0#,5#
sub73210-53451
main73210-53450-B0i201304-201306
LT.GRAY,TRIM10,11,12,13,20,21,22,23
sub73210-53451
main73210-53450-C0i201304-201306
BLACK,TRIM10,14,20,24,3#
sub73210-53451
main73210-53451-A0i201307-201610
IVORY,TRIM0#,5#
main73210-53451-A1i201610-201710
ECRU,TRIM01,02,03,11,12,13,4#,5#
main73210-53451-B0i201610-201710
LT.GRAY,TRIM21,22,23,91,92,93
main73210-53451-B0i201307-201508
LT.GRAY,TRIM10,11,20,21
main73210-53451-B1i201508-201610
MOON STONE,TRIM10,11,14,20,21,24
main73210-53451-B1i201508-201610
MOON STONE,TRIM10,11,12,14,20,21,22,24
main73210-53451-C0i201508-201610
BLACK,TRIM10,11,13,20,21,23,3#
main73210-53451-C0i201307-201508
BLACK,TRIM10,20,3#
main73210-53451-C0i201508-201610
BLACK,TRIM13,23,3#
main73210-53451-C0i201610-201710
BLACK,TRIM04,05,14,15,2#,3#,94,95
main73210-53452-A1i201710-202009
ECRU,TRIM11,13,5#
sub73210-53453
main73210-53452-B0i201710-202009
LT.GRAY,TRIM21,23,9#
sub73210-53453
main73210-53452-C0i202009-202207
BLACK,TRIM0#,6#,7#
sub73210-53453
main73210-53452-C0i202009-202207
BLACK,TRIM0#,2#,3#,4#,6#,7#
sub73210-53453
main73210-53452-C0i201710-202009
BLACK,TRIM14,15,24,25,3#,8#
sub73210-53453
main73210-53453-C0i202208-202506
BLACK,TRIM0#,5#,6#,7#,8#
main73210-53453-C0i202208
BLACK,TRIM0#,2#,3#,4#,6#,7#,8#
73214PLATE, FRONT SEAT BELT ANCHOR
main73214-75010i¥170201304-202110
73219STOPPER, TONGUE PLATE
main73219-02010i¥80201304-202110
BLACK
main73219-02020i¥80201304-202110
GRAY
main73219-02030i¥80201304-202110
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-53340-A0i201304-201306
IVORY,TRIM0#,5#
sub73220-53341
main73220-53340-B0i201304-201306
LT.GRAY,TRIM10,11,12,13,20,21,22,23
sub73220-53341
main73220-53340-C0i201304-201306
BLACK,TRIM10,14,20,24,3#
sub73220-53341
main73220-53341-A0i201307-201610
IVORY,TRIM0#,5#
main73220-53341-A1i201610-201710
ECRU,TRIM01,02,03,11,12,13,4#,5#
main73220-53341-B0i201610-201710
LT.GRAY,TRIM21,22,23,91,92,93
main73220-53341-B0i201307-201508
LT.GRAY,TRIM10,11,20,21
main73220-53341-B1i201508-201610
MOON STONE,TRIM10,11,12,14,20,21,22,24
main73220-53341-B1i201508-201610
MOON STONE,TRIM10,11,14,20,21,24
main73220-53341-C0i201508-201610
BLACK,TRIM10,11,13,20,21,23,3#
main73220-53341-C0i201307-201508
BLACK,TRIM10,20,3#
main73220-53341-C0i201508-201610
BLACK,TRIM13,23,3#
main73220-53341-C0i201610-201710
BLACK,TRIM04,05,14,15,2#,3#,94,95
main73220-53342-A1i201710-202009
ECRU,TRIM11,13,5#
sub73220-53343
main73220-53342-B0i201710-202009
LT.GRAY,TRIM21,23,9#
sub73220-53343
main73220-53342-C0i201710-202009
BLACK,TRIM14,15,24,25,3#,8#
sub73220-53343
main73220-53342-C0i202009-202207
BLACK,TRIM0#,2#,3#,4#,6#,7#
sub73220-53343
main73220-53342-C0i202009-202207
BLACK,TRIM0#,6#,7#
sub73220-53343
main73220-53343-C0i202208-202506
BLACK,TRIM0#,5#,6#,7#,8#
main73220-53343-C0i202208
BLACK,TRIM0#,2#,3#,4#,6#,7#,8#
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
main73223-53020i¥1,090201304-202110
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
main73224-53020i¥1,090201304-202110
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-53240-C0i201304-201610
BLACK,TRIM0#,1#,2#,3#,5#
main73230-53240-C0i201610-202009
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
main73230-53240-C0i202009-202110
BLACK,TRIM0#,2#,3#,4#,6#,7#
main73230-53240-C0i202009-202110
BLACK,TRIM0#,6#,7#
main73230-53240-C0i202111
BLACK,TRIM0#,2#,3#,4#,6#,7#,8#
main73230-53240-C0i202111
BLACK,TRIM0#,5#,6#,7#,8#
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-53040-C0i202009-202110
BLACK,TRIM0#,6#,7#
main73240-53040-C0i201304-201610
BLACK,TRIM0#,1#,2#,3#,5#
main73240-53040-C0i201610-202009
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
main73240-53040-C0i202009-202110
BLACK,TRIM0#,2#,3#,4#,6#,7#
main73240-53040-C0i202111
BLACK,TRIM0#,2#,3#,4#,6#,7#,8#
main73240-53040-C0i202111
BLACK,TRIM0#,5#,6#,7#,8#
9010510523
main90105-10523¥100
9010511038
main90105-11038¥100
9010511053
main90105-11053¥100
9017811002
main90178-11002¥100
9017911010
main90179-11010¥110
9155380612
main91553-80612¥60

19 parts on this diagram · 3 diagrams in section
