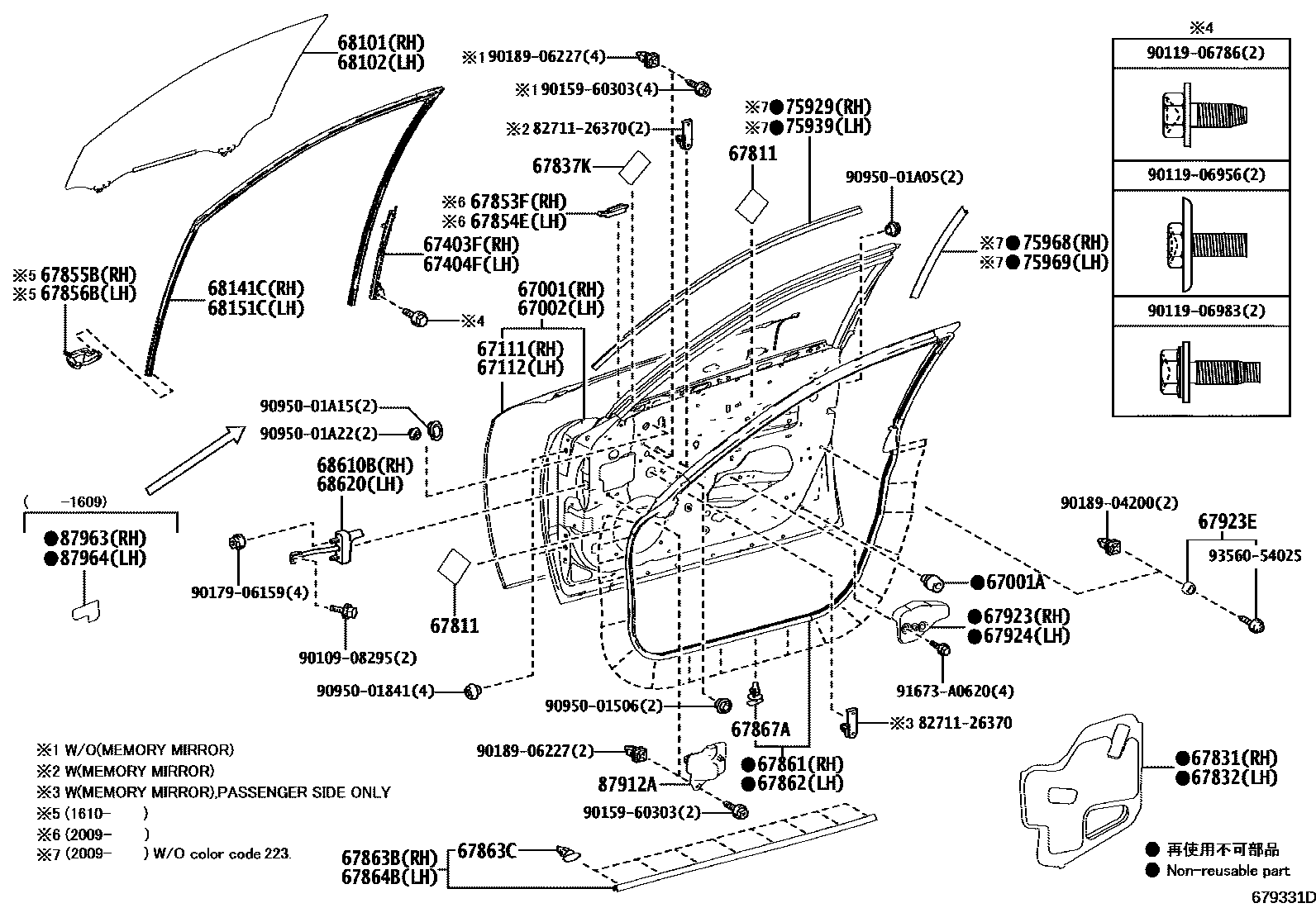

FRONT DOOR PANEL & GLASS
67001ACUSHION, FRONT DOOR PANEL
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67811PAD, FRONT DOOR SILENCER
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67837KSEAL, FRONT DOOR VENT
67853FPROTECTOR, FRONT DOOR, UPPER RH
67854EPROTECTOR, FRONT DOOR, UPPER LH
67855BPROTECTOR, FRONT DOOR PANEL, RH
67856BPROTECTOR, FRONT DOOR PANEL, LH
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
67863CCLIP(FOR FRONT DOOR NO.2 WEATHERSTRIP)
RH
LH
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67923CUSHION, FRONT DOOR STIFFENER, NO.1
67923ECUSHION, FRONT DOOR STIFFENER, NO.1
67924CUSHION, FRONT DOOR STIFFENER, NO.2
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
75929TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH
0 OR 1PIECE,REF.ILL.
75939TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH
0 OR 1PIECE,REF.ILL.
75968TAPE, BLACK OUT FRONT DOOR, INNER REAR RH
0 OR 1PIECE,REF.ILL.
75969TAPE, BLACK OUT FRONT DOOR, INNER REAR LH
0 OR 1PIECE,REF.ILL.
87912APROTECTOR, OUTER MIRROR
RH
LH
RH
LH
87963COVER, OUTER MIRROR INSTALL HOLE, RH
87964COVER, OUTER MIRROR INSTALL HOLE, LH
8271126370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-26370
9010908295
main90109-08295
9011906786
main90119-06786
9011906956
main90119-06956
9011906983
main90119-06983
9015960303
main90159-60303
9017906159
main90179-06159
9018904200
main90189-04200
9018906227
main90189-06227
9095001506
main90950-01506
9095001841
main90950-01841
9095001A05
main90950-01A05
9095001A15
main90950-01A15
9095001A22
main90950-01A22
91673A0620
main91673-A0620
9356054025
main93560-54025
53 parts on this diagram · 2 diagrams in section
