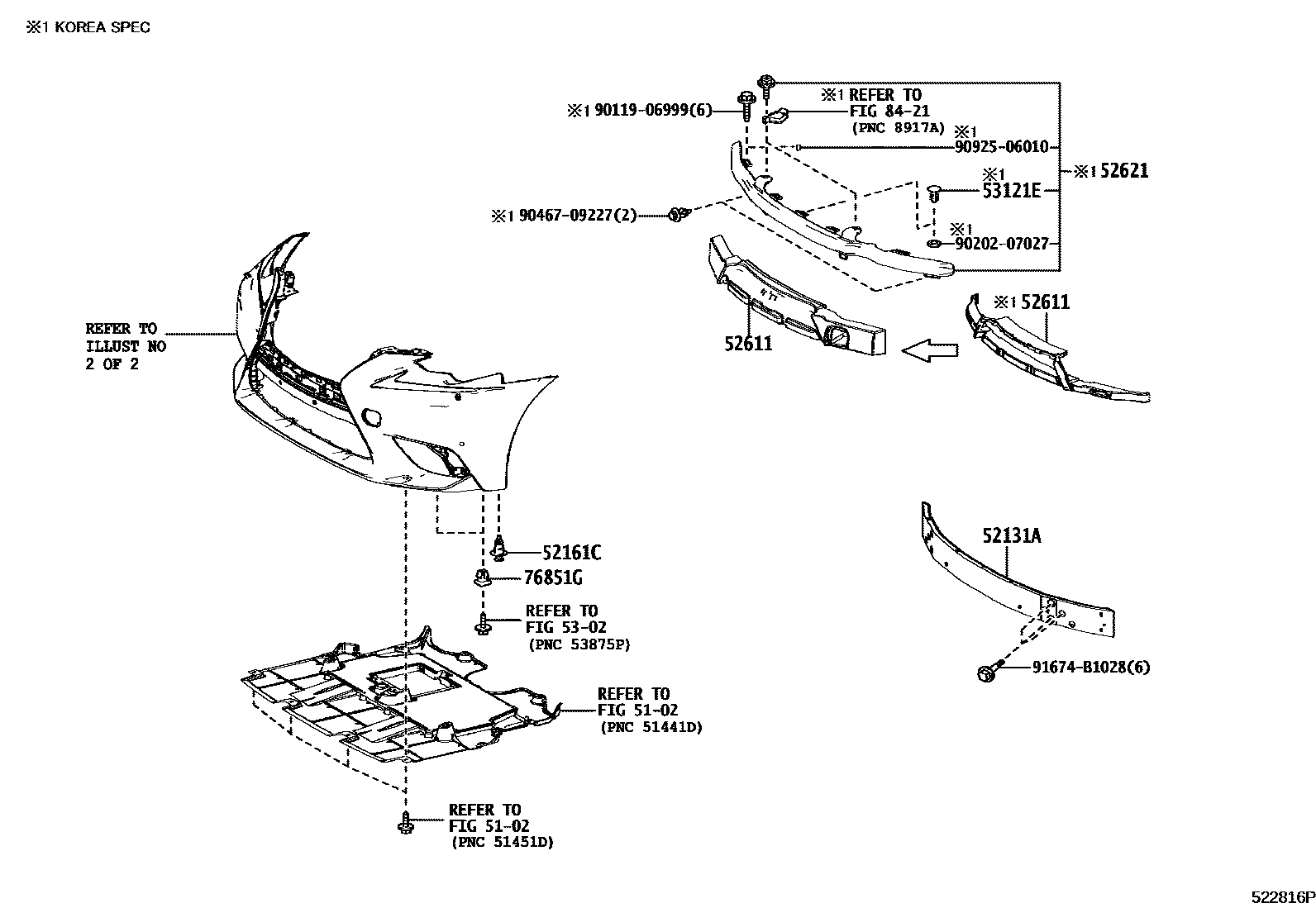

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1F SPORT 0004 1F SPORT 0005 1 0006 1 0007 1KOREA SPEC 0008 1KOREA SPEC 0009 1F SPORT 0010 1F SPORT 0011 1KOREA SPEC & F SPORT 0012 1KOREA SPEC & F SPORT 0013 1 0014 1 0015 1 0016 1F SPORT 0017 1F SPORT 0018 1 0019 1

5102

52131AREINFORCEMENT, FRONT BUMPER

main52029-53020iASE30,GSE3#201610-201706

sub52131-53130

main52131-53080iASE30,GSE3#201508-201610

KOREA SPEC

main52131-53080iGSE3#201304-201508

main52131-53080iASE30,GSE3#201508-201610

CANADA SPEC

main52131-53130iASE30,GSE3#201706-202009

main52131-53140iASE30,GSE3#202209

main52131-53160iASE30,GSE36,37202009-202110

CANADA SPEC

main52131-53160iASE30,GSE3#202111-202209

main52131-53170iUSE30202209

main52131-53180iUSE30202111-202209

52161CPIECE, FRONT BUMPER

main52161-16010iGSE3#201304-202110

sub52161-0K040

52611ABSORBER, FRONT BUMPER ENERGY

main52611-53160iGSE3#201304-201610

main52611-53200iASE30,GSE3#201610-202009

main52611-53240iASE30,GSE3#202009-202110

main52611-53251iUSE30202111

52621CHAMBER, POP UP HOOD

main52621-53020

main52621-53040

5302

53121ECLIP(FOR FRONT BUMPER), NO.1

76851GGROMMET, SCREW, NO.1

main90189-06193iGSE3#201304-202009

8421

9011906999

main90119-06999

9020207027

main90202-07027

9046709227

main90467-09227

9092506010

main90925-06010

91674B1028

main91674-B1028

14 parts on this diagram · 19 diagrams in section
