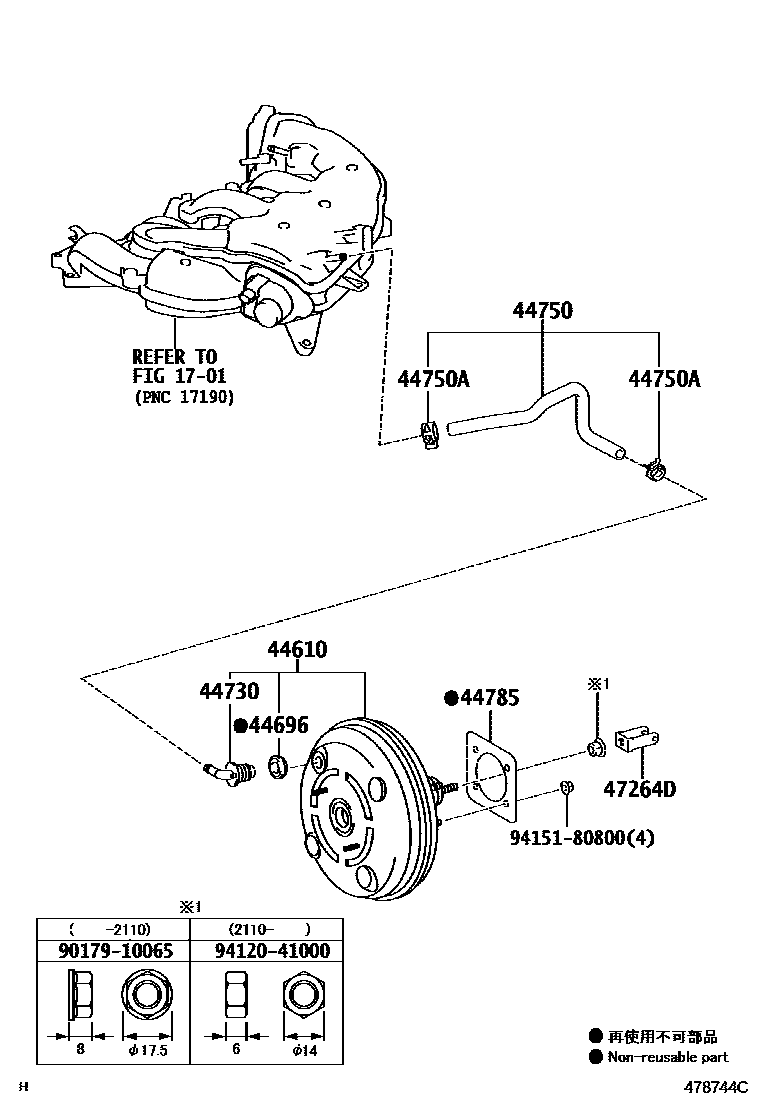

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

1701

44610BOOSTER ASSY, BRAKE

main44610-24190iGSE3#201508-201710

main44610-53370iGSE30,35201304-201508

main44610-53380iGSE31,36201304-201508

main44610-53450iASE30201508-202009

main44610-53580iASE30,GSE3#202009-202110

main44610-53600iUSE30202111

main44610-53630iASE30,GSE3#202111

44696GROMMET, CHECK VALVE

main90480-24439iGSE3#201304-202110

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iASE30201508-202003

main44730-20170iGSE3#201304-201710

main44730-30060iUSE30202111

main44730-52010iASE30,GSE3#202004-202110

44750HOSE ASSY, VACUUM

main44750-53120iGSE30,35201304-201508

main44750-53140iGSE3#201304-201710

main44750-53220iASE30201508-202110

44750ACLIP(FOR VACUUM HOSE ASSY)

main44783-30010iASE30201508-201610

NO.1:REFER ILLUST.

main90467-16014iUSE30201610-202110

main90467-16014iGSE31,36201304-201710

NO.2:REFER ILLUST.

main96133-41500iGSE3#201304-201710

NO.1:REFER ILLUST.

44785GASKET, BRAKE BOOSTER

main44785-47010iGSE3#201304-202110

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iASE30,GSE3#,USE30202306

main47264-22040iASE30,GSE3#201304-202110

main47264-63010iASE30,GSE3#,USE30202111-202305

9017910065

main90179-10065

9412041000

main94120-41000

9415180800

main94151-80800

11 parts on this diagram · 5 diagrams in section
