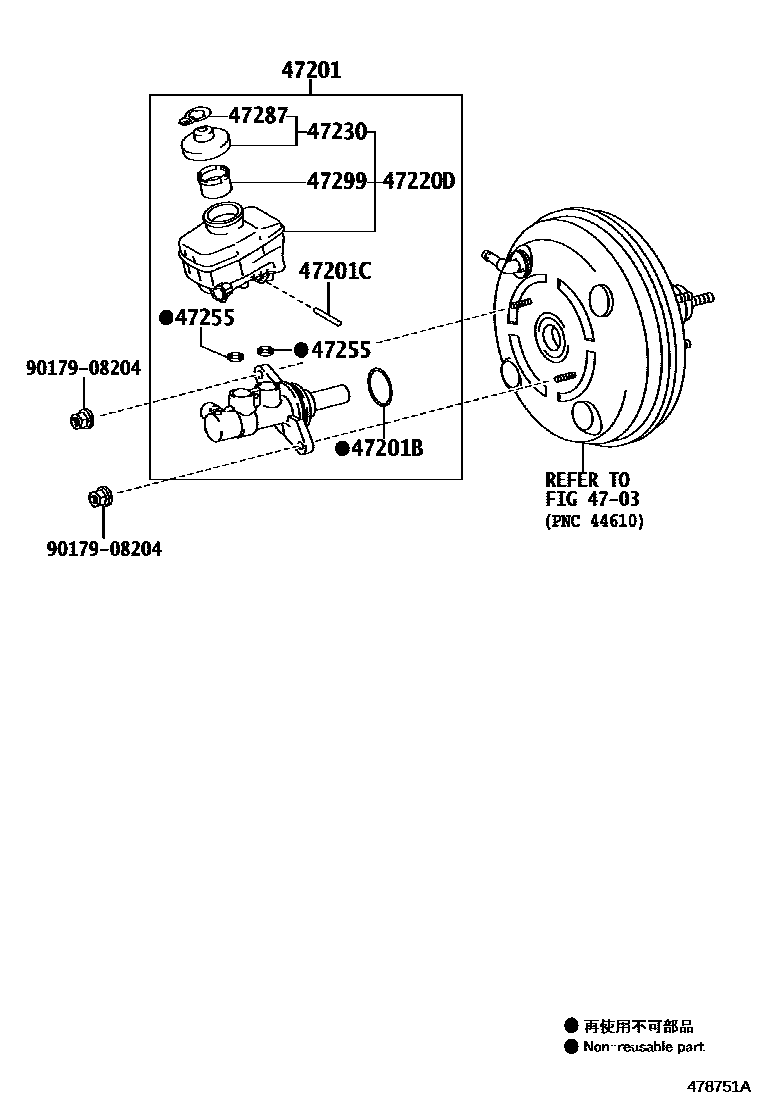

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-30822iGSE3#201304-201610

main47201-30850iGSE3#201610-201710

main47201-30870iASE30,GSE3#201610-202110

main47201-53290iASE30201508-201610

main47201-53320iASE30,GSE3#,USE30202111

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iASE30,GSE3#201304-202110

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGSE3#201304-202110

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-30220iASE30,GSE3#,USE30201304-202110

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iASE30,GSE3#201304-202110

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iASE30,GSE3#201304-202110

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iASE30,GSE3#,USE30201610-202110

main47287-20010iASE30,GSE3#201304-202009

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGSE3#201304-202110

9017908204

main90179-08204

10 parts on this diagram · 1 diagram in section
