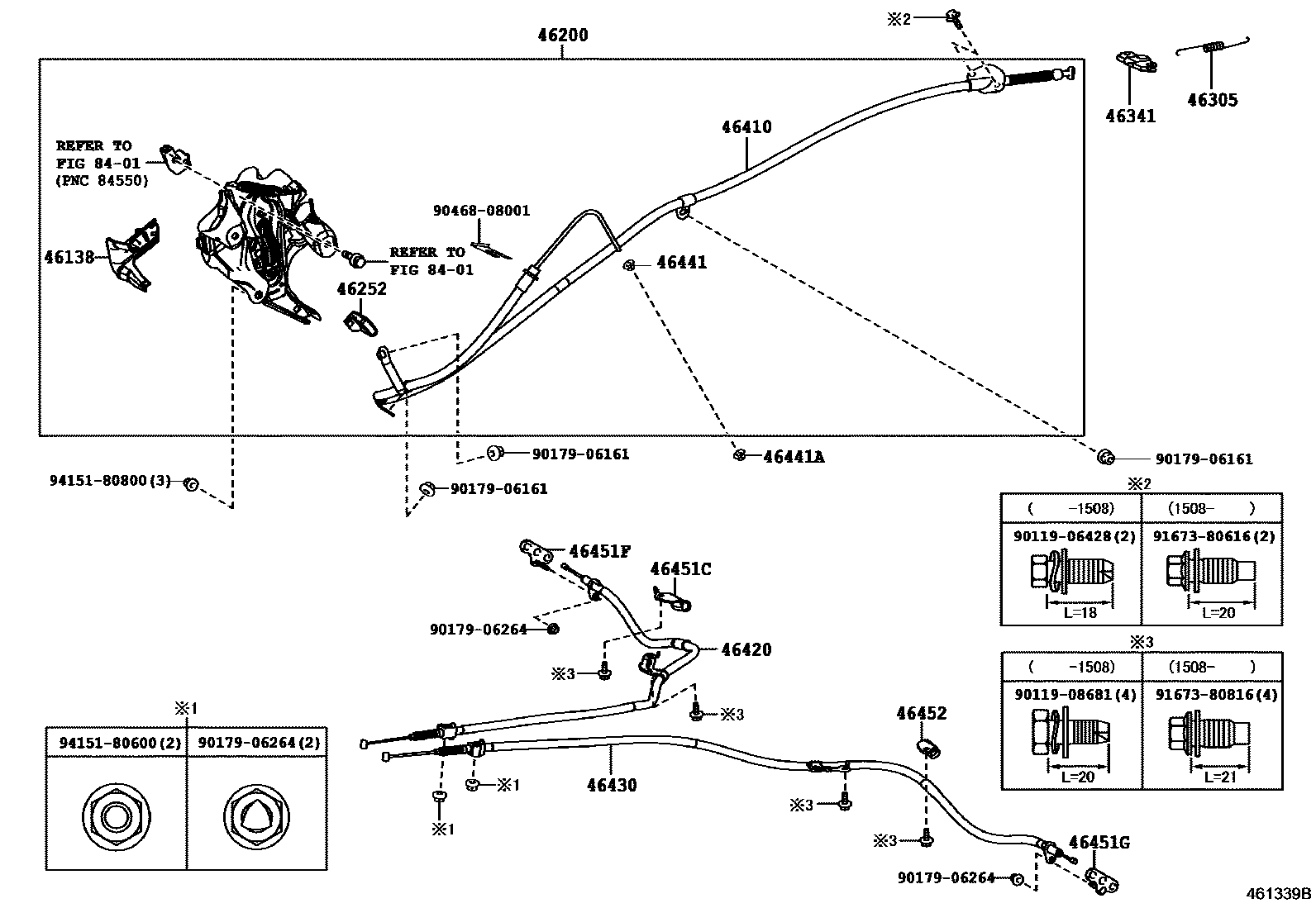

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46138PROTECTOR, PARKING BRAKE PEDAL BRACKET

main46138-53010iASE30,GSE3#201304-202009

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-53040iGSE36,37201304-202009

main46200-53060iASE30,GSE31201304-202009

46252PAD, PARKING PEDAL

main46252-22010iGSE3#201304-201404

main46252-47010iGSE3#201405-202009

46305SPRING, PARKING BRAKE RETURN W/DAMPER

main46305-53020iGSE3#201304-202009

46341EQUALIZER, PARKING BRAKE

main46341-22060iGSE3#201304-202009

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-53040iGSE30,31201304-202009

main46410-53070iGSE36,37201304-202009

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-53040iGSE3#201304-202009

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-53020iGSE3#201304-202009

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iGSE3#201304-202009

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06299iGSE3#201304-202009

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-30220iGSE3#201304-202009

46451FBRACKET, CABLE SUPPORT

main46451-30270iASE30,GSE3#201610-202009

main46451-30280iASE30,GSE3#201304-201610

46451GBRACKET, CABLE SUPPORT

main46451-30270iGSE3#201304-201610

main46451-30280iASE30,GSE3#201610-202009

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-30230iASE30,GSE3#201304-202009

8401

9011906428

main90119-06428

9011908681

main90119-08681

9017906161

main90179-06161

9017906264

main90179-06264

9046808001

main90468-08001

9167380616

main91673-80616

9167380816

main91673-80816

9415180600

main94151-80600

9415180800

main94151-80800

24 parts on this diagram · 4 diagrams in section
