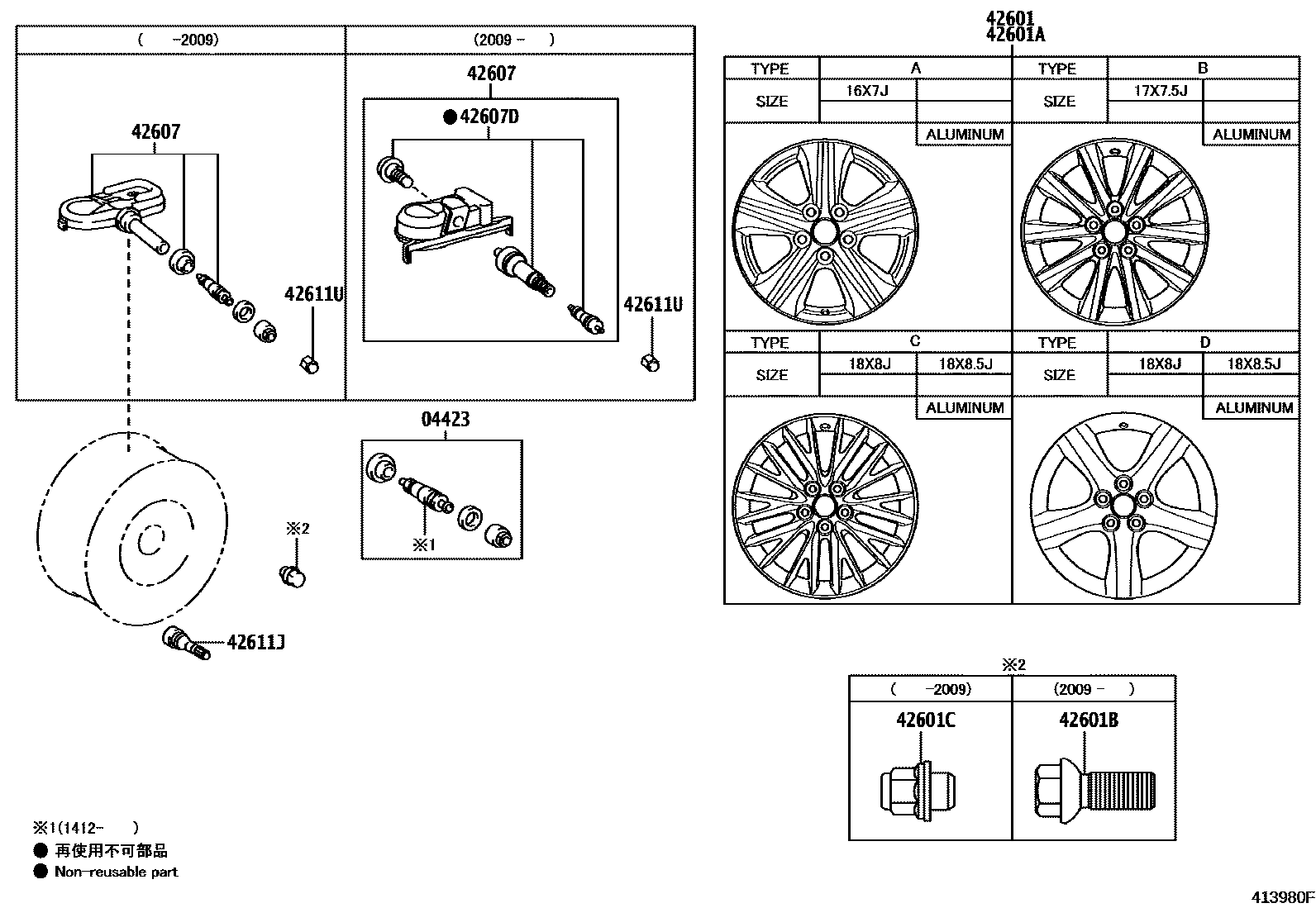

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
17X7.5J, #,TYPE B:REFER ILLUST.
18X8J, #,TIRE & DISC WHEEL-225/40R18+255/35R18,ALL SEASON,5-SPOKE,FR,T/P H:SEE ILLUST
sub42611-53540
18X8J, #,TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE,FR,T/P H:SEE ILLUST
sub42611-53540
18X8.5J, #,TIRE & DISC WHEEL-225/40R18+255/35R18,ALL SEASON,5-SPOKE,RR,T/P H:SEE ILLUST
sub42611-53560
18X8.5J, #,TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE,RR,T/P H:SEEILLUST
sub42611-53560
18X8.5J,#,TYPE I:REFER ILLUST.
19X8.5J,#,FR,T/P K:SEE ILLUST
19X9.5J,#,RR,T/P K:SEE ILLUST
19X8.5J,#,FR,T/P N:SEE ILLUST
19X9.5J,#,RR,T/P N:SEE ILLUST
18X8J, #,FR,T/P D:SEE ILLUST
19X8.5J, #,TIRE & DISC WHEEL-*739,FR,T/P K:SEE ILLUST
19X8.5J, #,FR,T/P K:SEE ILLUST
19X8.5J, #,TIRE & DISC WHEEL-235/40R19+265/35R19,SUMMER TIRE,F-SPORT,FR,T/P K:SEEILLUST
19X8.5J, #,TIRE & DISC WHEEL-235/40R19+265/35R19,ALL SEASON,F-SPORT,FR,T/P K:SEE ILLUST
19X8.5J, #,ISRAEL SPEC&TIRE & DISC WHEEL-235/40R19+265/35R19,SUMMER TIRE,F-SPORT,FR,T/P K:SEE ILLUST
19X8.5J, #,ISRAEL SPEC&TIRE & DISC WHEEL-*739,FR,T/P K:SEE ILLUST
19X9.5J, #,RR,T/P K:SEE ILLUST
19X9.5J, #,TIRE & DISC WHEEL-*739,RR,T/P K:SEE ILLUST
19X9.5J, #,TIRE & DISC WHEEL-235/40R19+265/35R19,ALL SEASON,F-SPORT,RR,T/P K:SEE ILLUST
19X9.5J, #,ISRAEL SPEC&TIRE & DISC WHEEL-*739,RR,T/P K:SEE ILLUST
19X9.5J, #,ISRAEL SPEC&TIRE & DISC WHEEL-235/40R19+265/35R19,SUMMER TIRE,F-SPORT,RR,T/P K:SEE ILLUST
19X9.5J, #,TIRE & DISC WHEEL-235/40R19+265/35R19,SUMMER TIRE,F-SPORT,RR,T/P K:SEEILLUST
19X8.5J, #,FR,T/P N:SEE ILLUST
19X9.5J, #,RR,T/P N:SEE ILLUST
19X8.5J, #,TIRE & DISC WHEEL-*739,FR,T/P K:SEE ILLUST
19X8.5J, #,FR,T/P K:SEE ILLUST
19X8.5J, #,ISRAEL SPEC&TIRE & DISC WHEEL-*739,FR,T/P K:SEE ILLUST
19X8.5J, #,TIRE & DISC WHEEL- 235/40R19,SUMMER TIRE,TYPE K:REFER ILLUST.
19X8.5J, #,TIRE & DISC WHEEL- 235/40R19,ALL SEASON TIRE,TYPE K:REFER ILLUST.
19X8.5J, #,TIRE & DISC WHEEL-235/40R19+265/35R19,ALL SEASON,F-SPORT,FR,T/P K:SEE ILLUST
19X9.5J, #,RR,T/P K:SEE ILLUST
19X9.5J, #,TIRE & DISC WHEEL-*739,RR,T/P K:SEE ILLUST
19X9.5J, #,ISRAEL SPEC&TIRE & DISC WHEEL-*739,RR,T/P K:SEE ILLUST
19X9.5J, #,TIRE & DISC WHEEL-235/40R19+265/35R19,ALL SEASON,F-SPORT,RR,T/P K:SEE ILLUST
42601AWHEEL, DISC (FOR SPARE)
17X4T,TYPE F:REFER ILLUST.
17X4T,TYPE M:REFER ILLUST.
18X4T,TYPE O:REFER ILLUST.
42601BBOLT, HUB (FOR AXLE)
42601CNUT, HUB (FOR AXLE)
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607DVALVE, TIRE PRESSURE MONITOR
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
9 parts on this diagram · 4 diagrams in section
