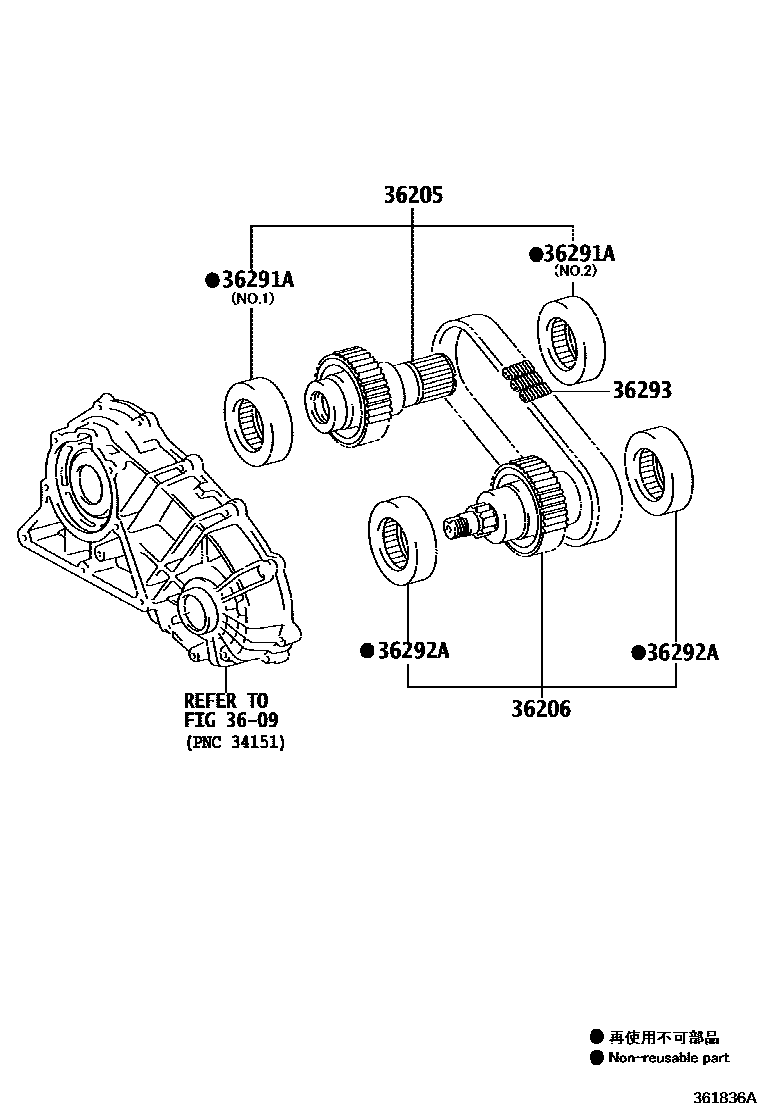

TRANSFER GEAR

3609

36205SPROCKET SUB-ASSY, TRANSFER DRIVE

main36205-30030iGSE36,37201304-202110

36206SLEEVE SUB-ASSY, TRNSFR FR DRIVE CLUTCH

main36206-30030iGSE36,37201304-202110

36291ABEARING (FOR TRANSFER DRIVE SPROCKET)

main90363-55002iGSE35,36201304-202110

NO.2:REFER ILLUST.

main90363-55004iGSE36,37201304-202110

NO.1:REFER ILLUST.

36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)

main90363-55004iGSE35,36201304-202110

36293CHAIN, TRANSFER FRONT DRIVE

main36293-30020iGSE35,36201304-202110

6 parts on this diagram · 1 diagram in section
