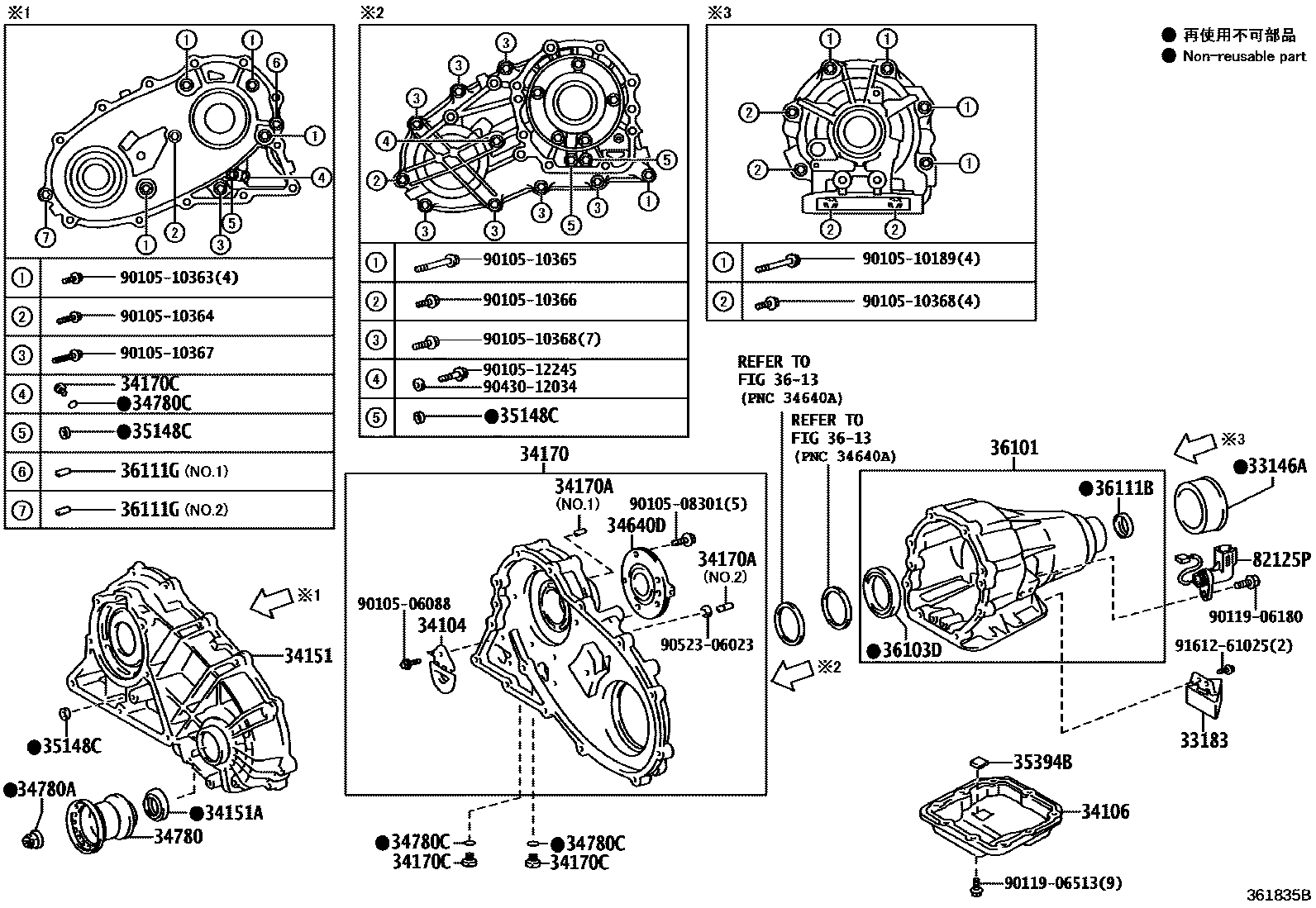

TRANSFER CASE & EXTENSION HOUSING
33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST
33183DAMPER, TRANSFER DYNAMIC
34104VALVE SUB-ASSY, TRANSFER BAFFLE
34106PAN SUB-ASSY, TRANSFER OIL
34151CASE, TRANSFER CHAIN, FRONT
34151ASEAL, OIL (FOR TRANSFER CHAIN CASE)
34170CASE ASSY, TRANSFER CHAIN, REAR
34170APIN, STRAIGHT (FOR TRANSFER CHAIN CASE)
L=21,OD=10,NO.2:REFER ILLUST.
L=23,OD=10,NO.1:REFER ILLUST.
34170CPLUG (FOR TRANSFER CHAIN CASE)
34640DSUPPORT ASSY, TRANSFER CENTER
34780YOKE ASSY, FLANGE
34780ANUT (FOR FLANGE YOKE)
34780CRING, O (FOR FLANGE YOKE)
35148CGASKET, GOVERNOR APPLY (FOR ATM TRANSFER CHAIN CASE)
35394BMAGNET, OIL CLEANER (FOR TRANSFER)
36101CASE SUB-ASSY, TRANSFER
36103DBEARING (FOR TRANSFER CASE)
OD=85
36111BSEAL, OIL (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=23,OD=10,NO.1:REFER ILLUST.
L=18,OD=13,NO.2:REFER ILLUST.
3613
82125PTRANSMISSION WIRE(FOR TRANSFER)
9010506088
9010508301
9010510189
9010510363
9010510364
9010510365
9010510366
9010510367
9010510368
9010512245
9011906180
9011906513
9043012034
9052306023
9161261025
36 parts on this diagram · 1 diagram in section
