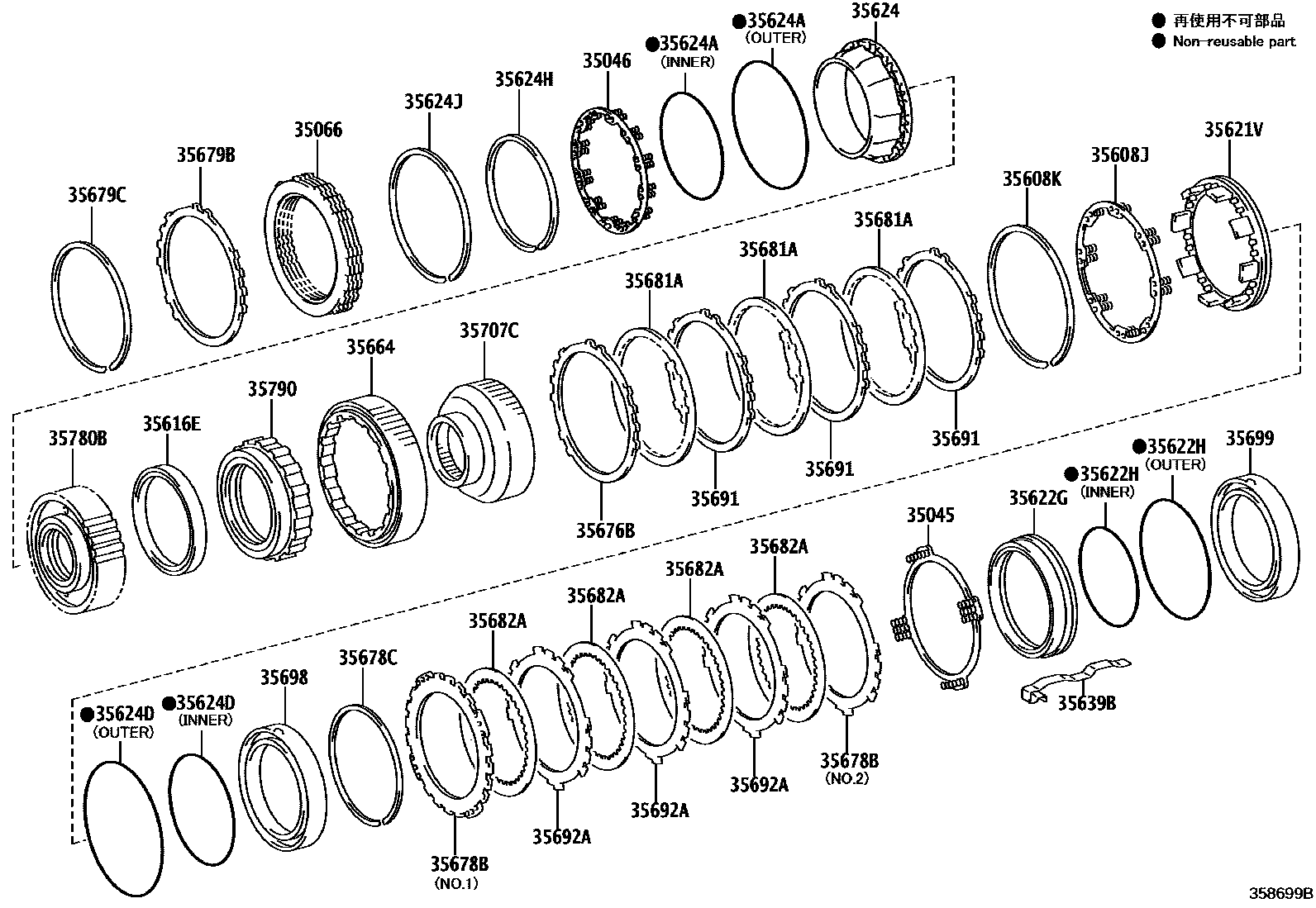

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35045SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2
35046SPRING SUB-ASSY, BRAKE PISTON RETURN, NO.3
35066DISC SET, 2ND BRAKE
35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608JSPRING SUB-ASSY, BRAKE PISTON RETURN
35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
35616EWASHER,CLUTCH DRUM THRUST
35622GPISTON, BRAKE, NO.2
35622HRING, O (FOR BRAKE PISTON NO.2)
NO.2:REFER ILLUST.
OUTER
INNER
OUTER
NO.3:REFER ILLUST.
INNER
NO.1:REFER ILLUST.
35624PISTON, 2ND BRAKE
35624ARING, O (FOR 2ND BRAKE PISTON)
INNER
OUTER
OUTER
INNER
35624DRING, O (FOR BRAKE PISTON NO.4)
INNER
OUTER
INNER
OUTER
INNER
35624HRING, SNAP (FOR 2ND BRAKE PISTON)
35624JRING, HOLE SNAP (FOR 2ND BRAKE PISTON)
35639BSPRING, BRAKE PLATE STOPPER
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35676BFLANGE, BRAKE, NO.1
T=2.0,MARK 0
T=2.2,MARK 1
T=2.4,MARK 2
T=2.6,MARK 3
T=4.5,MARK 0
T=4.6,MARK 1
T=4.7,MARK 2
T=4.8,MARK 3
T=4.9,MARK 4
T=5.0,MARK 5
T=5.1,MARK 6
T=5.2,MARK 7
T=5.3,MARK 8
T=2.0,MARK 0
T=2.2,MARK 1
T=2.4,MARK 2
T=2.6,MARK 3
35678BFLANGE, BRAKE, NO.2
T=4.6,NO.1:REFER ILLUST.
T=2.0,NO.2:REFER ILLUST.
T=2.1,NO.2:REFER ILLUST.
T=2.2,NO.2:REFER ILLUST.
T=2.3,NO.2:REFER ILLUST.
T=2.4,NO.2:REFER ILLUST.
T=2.5,NO.2:REFER ILLUST.
T=2.6,NO.2:REFER ILLUST.
T=2.7,NO.2:REFER ILLUST.
T=2.0,MARK 0
T=2.1,MARK 1
T=2.2,MARK 2
T=2.3,MARK 3
T=2.4,MARK 4
T=2.5,MARK 5
T=2.6,MARK 6
T=2.7,MARK 7
T=2.8,MARK 8
T=2.8,NO.2:REFER ILLUST.
T=2.9,NO.2:REFER ILLUST.
T=3.0,NO.2:REFER ILLUST.
T=4.6,NO.1:REFER ILLUST.
T=2.0 MARK 0,NO.2:REFER ILLUST.
T=2.1 MARK 1,NO.2:REFER ILLUST.
T=2.2 MARK 2,NO.2:REFER ILLUST.
T=2.3 MARK 3,NO.2:REFER ILLUST.
T=2.4 MARK 4,NO.2:REFER ILLUST.
T=2.5 MARK 5,NO.2:REFER ILLUST.
T=2.6 MARK 6,NO.2:REFER ILLUST.
T=2.7 MARK 7,NO.2:REFER ILLUST.
35678CRING, SNAP (FOR BRAKE NO.2)
35679CRING, SNAP (FOR BRAKE NO.3)
35681ADISC, BRAKE, NO.1
35691PLATE, BRAKE, NO.1
35692APLATE, BRAKE, NO.2
35707CRACE SUB-ASSY, 1 WAY CLUTCH, INNER
35780BCLUTCH ASSY, 1 WAY N0.2
31 parts on this diagram · 4 diagrams in section
