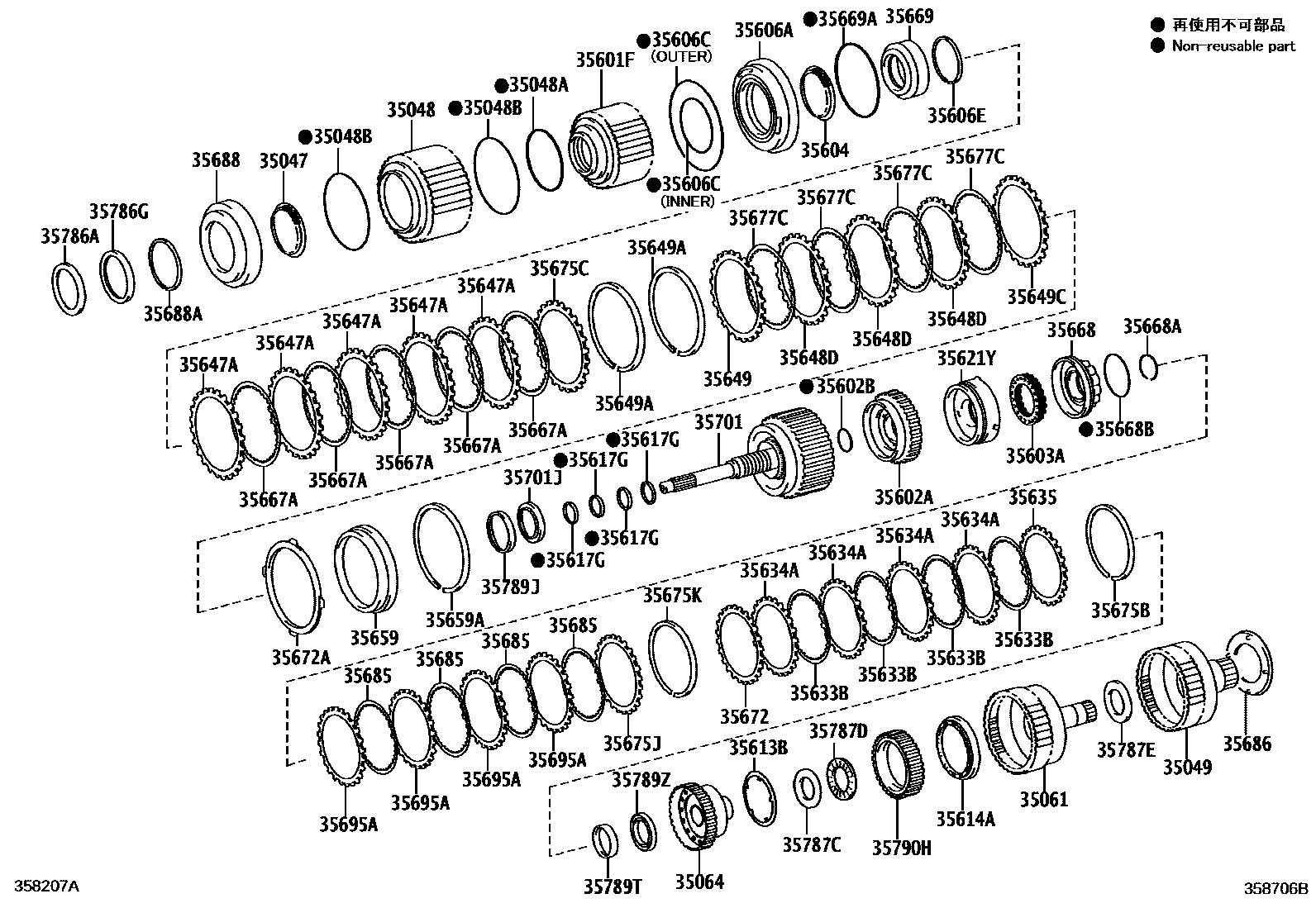

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35047SPRING SUB-ASSY, REVERSE CLUTCH RETURN
35048PISTON SUB-ASSY, REVERSE CLUTCH
35048ARING, O (FOR REVERSE CLUTCH PISTON)
OUTER
INNER
35048BRING, O (FOR REVERSE CLUTCH PISTON)
35049HUB SUB-ASSY, REVERSE CLUTCH
35061HUB SUB-ASSY, FORWARD CLUTCH
35064HUB SUB-ASSY, COAST CLUTCH
35601DRUM SUB-ASSY, CLUTCH
35601FDRUM SUB-ASSY, REVERSE CLUTCH
35602APISTON SUB-ASSY, FORWARD CLUTCH
35602BRING, O (FOR FORWARD CLUTCH PISTON)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35606APISTON SUB-ASSY, DIRECT CLUTCH
35606CRING, O (FOR DIRECT CLUTCH PISTON)
INNER
INNER
INNER
OUTER
OUTER
35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)
35613RING, CLUTCH PISTON OIL SEAL, OUTER
35613BWASHER, CLUTCH HUB THRUST, NO.2
35614AWASHER, CLUTCH HUB THRUST, NO.3
35617GRING, CLUTCH DRUM OIL SEAL
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
T=1.8
T=2.4
T=2.0
35635FLANGE, FORWARD CLUTCH
T=3.0,MARK 0
T=3.1,MARK 1
T=3.2,MARK 2
T=3.3,MARK 3
T=3.4,MARK 4
T=3.5,MARK 5
T=3.6,MARK 6
T=3.7,MARK 7
T=3.8,MARK 8
T=3.9,MARK 9
T=4.4,MARK 0
T=4.5,MARK 1
T=4.6,MARK 2
T=4.7,MARK 3
T=4.8,MARK 4
T=4.9,MARK 5
T=5.0,MARK 6
T=5.1,MARK 7
T=5.2,MARK 8
T=3.0,MARK 0
T=3.1,MARK 1
T=3.2,MARK 2
T=3.3,MARK 3
T=3.4,MARK 4
T=3.5,MARK 5
T=3.6,MARK 6
T=3.7,MARK 7
T=3.8,MARK 8
T=3.9,MARK 9
T=4.0,MARK A
35647APLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35649FLANGE, REVERSE CLUTCH
T=3.0,MARK 6
T=3.0,MARK 0
T=3.1,MARK 1
T=3.2,MARK 2
T=3.3,MARK 3
T=3.4,MARK 4
T=3.5,MARK 5
T=3.6,MARK 6
T=3.7,MARK 7
T=3.8,MARK 8
T=3.0,MARK 2
T=3.1.MARK 3
T=3.2,MARK 4
T=3.3,MARK 5
T=3.4,MARK 6
T=3.5,MARK 7
T=3.6,MARK 8
T=3.7,MARK 9
T=3.8,MARK A
35649ARING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE)
35649CFLANGE, REVERSE CLUTCH
T=2.4,MARK 0
T=2.5,MARK 1
T=2.6,MARK 2
T=2.7,MARK 3
T=2.8,MARK 4
T=2.9,MARK 5
T=3.0,MARK 6
T=3.1,MARK 7
T=3.2,MARK 8
T=3.3,MARK 9
T=3.4,MARK A
T=3.5,MARK B
T=2.8,MARK 0
T=2.9,MARK 1
T=3.0,MARK 2
T=3.1.MARK 3
T=3.2,MARK 4
T=3.3,MARK 5
T=3.4,MARK 6
T=3.5,MARK 7
T=3.6,MARK 8
T=3.7,MARK 9
T=3.8,MARK A
35659SLEEVE, REVERSE CLUTCH REACTION
35659ARING, SNAP (FOR REVERSE CLUTCH REACTION SLEEVE)
35668BALANCER, CLUTCH, NO.1
35668ARING, SNAP(FOR CLUTCH BALANCER)
35668BRING, O(FOR CLUTCH BALANCER)
35669BALANCER, CLUTCH, NO.2
35669ARING, O (FOR CLUTCH BALANCER NO.2)
35672PLATE, CLUTCH CUSHION
35672APLATE, CLUTCH CUSHION (FOR DIRECT MULTIPLE DISC CLUTCH)
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
35675CFLANGE, DIRECT CLUTCH
T=4.0,MARK 40
T=4.2,MARK 42
T=4.4,MARK 44
T=4.6,MARK 46
T=4.8,MARK 48
T=4.1,MARK 41
T=4.3,MARK 43
T=4.5,MARK 45
T=4.7,MARK 47
T=3.0,MARK 0
T=3.1,MARK 1
T=3.2,MARK 2
T=3.3,MARK 3
T=3.4,MARK 4
T=3.5,MARK 5
T=3.6,MARK 6
T=3.7,MARK 7
T=3.8,MARK 8
35675JFLANGE, COAST CLUTCH
T=3.0,MARK 0
T=3.1,MARK 1
T=3.2,MARK 2
T=3.3,MARK 3
T=3.4,MARK 4
T=3.5,MARK 5
T=3.6,MARK 6
T=3.7,MARK 7
T=3.8,MARK 8
T=3.9,MARK 9
T=3.0
T=3.1
T=3.2
T=3.3
T=3.4
T=3.5
T=3.6
T=3.7
T=3.8
T=3.9
35675KRING, SNAP (FOR COAST CLUTCH FLANGE)
35686WASHER, CLUTCH DRUM THRUST (FOR INPUT SHAFT)
35688BALANCER, CLUTCH, NO.3
35688ARING, SNAP (FOR REVERSE CLUTCH RETURN SPRING)
35701JBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)
35786ARACE, THRUST BEARING, NO.1
35786GBEARING,THRUST NEEDLE ROLLER
35787CRACE, THRUST BEARING, NO.2
35787DBEARING, THRUST NEEDLE ROLLER
35787EBEARING, THRUST NEEDLE ROLLER
35789JRACE, THRUST BEARING (FOR INPUT SHAFT FRONT)
35789TRACE, THRUST BEARING (INPUT SHAFT REAR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35789ZBEARING, THRUST NEEDLE ROLLER
35790HCLUTCH ASSY, 1WAY NO.4
