ALTERNATOR

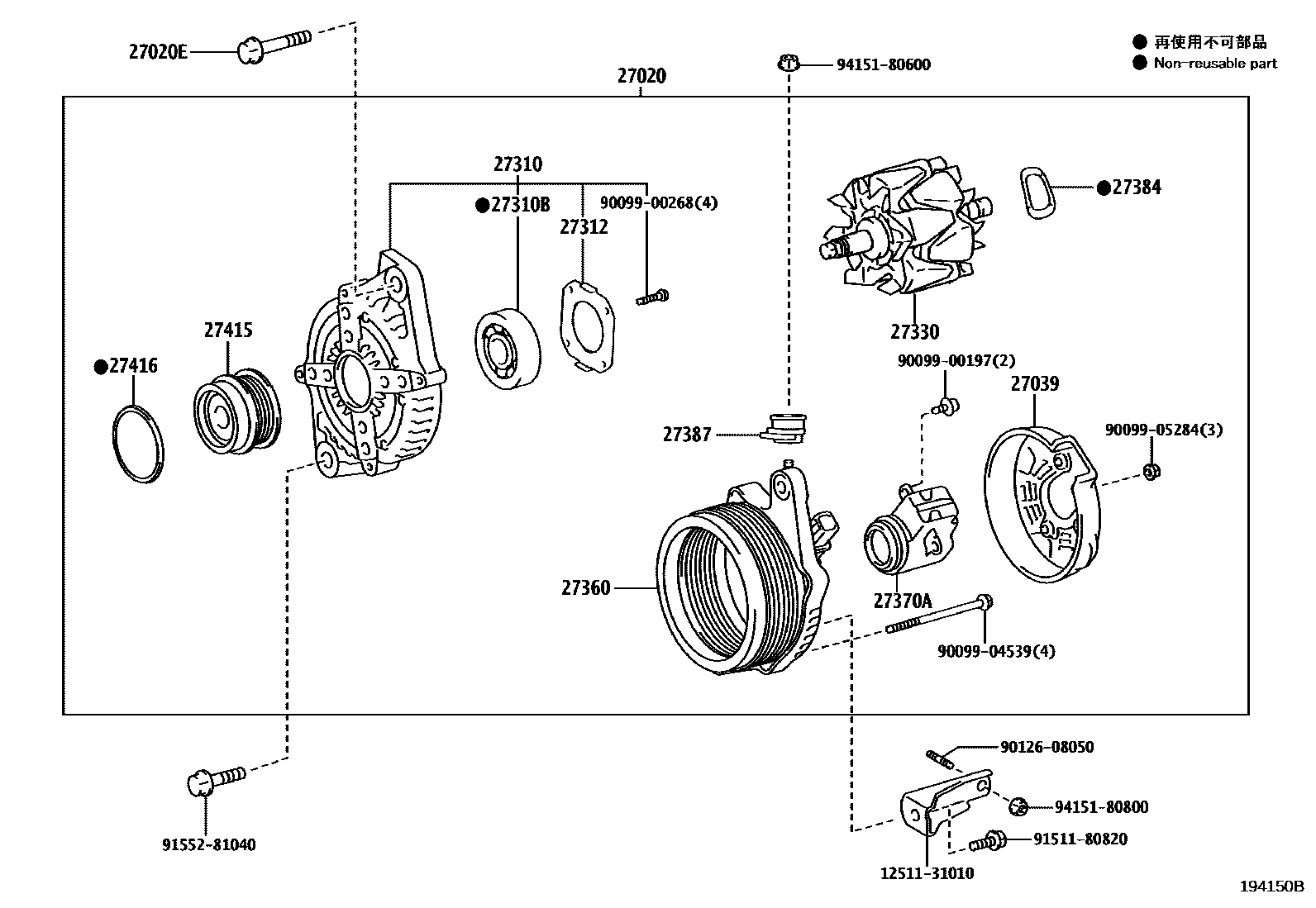

Parts diagram
27020ALTERNATOR ASSY
main27060-31212i201304-201710
12V 150A
main27060-31300i201710-202110
12V 150A
main27060-36101i202009-202110
12V 150A
main27060-36130i202009-202110
12V 180A,ISRAEL SPEC
main27060-36130i201508-202009
12V 180A
main27060-36130i202111
12V 180A,ISRAEL SPEC&FAN & COUPLING-300W
main27060-36130i202209
12V 180A,MEXICO SPEC&FAN & COUPLING-300W
main27060-38120i202111
12V 180A
27020EBOLT(FOR ALTERNATOR)
main91552-81070i201304-201710
27039COVER, ALTERNATOR REAR END
main27039-31390i201304-202110
main27039-31570i201710-202110
main27039-38150i201508-202009
main27039-38150i202009-202110
ISRAEL SPEC
main27039-38150i202111
ISRAEL SPEC&FAN & COUPLING-300W
main27039-38150i202209
MEXICO SPEC&FAN & COUPLING-300W
27310FRAME ASSY, DRIVE END, ALTERNATOR
main27310-31220i201304-201710
main27310-31570i201710-202110
main27310-36180i202009-202110
main27310-36210i201508-202009
main27310-36210i202009-202110
ISRAEL SPEC
main27310-36210i202111
ISRAEL SPEC&FAN & COUPLING-300W
main27310-36210i202209
MEXICO SPEC&FAN & COUPLING-300W
main27310-38130i202111
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
main90099-10223i201304-202110
main90099-10226i202111
ISRAEL SPEC&FAN & COUPLING-300W
main90099-10226i202009-202110
ISRAEL SPEC
main90099-10226i202209
MEXICO SPEC&FAN & COUPLING-300W
main90099-10226i201508-202009
27312PLATE, RETAINER
main27312-42010i201508-202009
main27312-42010i202009-202110
ISRAEL SPEC
main27312-42010i202111
ISRAEL SPEC&FAN & COUPLING-300W
main27312-42010i202209
MEXICO SPEC&FAN & COUPLING-300W
main27312-72100i201304-202110
27330ROTOR ASSY, ALTERNATOR
main27330-38140i201508-202009
main27330-38140i202209
MEXICO SPEC&FAN & COUPLING-300W
main27330-38140i202111
ISRAEL SPEC&FAN & COUPLING-300W
main27330-38140i202009-202110
ISRAEL SPEC
main27330-58460i201304-202110
27360COIL ASSY, ALTERNATOR
main27360-31420i201304-201710
main27360-31570i201710-202110
main27360-36181i202009-202110
main27360-36210i202209
MEXICO SPEC&FAN & COUPLING-300W
main27360-36210i201508-202009
main27360-36210i202111
ISRAEL SPEC&FAN & COUPLING-300W
main27360-36210i202009-202110
ISRAEL SPEC
main27360-38210i202111
27370AHOLDER ASSY, ALTERNATOR BRUSH
main27370-27060i201508-202110
main27370-31220i201304-202110
main27370-58460i202111
27384WASHER
main27384-38130i201508-202009
main27384-38130i202009-202110
ISRAEL SPEC
main27384-38130i202111
ISRAEL SPEC&FAN & COUPLING-300W
main27384-38130i202209
MEXICO SPEC&FAN & COUPLING-300W
main27384-50030i201304-202110
27387INSULATOR, TERMINAL
main27387-20130i201304-202110
main27387-31580i201710-202110
main27387-38130i202209
MEXICO SPEC&FAN & COUPLING-300W
main27387-38130i201508-202009
main27387-38130i202009-202110
ISRAEL SPEC
main27387-38130i202111
ISRAEL SPEC&FAN & COUPLING-300W
27415PULLEY, ALTERNATOR W/CLUTCH
main27415-0P020i201710-202110
main27415-0W130i201304-201306
sub27415-0W131
main27415-0W131i201307-201710
main27415-0W170i202009-202110
main27415-0W230i202111
FAN & COUPLING-300W
main27415-0W230i201508-202009
main27415-0W230i202009-202110
ISRAEL SPEC
main27415-38010i202111
27416CAP, ALTERNATOR PULLEY
main27416-0W050i201304-202110
1251131010BRACKET, ALTERNATOR, NO.1
main12511-31010
9009900197
main90099-00197
9009900268
main90099-00268
9009904539
main90099-04539
9009905284
main90099-05284
9012608050
main90126-08050
9151180820
main91511-80820
9155281040
main91552-81040
9415180600
main94151-80600
9415180800
main94151-80800

23 parts on this diagram · 5 diagrams in section
