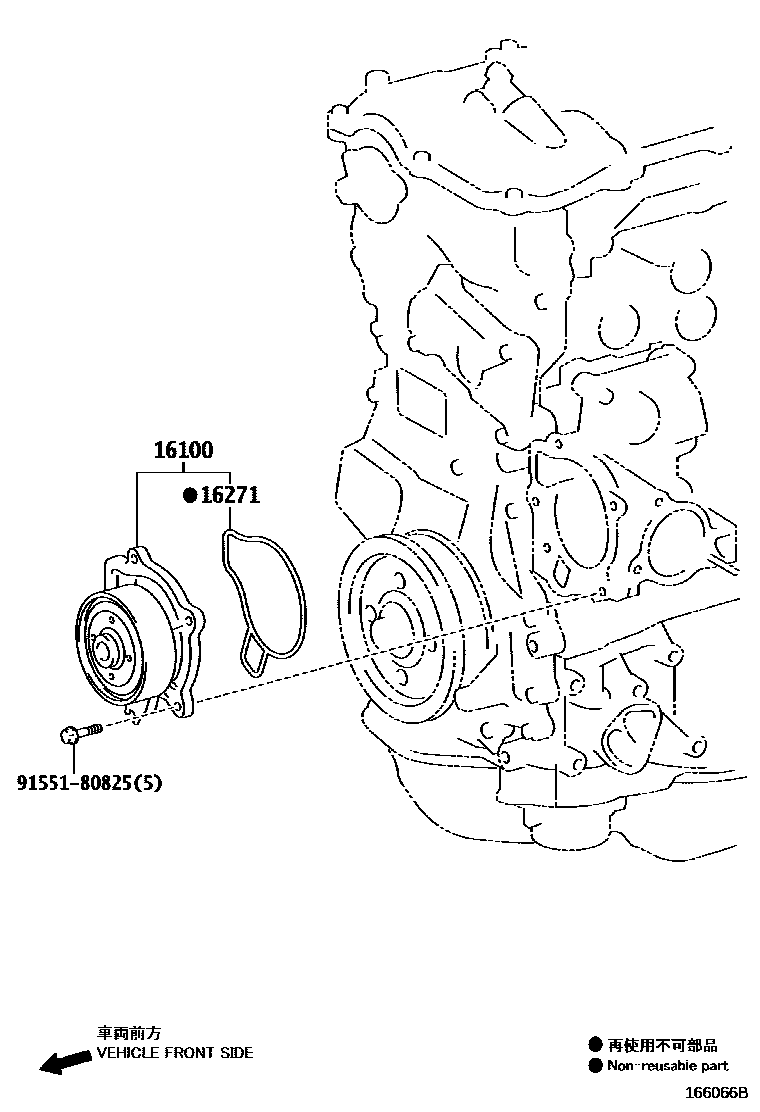

WATER PUMP

0001 1 0002 1 0003 1 0004 1

16100PUMP ASSY, ENGINE WATER

main16100-39436i2GRF..GSE3#¥13,400201304-201710

main16100-39506i2URGSE..USE30¥12,800202111

main16100-39595i8ARFTS..ASE30¥9,500201508-202110

main16100-39615i2GRF..GSE3#¥9,500201710-202004

sub16100-39616¥9,500

main16100-39616i2GRFKS..GSE3#¥9,500202004-202110

16271GASKET, WATER PUMP

main16271-31020i2GRF..GSE3#¥2,320201304-201710

main16271-31050i2GRFKS..GSE3#¥1,740201710-202110

main16271-36040i8ARFTS..ASE30¥340201508-202110

main16271-38010i2URGSE..USE30¥1,740202111

9155180825

main91551-80825¥80

3 parts on this diagram · 4 diagrams in section
