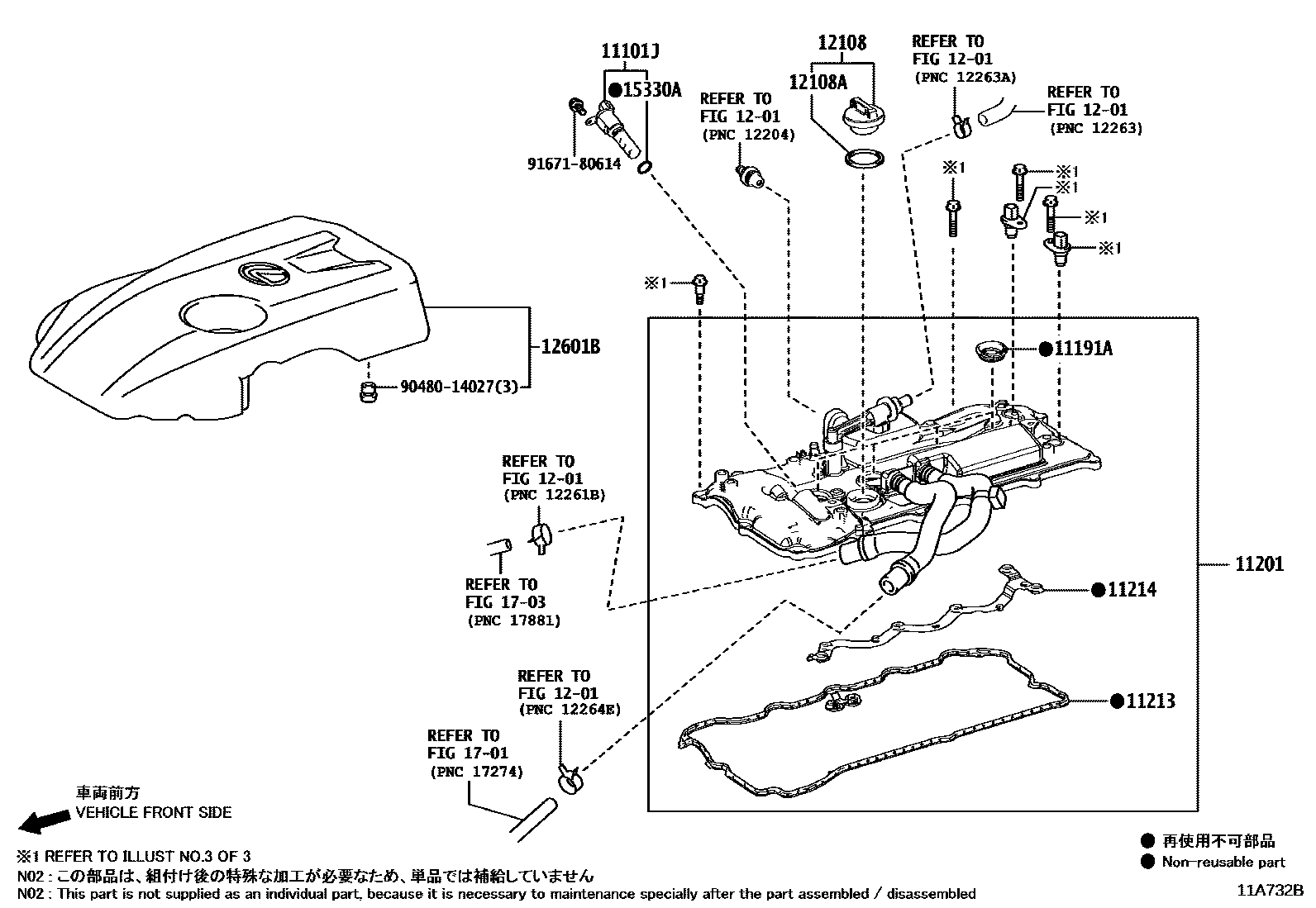

CYLINDER HEAD

0001 1HEAD COVER 0002 1CAMSHAFT HOUSING & CYLINDER H0003 1FITTING PARTS 0004 1 0005 1 0006 1 0007 1CYLINDER HEAD(LH BANK) 0008 1CYLINDER HEAD(RH BANK) 0009 1CYLINDER HEAD COVER 0010 1ENGINE COVER & V BANK COVER 0011 1CYLINDER HEAD(LH BANK) 0012 1CYLINDER HEAD(RH BANK) 0013 1CYLINDER HEAD COVER 0014 1ENGINE COVER & V BANK COVER

11101HEAD SUB-ASSY, CYLINDER

main11101-39596i4GRFSE..GSE30,35201304-201402

sub11101-39597

main11101-39597i4GRFSE..GSE30,35201402-201508

main11101-39607i2GRF..GSE31,36201304-201402

sub11101-39608

main11101-39608i2GRF..GSE31,36201402-201411

sub11101-39855

main11101-39836i2URGSE..USE30202111

main11101-39855i2GRF..GSE31,36201411-201710

main11101-39885i8ARFTS..ASE30201508-201708

sub11101-39886

sub13715-36041

main11101-39886i8ARFTS..ASE30201708-202003

sub11101-39887

main11101-39887i8ARFTS..ASE30202003-202403

main11101-80001i2GRF..GSE3#201710-202208

sub11101-80017

main11101-80017i2GRFKS..GSE3#202208

main11101-80019i8ARFTS..ASE30202403

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-37010i8ARFTS..ASE30201508-202110

11191AGASKET(FOR SPARK PLUG TUBE)

main11193-31010i8ARFTS..ASE30201508-202110

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-31232i2GRF..GSE3#201304-201710

main11201-31301i2GRF..GSE3#201710-201909

sub11201-31302

main11201-31302i2GRFKS..GSE3#201910-202110

main11201-38092i2URGSE..USE30202111-202203

sub11201-38093

main11201-38093i2URGSE..USE30202204

main11210-36020i8ARFTS..ASE30201508-202110

11213GASKET, CYLINDER HEAD COVER

main11213-31040i2GRF..GSE3#201304-201710

main11213-31070i2GRF..GSE3#201710-201909

sub11213-31090

main11213-31090i2GRF..GSE3#201910-202110

main11213-36050i8ARFTS..ASE30201508-202110

main11213-38040i2URGSE..USE30202111

11214GASKET, CYLINDER HEAD COVER, NO.2

main11214-31020i2GRF..GSE3#201304-201710

main11214-31050i2GRF..GSE3#201710-201909

sub11214-31070

main11214-31070i2GRF..GSE3#201910-202110

main11214-36020i8ARFTS..ASE30201508-202110

main11214-38030i2URGSE..USE30202111

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-21010i2GRF..GSE31,36201304-201504

KOREA SPEC

main12180-31010i8ARFTS..ASE30201304-202110

main12180-38010i4GRFSE..GSE30201505-201508

KOREA SPEC

main12180-38010i2GRF..GSE3#201508-202110

main12180-38030i2URGSE..USE30202111-202209

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001i2GRFKS..GSE3#201304-202110

main90430-37140i4GRFSE..GSE30201304-201505

KOREA SPEC

12601BCOVER SUB-ASSY, ENGINE, NO.1

main12601-31040i2GRFKS..GSE3#201710-202307

NO.2

sub12601-31041

main12601-31041i2GRFKS..GSE3#202308

NO.2

main12601-31050i2GRFKS..GSE3#201710-202110

NO.1

main12601-36220i8ARFTS..ASE30201508-201606

sub12601-36221

main12601-36221i8ARFTS..ASE30201607-202009

main12601-36222i8ARFTS..ASE30202009-202110

main12601-38040i2URGSE..USE30202111

15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90099-14137i8ARFTS..ASE30201304-202110

1701

1703

9048014027

main90480-14027

9167180614

main91671-80614
