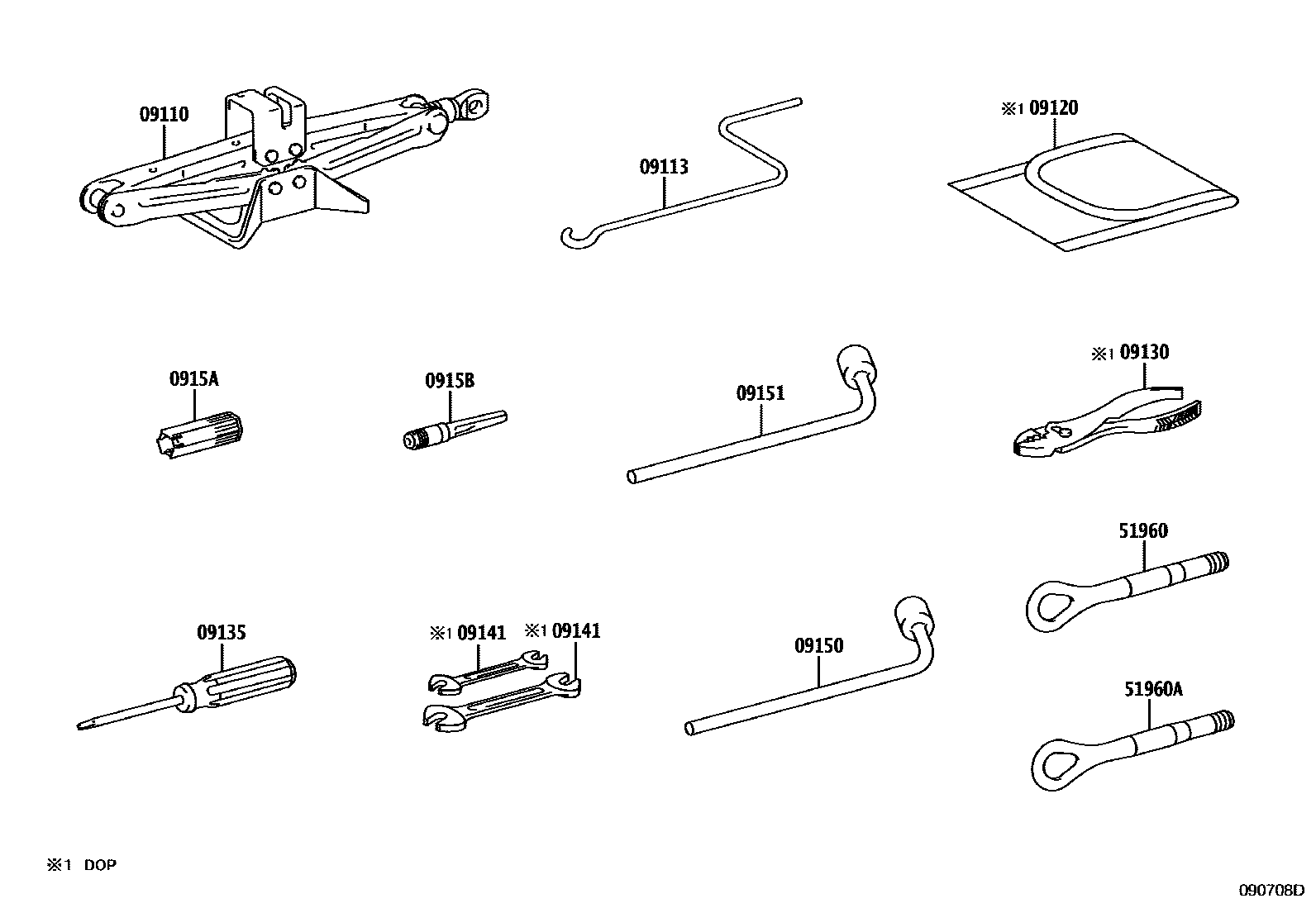

STANDARD TOOL

09110JACK ASSY

main09111-30160iGSE3#201304-201512

sub09111-30181

main09111-30180iASE30,GSE3#201601-202109

sub09111-30181

main09111-30181iASE30,GSE3#,USE30202111

09113HANDLE, JACK

main09113-13040iGSE3#201304-202110

09120BAG, TOOL

main09120-24020

09130PLIERS

main09130-50040

09135DRIVER, SCREW

main99915-10700iGSE3#201304-202110

09141SPANNER

main09141-60010

main09141-60020

09150WRENCH, HUB NUT BOX

main09150-26010iGSE3#201304-202009

09151WRENCH, HUB BOLT BOX

main09151-53010iASE30,GSE3#202009-202110

0915ASOCKET, HUB BOLT TEMPORARY SETTING

main0915A-53010iASE30,GSE3#202009-202110

0915BPIN, WHEEL GUIDE

main0915B-53010iASE30,GSE3#202009-202110

51960HOOK ASSY, FRONT

main51961-30020iGSE3#201304-202009

main51961-53010iASE30,GSE3#202009-202110

51960AHOOK ASSY, REAR

main51961-53010iUSE30202111

12 parts on this diagram · 1 diagram in section
