HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
HEAD LAMP CLEANER-WITH
KOREA SPEC
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
HEAD LAMP CLEANER-WITH
KOREA SPEC
85271HOSE, HEADLAMP CLEANER, NO.1
KOREA SPEC
HEAD LAMP CLEANER-WITH
85271AHOSE, HEADLAMP CLEANER, NO.2
KOREA SPEC
HEAD LAMP CLEANER-WITH
85271BHOSE, HEADLAMP CLEANER, NO.3
L=360
L=360,KOREA SPEC
L=360,HEAD LAMP CLEANER-WITH
85271CHOSE, HEADLAMP CLEANER, NO.4
L=200,KOREA SPEC
L=200
L=200,HEAD LAMP CLEANER-WITH
85271DHOSE, HEADLAMP CLEANER, NO.5
L=1200
L=1200,KOREA SPEC
L=1200,HEAD LAMP CLEANER-WITH
85271EHOSE, HEADLAMP CLEANER, NO.6
L=50
L=50,KOREA SPEC
L=50,HEAD LAMP CLEANER-WITH
85271GHOSE, HEAD LAMP
85279AJOINT, HEADLAMP CLEANER HOSE
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
KOREA SPEC
HEAD LAMP CLEANER-WITH
85330BBUSH, HEADLAMP CLEANER WASHER JAR
KOREA SPEC
HEAD LAMP CLEANER-WITH
85341NOZZLE, HEADLAMP CLEANER WASHER
HEAD LAMP CLEANER-WITH,BLUISH PEARL CS.,074,RH
sub85044-53040
HEAD LAMP CLEANER-WITH,STARLIGHT BLACK GF.,217,RH
sub85044-53040
HEAD LAMP CLEANER-WITH,SILVERY BLUE ME.,8U9,RH
sub85044-53040
HEAD LAMP CLEANER-WITH,LAPIS LAZULI MC.,8V3,RH
sub85044-53040
HEAD LAMP CLEANER-WITH,BLUISH PEARL CS.,074,LH
sub85045-53040
HEAD LAMP CLEANER-WITH,STARLIGHT BLACK GF.,217,LH
sub85045-53040
HEAD LAMP CLEANER-WITH,SILVERY BLUE ME.,8U9,LH
sub85045-53040
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
KOREA SPEC
HEAD LAMP CLEANER-WITH
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
KOREA SPEC
HEAD LAMP CLEANER-WITH
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
HEAD LAMP CLEANER-WITH
KOREA SPEC
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
85348ZJOINT, HEADLAMP CLEANER HOSE, NO.5
85372AHOSE, HEADLAMP CLEANER (FROM JOINT TO JOINT OR NOZZLE)
8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20080
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
8527712080HOSE, HEADLAMP CLEANER, C
main85277-12080
9007590508
main90075-90508
91641C0614
main91641-C0614

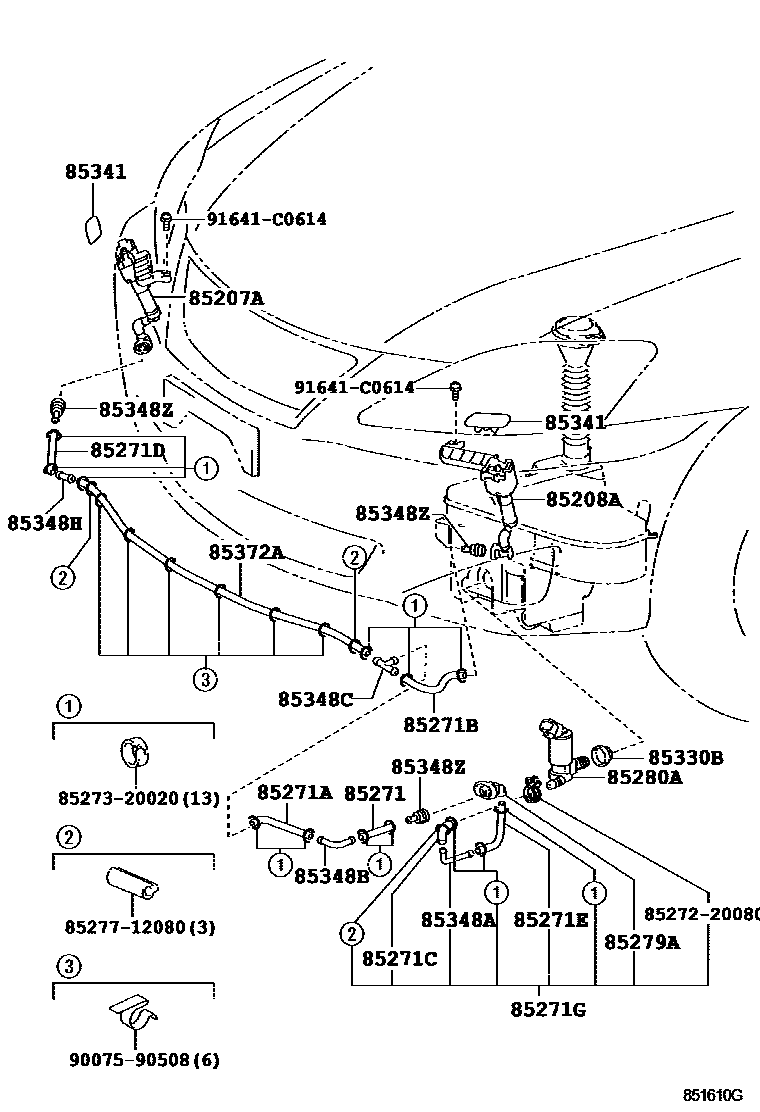

24 parts on this diagram · 3 diagrams in section
