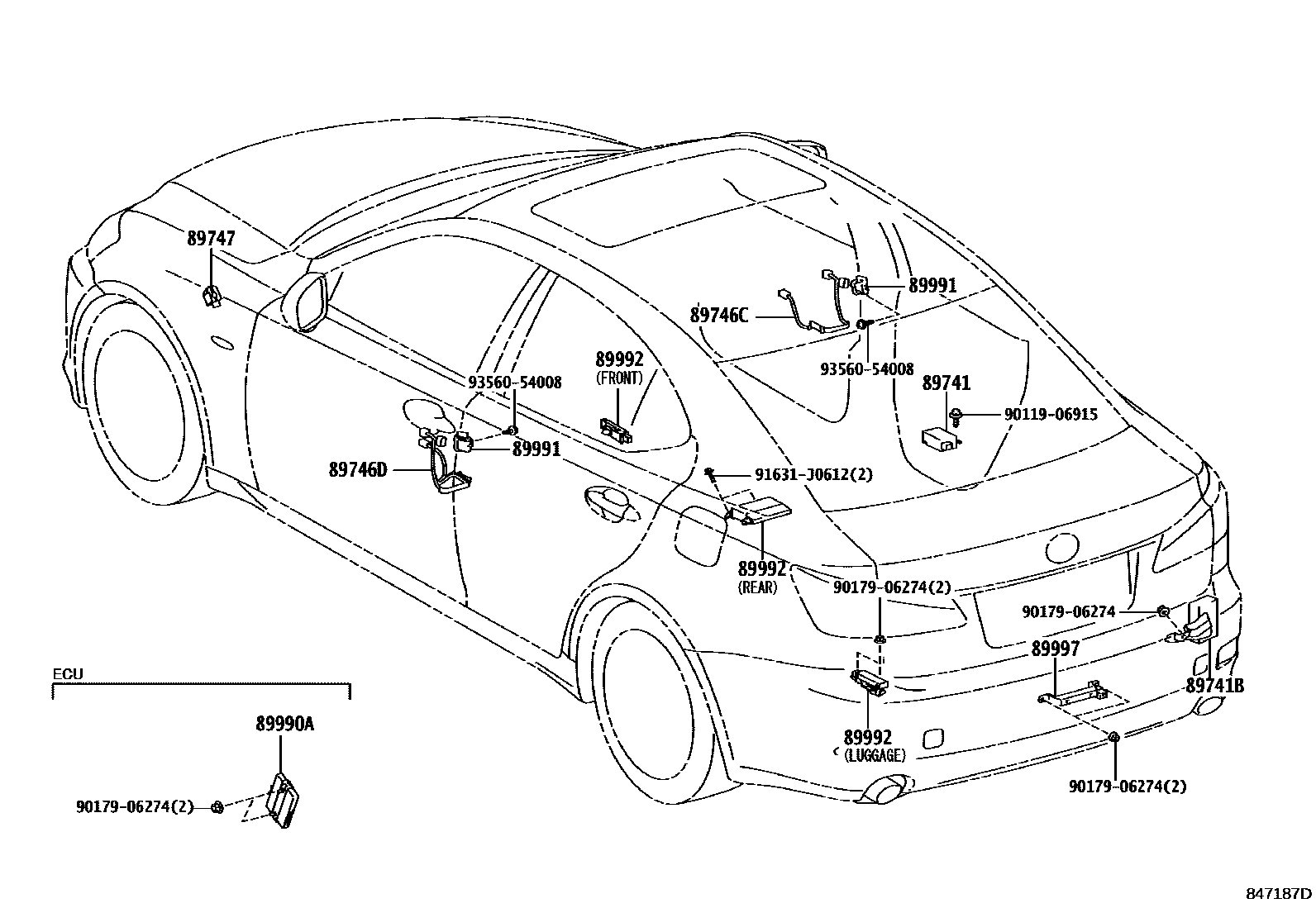

WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-53030iGSE2#200508-201208

main89740-53370iGSE2#201208

89741BRECEIVER, DOOR CONTROL, NO.2

main89740-53040iGSE2#200508-201008

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-53010iGSE2#200508-201008

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-53020iGSE2#200508-201008

89747BUZZER, WIRELESS DOOR LOCK

main89747-48020iGSE2#200508-200609

main89747-52010iGSE2#200610-201008

89990ACOMPUTER ASSY, SMART KEY

main89990-53010iGSE2#200508-200512

sub89990-53011

main89990-53011iGSE2#200601-200604

sub89990-53012

main89990-53012iGSE2#200605-200607

sub89990-53017

main89990-53013iGSE2#200607-200611

sub89990-53014

main89990-53014iGSE2#200612-200708

sub89990-53015

main89990-53015iGSE2#200708-200801

sub89990-53016

main89990-53016iGSE2#200802-200808

sub89990-53230

main89990-53030iGSE2#200808-200908

sub89990-53070

main89990-53070iGSE2#200908-200909

sub89990-53071

main89990-53071iGSE2#200910-201004

sub89990-53130

main89990-53130iGSE2#201005-201103

sub89990-53170

main89990-53131iGSE2#201108-201208

sub89990-53132

main89990-53132iGSE2#201209

sub89990-53370

main89990-53170iGSE2#201103-201108

sub89990-53171

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-30040iGSE2#200508-201304

RH

main89991-30050iGSE2#200508-201304

LH

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-30080iGSE2#200908-201008

REAR

main89992-30090iGSE2#200508-201008

FRONT

main89992-30100iGSE2#200508-200908

REAR

main89992-53010iGSE2#200508-201008

LUGGAGE

89997ANTENNA, ELECTRICAL KEY

main89997-30070iGSE2#201108

main89997-41010iGSE2#200508-201108

9011906915

main90119-06915

9017906274

main90179-06274

91631J0612

main91631-J0612

9356054008

main93560-54008

13 parts on this diagram · 1 diagram in section
