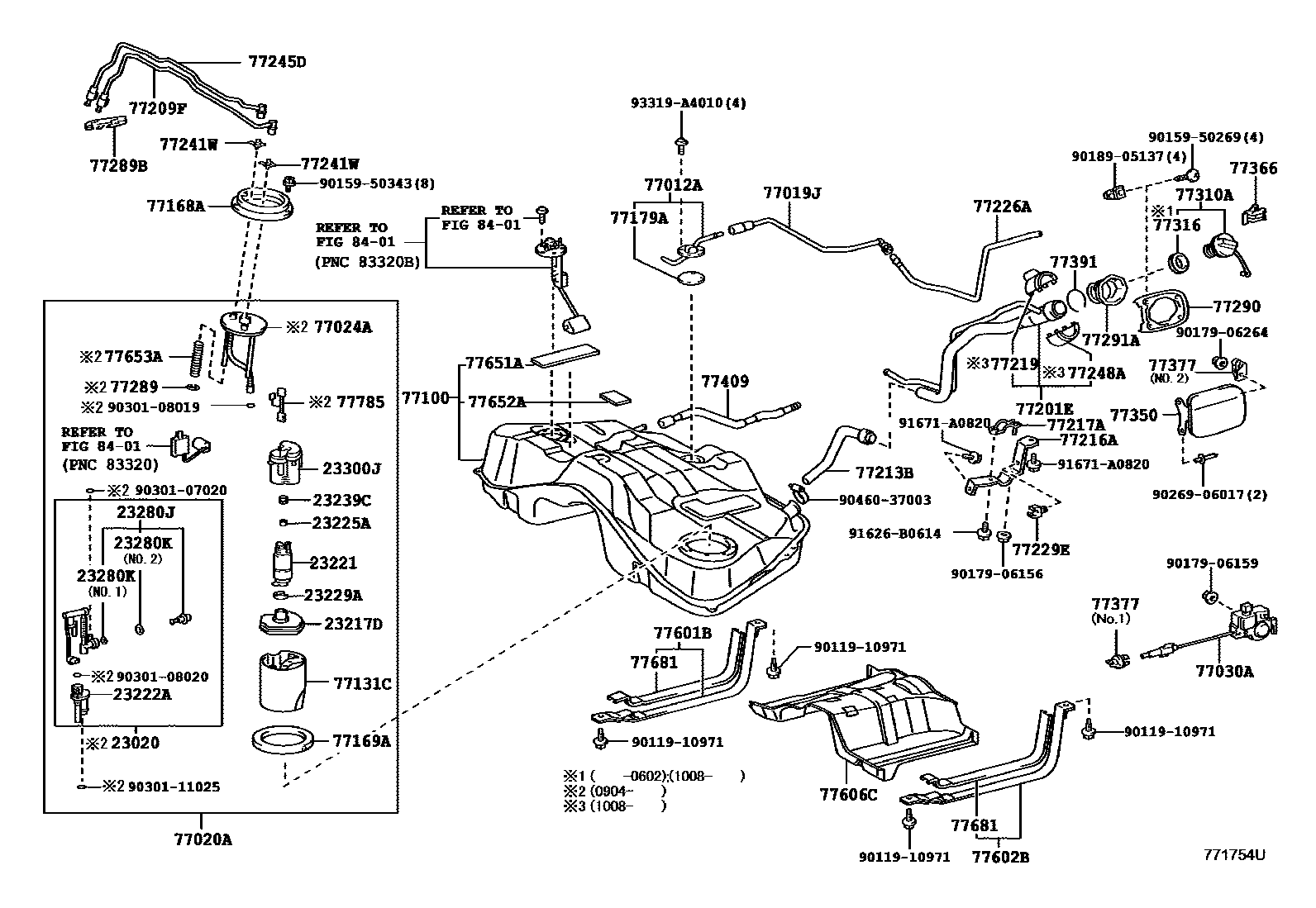

FUEL TANK & TUBE
23020REGULATOR ASSY, FUEL PRESSURE W/JET PUMP
23217DFILTER, FUEL PUMP
23222ATUBE, FUEL RETURN JET
23225ASPACER, FUEL PUMP
23229ACLIP(FOR FUEL PUMP FILTER)
23239CSEAL, FUEL PUMP FILTER
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
23300JFILTER ASSY, FUEL
77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER
77024APLATE SUB-ASSY, FUEL SUCTION
sub77024-22031
77030ALOCK ASSY, FUEL LID W/MOTOR
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77219COVER, FUEL TANK FILLER PIPE
77229ECLAMP, BREATHER TUBE
77245DTUBE, FUEL TANK RETURN VENT
77248AHOLDER, FUEL TANK FILLER PIPE COVER
77289HOLDER, FUEL TANK PIPE SETTING
77289BCLAMP, FUEL TUBE, NO.3
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
NO.1
NO.2
77391RING, FUEL INLET BOX
77409HOSE SUB-ASSY, FUEL, NO.3
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77681SEAT, FUEL TANK BAND, RH
77785HARNESS, FUEL PUMP
sub77785-30041
8401
9011910971
main90119-10971
9015950269
main90159-50269
9015950343
main90159-50343
9017906156
main90179-06156
9017906159
main90179-06159
9017906264
main90179-06264
9018905137
main90189-05137
9026906017
main90269-06017
9030107020
main90301-07020
9030108019
main90301-08019
9030108020
main90301-08020
9030111025
main90301-11025
9046037003
main90460-37003
91626B0614
main91626-B0614
91671A0820
main91671-A0820
93319A4010
main93319-A4010
67 parts on this diagram · 3 diagrams in section
