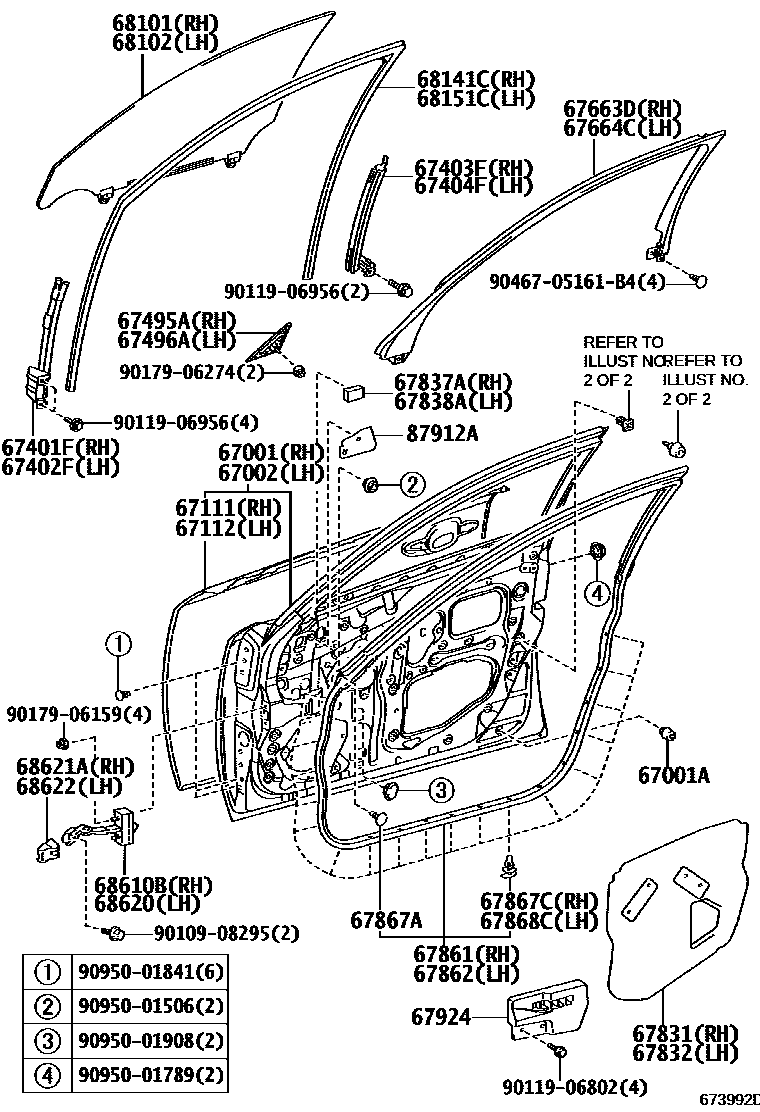

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
67663DGARNISH, DOOR FRAME, RH
67664CGARNISH, DOOR FRAME, LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67837ASEAL, FRONT DOOR VENT, RH
67838ASEAL, FRONT DOOR VENT, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67924CUSHION, FRONT DOOR STIFFENER, NO.2
RH
LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*UVCT,T=5.0,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*UVCT,T=5.0,GREEN
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68621ACOVER, FRONT DOOR CHECK, RH
68622COVER, FRONT DOOR CHECK, LH
87912APROTECTOR, OUTER MIRROR
RH
LH
9010908295
main90109-08295
9011906802
main90119-06802
9011906956
main90119-06956
9017906159
main90179-06159
9017906274
main90179-06274
9046705161B4
main90467-05161B4
9095001506
main90950-01506
9095001789
main90950-01789
9095001841
main90950-01841
9095001908
main90950-01908
42 parts on this diagram · 2 diagrams in section
