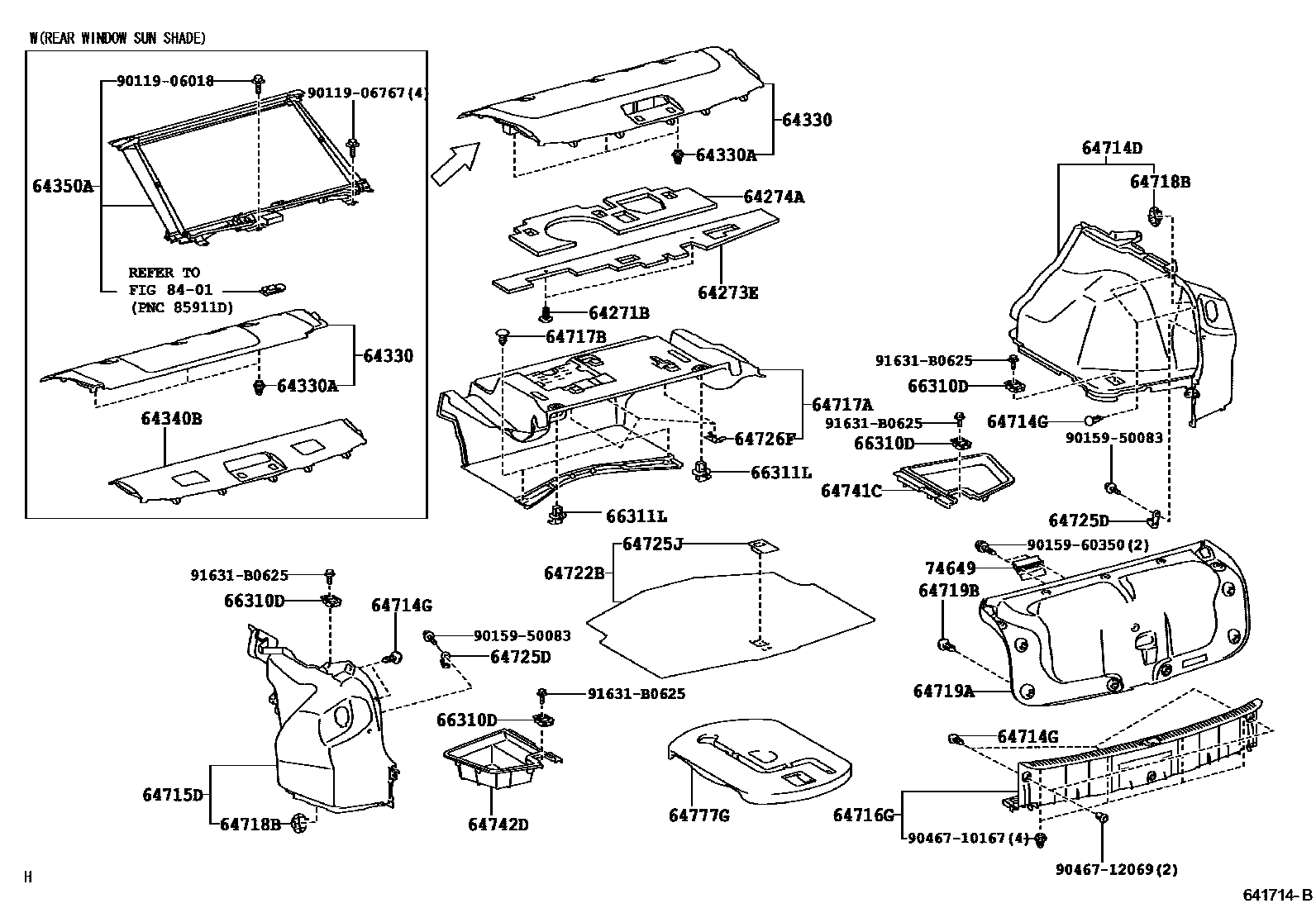

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
64271BCLIP(FOR ROOM PARTITION BOARD)
64273EPAD, ROOM PARTITION
64274APAD, ROOM PARTITION, NO.2
64330PANEL ASSY, PACKAGE TRAY TRIM
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
64350ASHADE ASSY, REAR WINDOW
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
BLACK,TRIM0#,1#,2#
64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
BLACK,TRIM0#,1#,2#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,1#,2#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64722BCOVER, LUGGAGE COMPARTMENT TRIM, NO.2
BLACK,TRIM0#,1#,2#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725JHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK
BLACK,TRIM0#,1#,2#
64726FHOOK, LUGGAGE COMPARTMENT TRIM, NO.2
BLACK,TRIM0#,1#,2#
64741CBOX, DECK SIDE TRIM, RH
BLACK,TRIM0#,1#,2#
64742DBOX, DECK SIDE TRIM, LH
BLACK,TRIM0#,1#,2#
64777GCUSHION, SPARE WHEEL
66310DHOOK ASSY, ROPE
sub66310-30011
66311LHOOK,ROPE
BLACK,TRIM0#,1#,2#
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
8401
9011906018
main90119-06018
9011906767
main90119-06767
9015950083
main90159-50083
9015960350
main90159-60350
9046710167
main90467-10167
9046712069
main90467-12069
91631B0625
main91631-B0625
34 parts on this diagram · 1 diagram in section
