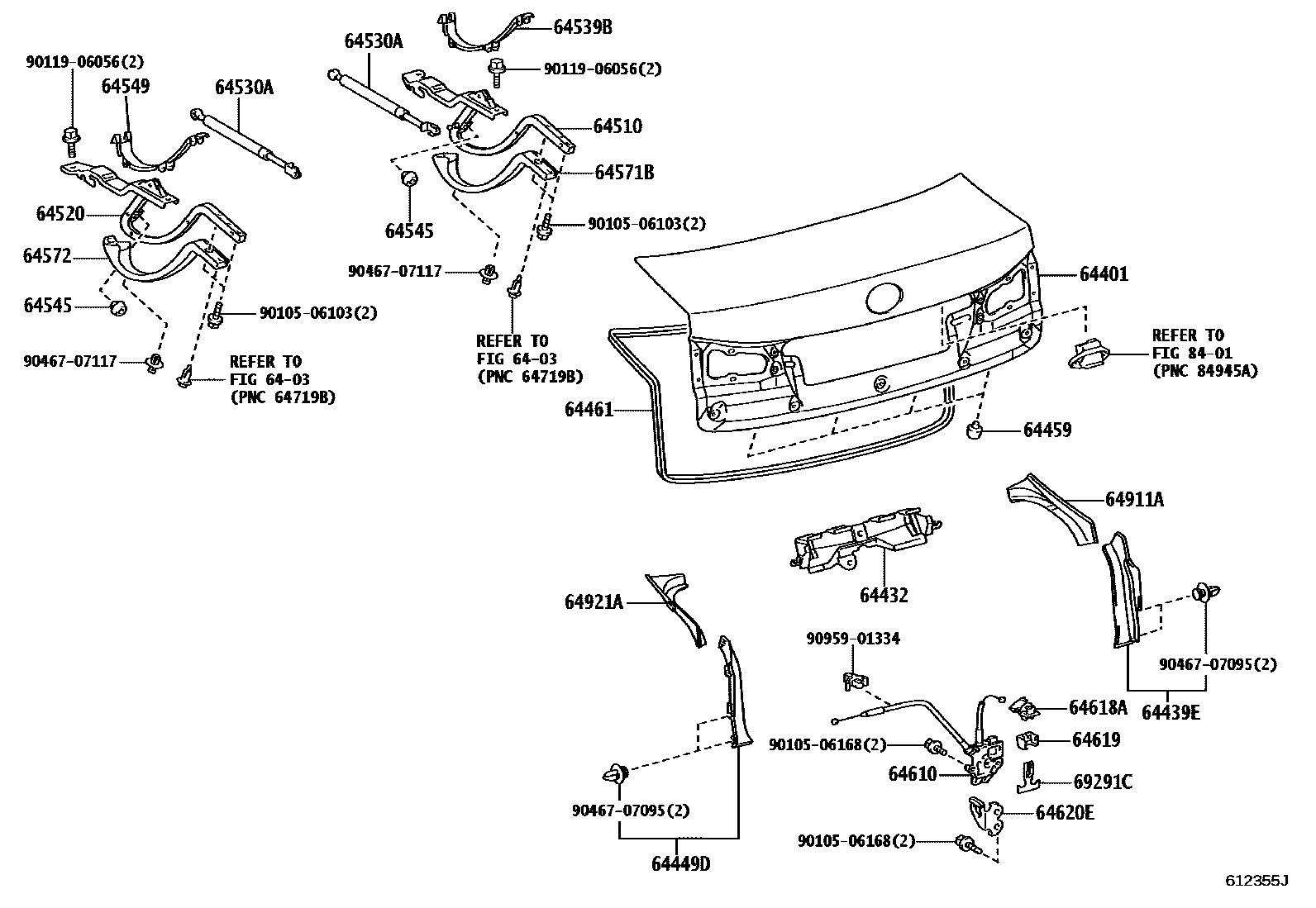

LUGGAGE COMPARTMENT DOOR & LOCK
6403
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
KOREA SPEC&FB PACKAGE
KOREA SPEC
KOREA SPEC&EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION)
sub64401-53121
KOREA SPEC&EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION)
sub64401-53122
sub75441-53071
sub75441-53091
sub76801-53081
KOREA SPEC&LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)
EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION)
sub64401-53142
sub75441-53071
sub75441-53091
sub76801-53081
EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)
KOREA SPEC&F PACKAGE
KOREA SPEC&VERSION F&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)
CANADA SPEC&VERSION F
FB PACKAGE&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)
64432REINFORCEMENT, LUGGAGE COMPARTMENT DOOR
64439ECOVER, LUGGAGE ROOM BOX SIDE, RH
64449DCOVER, LUGGAGE ROOM BOX SIDE, LH
64459CUSHION, LUGGAGE COMPARTMENT DOOR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR
sub64530-53011
sub64530-53012
sub64530-53013
sub64530-53014
64539BPLATE, LUGGAGE DOOR HINGE ARM, RH
BLACK,TRIM0#,1#,2#
64545CUSHION, LUGGAGE DOOR HINGE
64549PLATE, LUGGAGE DOOR HINGE ARM, LH
BLACK,TRIM0#,1#,2#
64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
BLACK,TRIM0#,1#,2#
64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
BLACK,TRIM0#,1#,2#
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64618ACLAMP, LUGGAGE LOCK CONTROL CABLE
BLACK,TRIM0#,1#,2#
64619PLATE, LUGGAGE LOCK CONTROL CABLE
BLACK,TRIM0#,1#,2#
64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64911ACOVER, SIDE OPENING, RH
64921ACOVER, SIDE OPENING, LH
8401
9010506103
main90105-06103
9010506168
main90105-06168
9011906056
main90119-06056
9046707095
main90467-07095
9046707117
main90467-07117
9095901334
main90959-01334
29 parts on this diagram · 1 diagram in section
