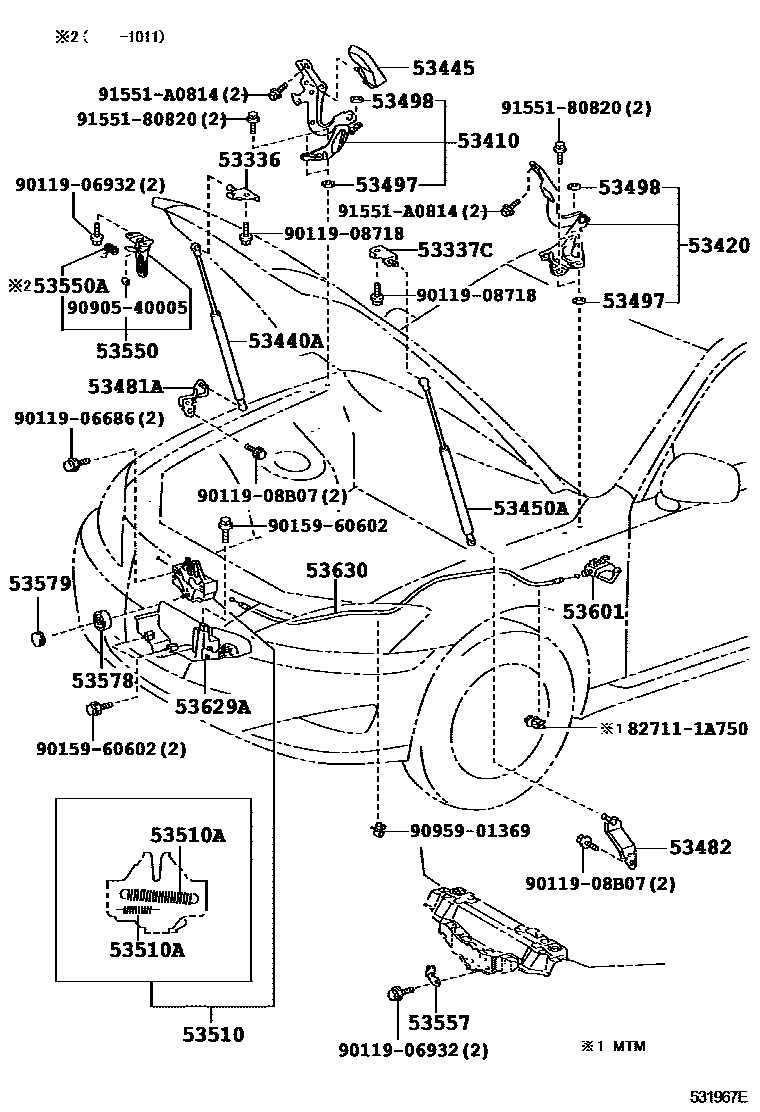

HOOD LOCK & HINGE
53336BRACKET, HOOD STAY, RH
53337CBRACKET, HOOD STAY, LH
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53445COVER, HOOD HINGE, RH
53481ABRACKET, HOOD SUPPORT, RH
53482BRACKET, HOOD SUPPORT, LH
53497PAD, HOOD HINGE, NO.1
T=1.0
53498PAD, HOOD HINGE, NO.2
T=1.0
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=20.5
WD=1.4,CW=15
WD=1.8,CW=18
53550HOOK ASSY, HOOD AUXILIARY CATCH
53550ASPRING, TORSION(FOR HOOD LOCK HOOK)
53557CATCH, HOOD AUXILIARY HOOK
53578NUT, HOOD LOCK
53579CAP, HOOD LOCK NUT
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
53629ACOVER, HOOD LOCK CONTROL CABLE
53630CABLE ASSY, HOOD LOCK CONTROL
827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A750
9011906686
main90119-06686
9011906932
main90119-06932
9011908718
main90119-08718
9011908B07
main90119-08B07
9015960602
main90159-60602
9090540005
main90905-40005
9095901369
main90959-01369
9155180820
main91551-80820
91551A0814
main91551-A0814
31 parts on this diagram · 1 diagram in section
