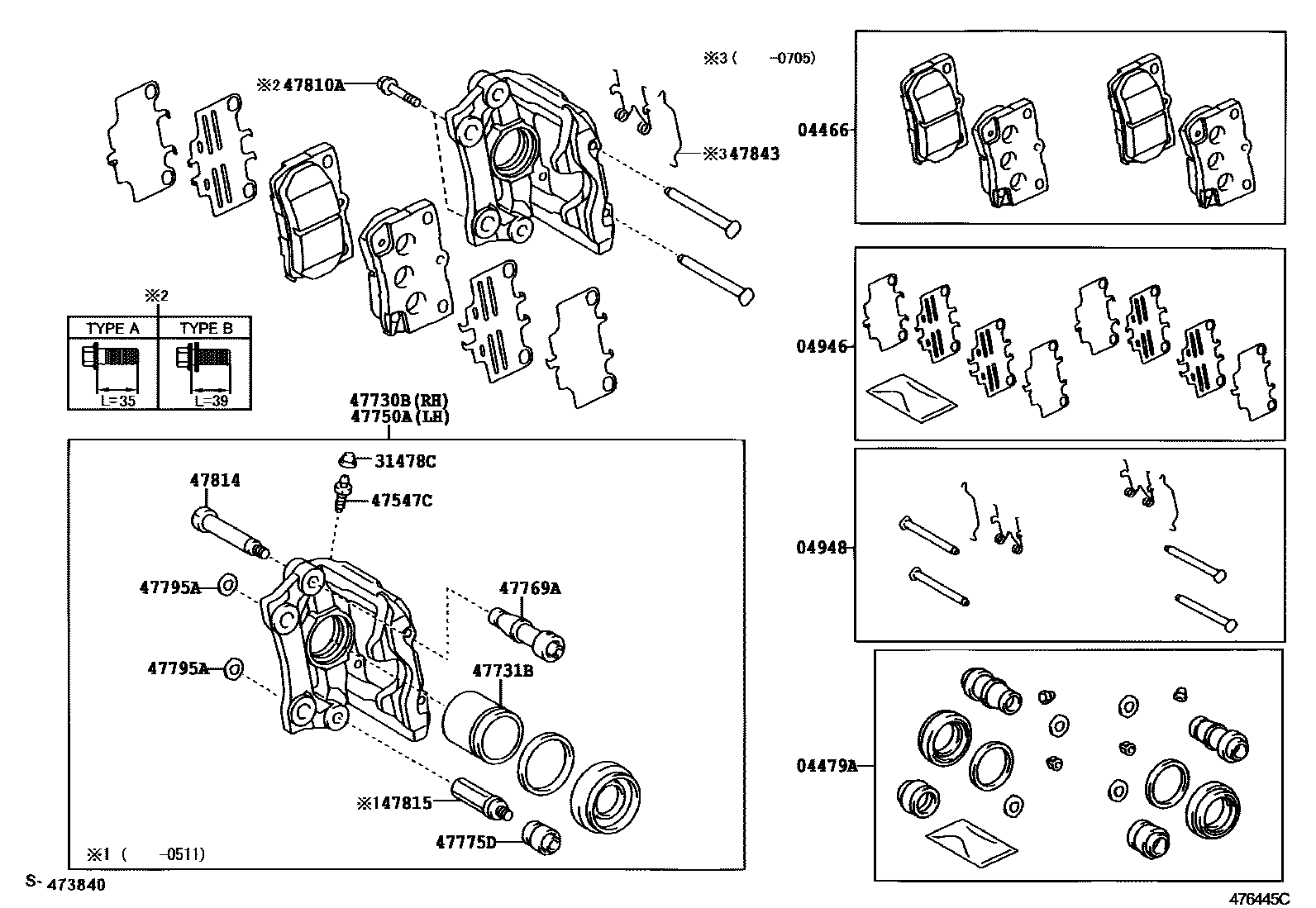

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-22190iGSE20,25200508-201304

MARK NBK PN529H

main04466-22190iGSE21,26201008-201304

MARK NBK PN529H,SUSPENSION-SPORTS

main04466-53010iGSE20,25200602-201304

MARK NBK PN529H

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-22150iGSE21200508-200511

sub04479-30530

main04479-22170iGSE21,26201104

main04479-30340iGSE20,25200508-200511

sub04479-30550

main04479-30450iGSE20,25200511-200709

sub04479-30510

main04479-30510iGSE20,25200709-201104

sub04479-53070

main04479-53070iGSE20,25201104

main04479-61020iGSE21200606-200707

sub04479-61040

main04479-61040iGSE21200707-201104

sub04479-22170

main04479-68030iGSE21200511-200606

sub04479-61020

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-22090iGSE21200508-201008

main04946-30110iGSE20,25200508-201008

04948FITTING KIT, DISC BRAKE, REAR

main04948-22090iGSE21200508-200705

sub04948-30210

main04948-30140iGSE20,25200508-200705

sub04948-30220

main04948-30210iGSE21200705-201008

main04948-30210iGSE21,26201008

SUSPENSION-SPORTS

main04948-30220iGSE20,25200705-201008

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGSE2#200508-201304

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030iGSE2#200508-201304

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-22220iGSE21200508-200511

sub47830-22221

main47830-22221iGSE21,26201008-201212

PNC 47810A=TYPE A

main47830-22221iGSE21200511-201008

main47830-30400iGSE21,26201212-201304

PNC 47810A=TYPE B

main47830-53050iGSE20,25200508-200511

sub47830-53051

main47830-53051iGSE20,25200511-201008

main47830-53051iGSE20,25201008-201212

PNC 47810A=TYPE A

main47830-53052iGSE20,25201212-201304

PNC 47810A=TYPE B

47731BPISTON, REAR DISC BRAKE

main47831-22220iGSE21200508-201304

main47831-30300iGSE20,25200508-201304

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-22220iGSE21200508-200511

sub47850-22221

main47850-22221iGSE21,26201008-201212

PNC 47810A=TYPE A

main47850-22221iGSE21200511-201008

main47850-30400iGSE21,26201212-201304

PNC 47810A=TYPE B

main47850-53050iGSE20,25200508-200511

sub47850-53051

main47850-53051iGSE20,25200511-201008

main47850-53051iGSE20,25201008-201212

PNC 47810A=TYPE A

main47850-53052iGSE20,25201212-201304

PNC 47810A=TYPE B

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-30300iGSE2#200508-201304

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-32050iGSE2#200508-200511

main47875-22221iGSE2#200511-200707

sub47875-30340

main47875-30340iGSE2#200707-201104

sub47875-30341

main47875-30341iGSE2#201104-201304

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30300iGSE2#200508-201304

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10525iGSE2#200508-201008

main90105-10525iGSE2#201008-201212

TYPE A:REFER ILLUST.

main90119-12416iGSE2#201212

TYPE B:REFER ILLUST.

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-30300iGSE2#200508-201304

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-30300iGSE2#200508-200511

47843CLIP, REAR DISC BRAKE PIN HOLD

main47843-30300iGSE2#200508-200705

16 parts on this diagram · 1 diagram in section
