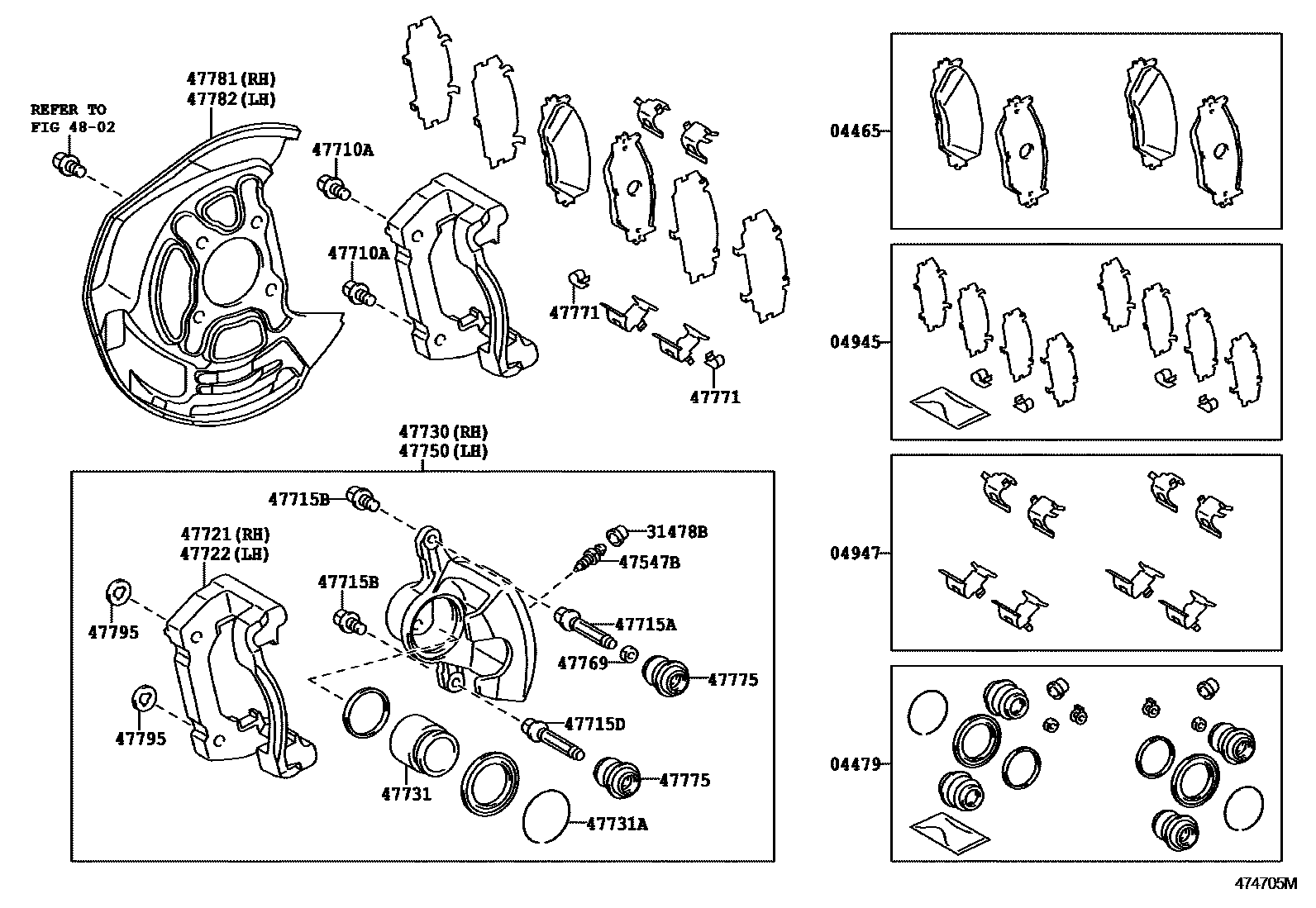

FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
MARK NBK D6893H
MARK NBK D6893H
MARK TEXTAR T4146
04945SHIM KIT, ANTI SQUEAL, FRONT
sub04945-22152
sub04945-30350
MARK=60-32
sub04945-30350
sub04945-53040
sub04945-53050
MARK=60-28
04947FITTING KIT, DISC BRAKE, FRONT
MARK=60-32
MARK=60-28
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
*12-1.25PX45-30
*12-1.25PX40-30
47715APIN, FRONT DISC BRAKE CYLINDER SLIDE
47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
MARK=60-32
MARK=60-28
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
MARK=60-28
MARK=60-32
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
MARK=60-32
MARK=60-28
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
MARK=60-28
MARK=60-32
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
47750CYLINDER ASSY, DISC BRAKE, LH
MARK=60-28
MARK=60-32
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47771PLATE, PAD WEAR INDICATOR, NO.1
MARK=60-28
47781COVER, DISC BRAKE DUST, FRONT RH
47782COVER, DISC BRAKE DUST, FRONT LH
47795PLATE, FRONT DISC BRAKE CALIPER, NO.1
4802
23 parts on this diagram · 4 diagrams in section
