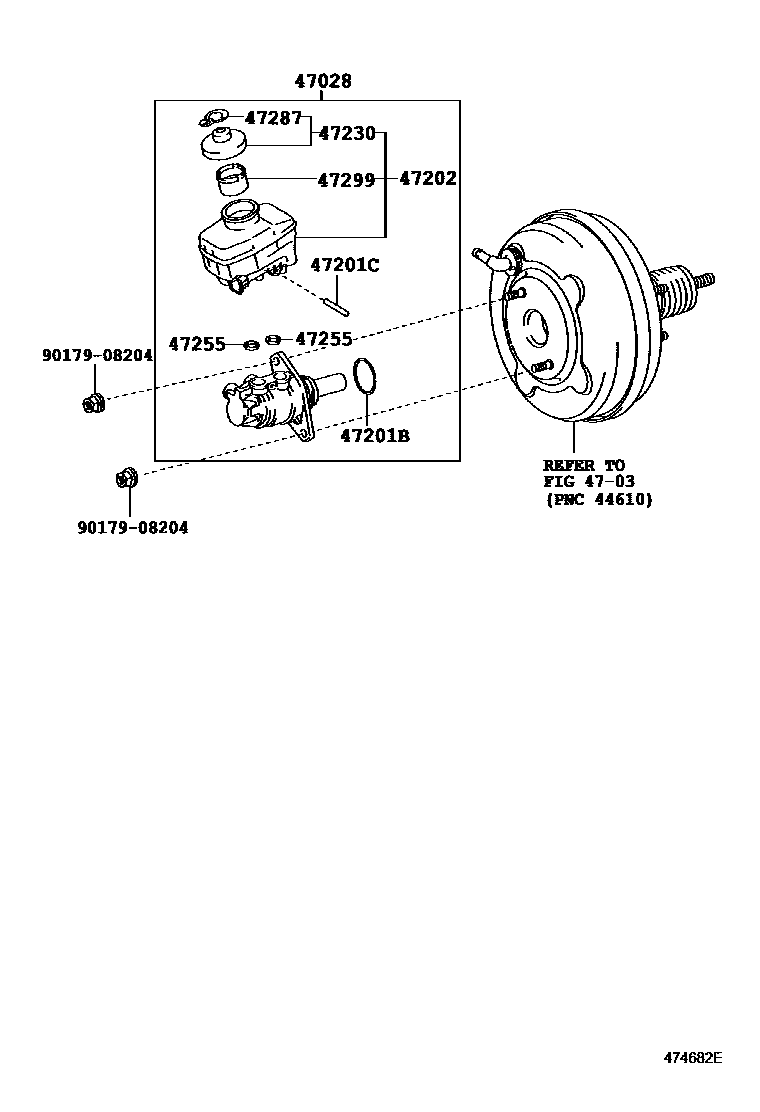

BRAKE MASTER CYLINDER

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47028-30030iGSE2#..ATM200508-201008

main47028-53020iGSE20..MTM200509-201208

4703

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iGSE2#200508-201008

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGSE2#200508-201008

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-30180iGSE2#..ATM200508-201008

main47220-53080iGSE20..MTM200509-201208

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iGSE2#200508-201008

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iGSE2#200508-201008

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iGSE2#200508-201008

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGSE2#200508-201008

9017908204

main90179-08204

10 parts on this diagram · 1 diagram in section
