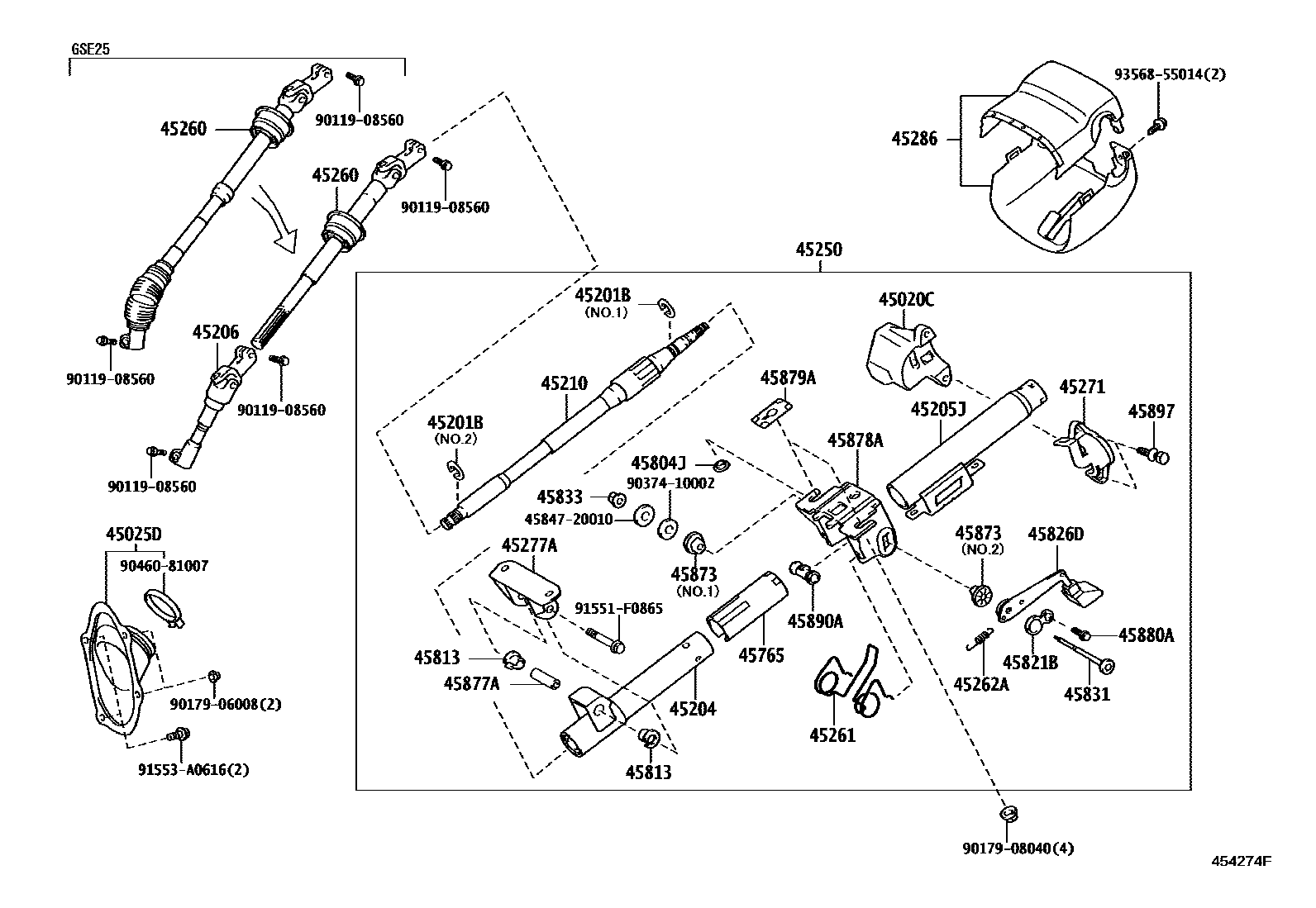

STEERING COLUMN & SHAFT

0001 1MANUAL TILT & TELESCOPIC STEE0002 1POWER TILT & TELESCOPIC STEER0004 1MANUAL TILT & TELESCOPIC STEE0005 1POWER TILT & TELESCOPIC STEER

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-52140iGSE2#200508-201304

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30390iGSE20,21200508-201304

main45025-30400iGSE25200508-201302

sub45025-30401

main45025-30401iGSE25,26201303-201304

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17269iGSE2#200508-201008

T=1.20,NO.2

main90520-21023iGSE2#200508-201008

T=1.20,NO.1

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-53010iGSE2#200508-201008

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-22270iGSE2#200508-201008

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-30110iGSE20,21200508-200707

sub45206-30111

main45206-30111iGSE20,21200708-201112

main45206-30112iGSE20,21201112

45210SHAFT ASSY, STEERING MAIN

main45210-22290iGSE2#200508-201101

sub45210-22291

main45210-22291iGSE2#201102

45250COLUMN ASSY, STEERING

main45250-53030iGSE2#200508-201011

sub45250-53031

sub45020-52140

sub45271-22030

sub45897-12020

main45250-53031iGSE2#201011-201204

sub45250-53032

main45250-53032iGSE2#201205

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-30160iGSE20,21200508-200707

main45260-30170iGSE25200508-200707

main45260-30200iGSE20,21200708-201212

sub45260-30201

main45260-30201iGSE20,21201301-201304

main45260-30210iGSE25,26200708-201112

main45260-30211iGSE25,26201112-201301

sub45260-30212

main45260-30212iGSE25,26201302-201304

45261SPRING, TILT STEERING JUMP UP

main45261-35020iGSE2#200508-201008

45262ASPRING, TILT LEVER RETURN

main45262-35010iGSE2#200508-201008

45271CLAMP, STEERING COLUMN, UPPER

main45271-22030iGSE2#200508-201008

sub45271-22031

45277ASUPPORT, TILT STEERING

main45277-53010iGSE2#200508-201204

sub45277-53011

main45277-53011iGSE2#201205

45286COVER, STEERING COLUMN

main45286-53903-C0iGSE2#200508-200509

BLACK,TRIM0#,1#,2#

sub45286-53909

main45286-53909-C0iGSE2#200509-200905

BLACK,TRIM0#,1#,2#

sub45286-53914

main45286-53914-C0iGSE2#200905-201304

BLACK,TRIM0#,1#,2#

45765GUIDE, TELESCOPIC STEERING

main45765-35010iGSE2#200508-201008

45804JCOLLAR SUB-ASSY, BREAK AWAY

main45804-22030iGSE2#200508-201008

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-12020iGSE2#200508-201008

OD=24-16

45821BREINFORCE, TILT STEERING SUPPORT, NO.1

main45821-35020iGSE2#200508-201008

45826DLEVER, STEERING TELESCOPIC

main45826-22130iGSE2#200508-201008

45831BOLT, TILT LEVER LOCK, NO.1

main45831-35010iGSE2#200508-201008

45833NUT, TILT STEERING ADJUSTING, NO.1

main45833-20030iGSE2#200508-201008

45873STOPPER, STEERING COLUMN TUBE

main45873-20050iGSE2#200508-201008

NO.1

main45873-35010iGSE2#200508-201008

NO.2

45877ASPACER, STEERING COLUMN BRACKET

main45877-35030iGSE2#200508-201008

45878ABRACKET, BREAK AWAY

main45878-35160iGSE2#200508-201204

sub45878-35161

main45878-35161iGSE2#201205

45879ACAPSULE, BREAK AWAY

main45879-22070iGSE2#200508-201008

45880ABOLT(FOR STEERING TILT LEVER)

main45832-12010iGSE2#200508-201008

45890APAWL ASSY, TILT STEERING

main45823-35020iGSE2#200508-201008

45897BOLT, STEERING LOCK SET

main45897-12020iGSE2#200508-201008

4584720010

main45847-20010

9011908560

main90119-08560

9017906008

main90179-06008

9017908040

main90179-08040

9037410002

main90374-10002

9046081007

main90460-81007

91551F0865

main91551-F0865

91553A0616

main91553-A0616

9356855014

main93568-55014

37 parts on this diagram · 4 diagrams in section
