TRANSFER GEAR

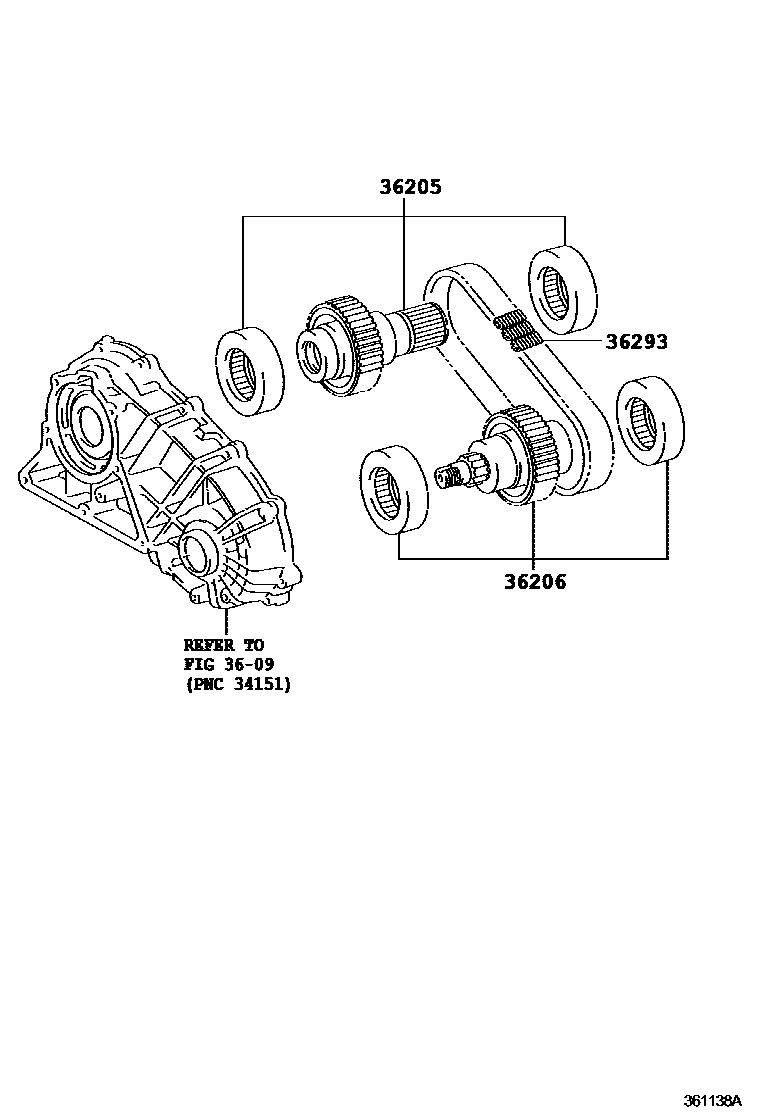

Parts diagram

3609

36205SPROCKET SUB-ASSY, TRANSFER DRIVE

main36205-30030i200508-201008

36206SLEEVE SUB-ASSY, TRNSFR FR DRIVE CLUTCH

main36206-30030i200508-201008

36293CHAIN, TRANSFER FRONT DRIVE

main36293-30020i200508-201008

4 parts on this diagram · 1 diagram in section
