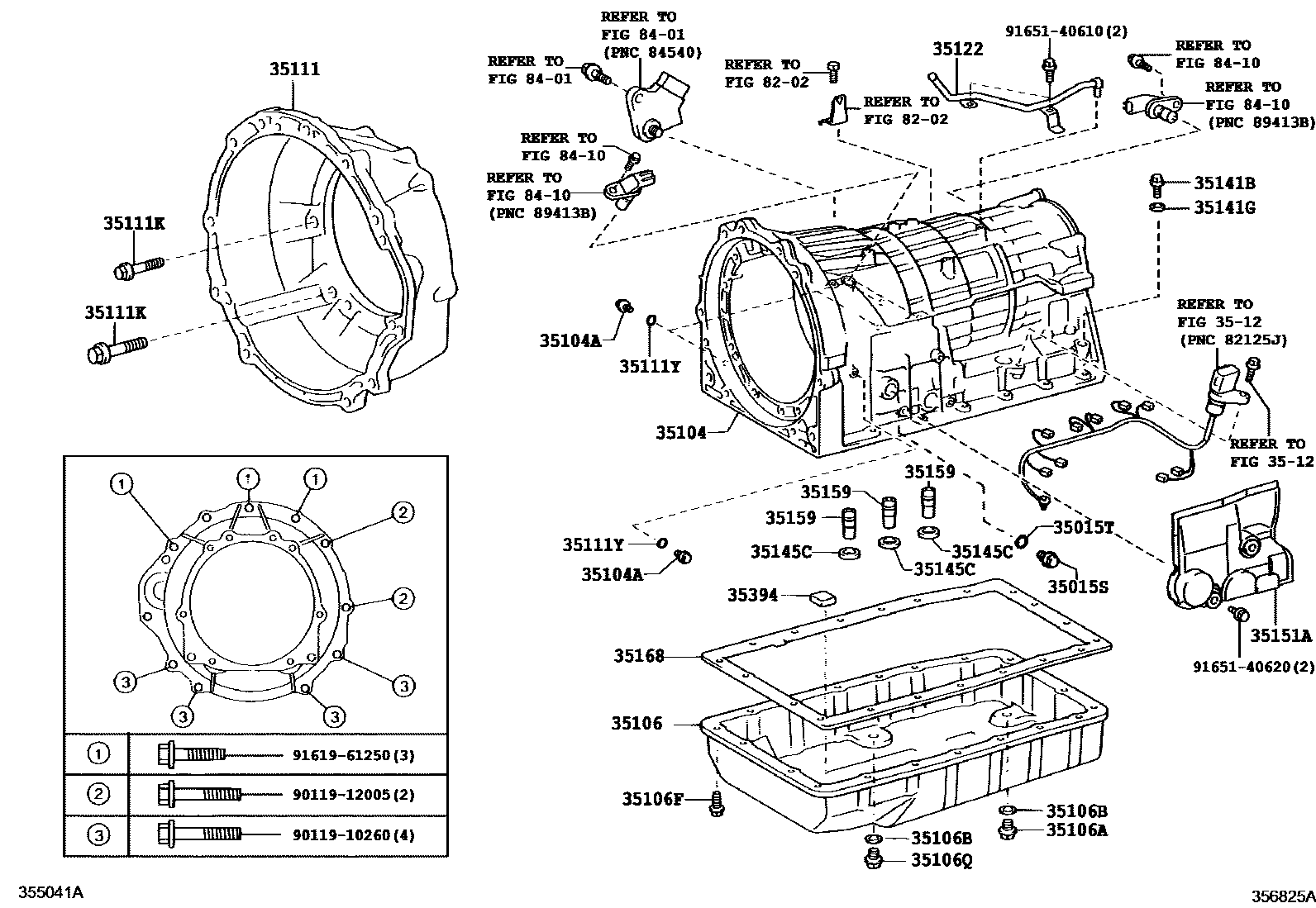

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A960E 0002 1A760E 0003 1A760H

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iGSE2#..ATM200508-201008

35015TRING, O(FOR TRANSMISSION CASE ADAPTER)

main90301-15004iGSE2#..ATM200508-201008

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22080iGSE20..ATM200508-201008

main35104-30220iGSE25200508-201008

main35104-50020iGSE21200508-201008

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iGSE2#..ATM200508-201008

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30260iGSE25200508-201008

main35106-30270iGSE20..ATM200508-201008

main35106-50040iGSE21200508-201008

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iGSE2#..ATM200508-201008

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iGSE2#..ATM200508-201008

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06117iGSE2#..ATM200508-200609

sub90119-06173

main90119-06173iGSE2#..ATM200610-201008

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iGSE2#..ATM200508-201008

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-22110iGSE20..ATM200508-201008

main35111-30190iGSE21,25200508-201008

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-10232iGSE2#..ATM200508-201008

*10-1.5PX35-30

main90119-10947iGSE2#..ATM200508-201008

*10-1.50PX35-29.3

main90119-12378iGSE2#..ATM200508-201008

*12-1.75PX38-30

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iGSE2#..ATM200508-201008

3512

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main90930-03182iGSE20..ATM200508-201008

main90930-03184iGSE21,25200508-201008

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iGSE2#..ATM200508-201008

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iGSE2#..ATM200508-201008

35145CGASKET, TRANSAXLE CASE

main35145-60020iGSE2#..ATM200508-201008

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-22020iGSE20..ATM200508-201008

main35151-30040iGSE21200508-201008

35159GASKET, BRAKE DRUM

main35159-60010iGSE2#..ATM200508-201008

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22020iGSE20..ATM200508-201008

main35168-60010iGSE21,25,26200508-201008

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iGSE20,21..ATM200508-201008

8202

8401

8410

9011910260

main90119-10260

9011912005

main90119-12005

9161961250

main91619-61250

9165140610

main91651-40610

9165140620

main91651-40620

29 parts on this diagram · 3 diagrams in section
