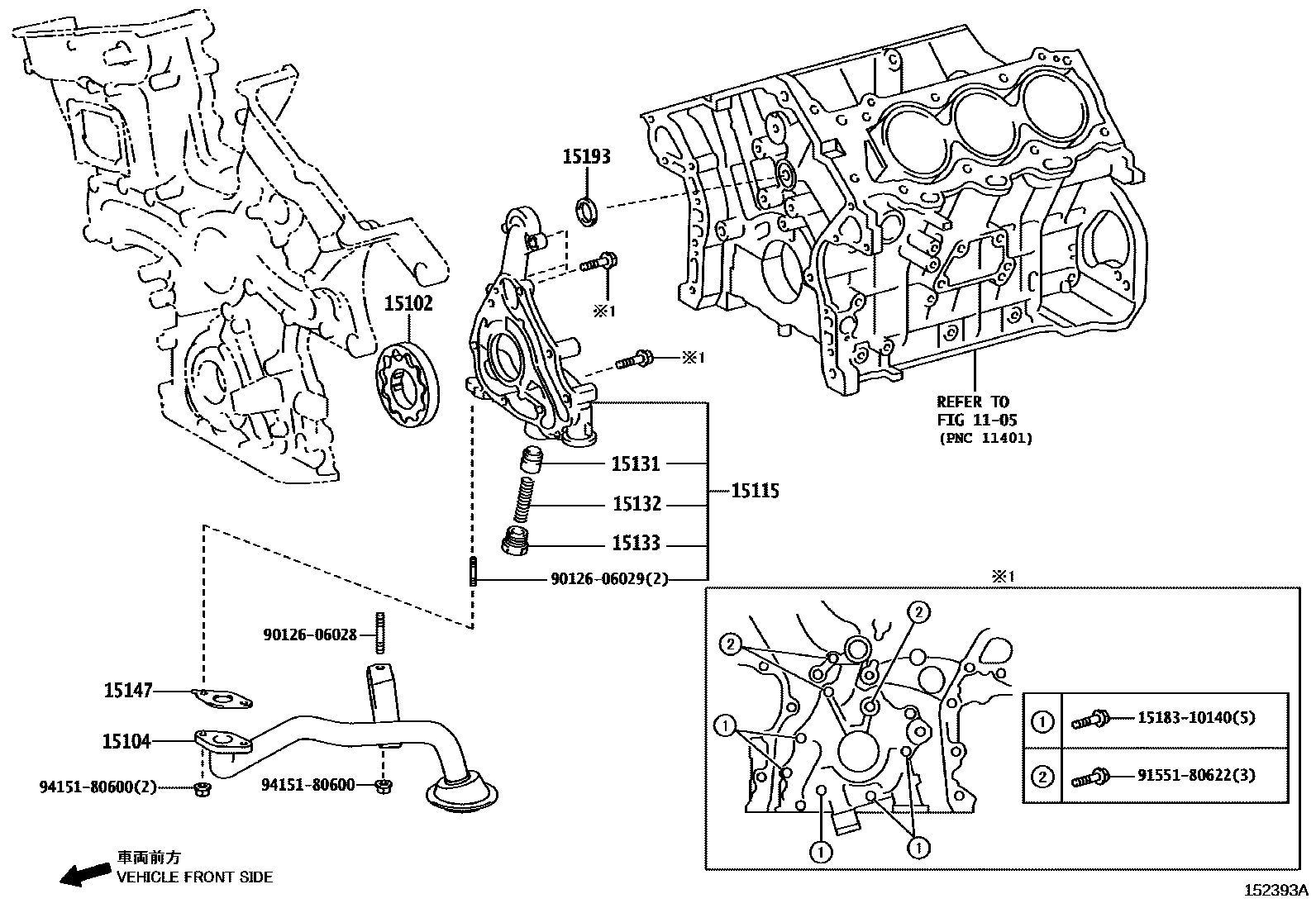

ENGINE OIL PUMP

0001 1 0002 1

1105

15102ROTOR SET, OIL PUMP

main15103-31050i2GRFSE,4GRFSE..GSE2#200508-201008

15104STRAINER SUB-ASSY, OIL

main15104-31080i2GRFSE,4GRFSE..GSE20,21200508-201008

main15104-31090i2GRFSE,4GRFSE..GSE25,26200508-201008

15115COVER, OIL PUMP

main15115-31040i2GRFSE,4GRFSE..GSE2#200508-201008

15131VALVE, OIL PUMP RELIEF

main15131-17010i2GRFSE,4GRFSE..GSE2#200508-201008

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46020i2GRFSE,4GRFSE..GSE2#200508-201008

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i2GRFSE,4GRFSE..GSE2#200508-201008

15147GASKET, OIL STRAINER

main15147-31060i2GRFSE,4GRFSE..GSE20,21200508-201008

15193GASKET, OIL PUMP

main15193-31020i2GRFSE,4GRFSE..GSE2#200508-201008

1518310140BOLT, UNION(FOR OIL PUMP)

main15183-10140

9012606028

main90126-06028

9012606029

main90126-06029

9155180622

main91551-80622

9415180600

main94151-80600

14 parts on this diagram · 2 diagrams in section
