STANDARD TOOL

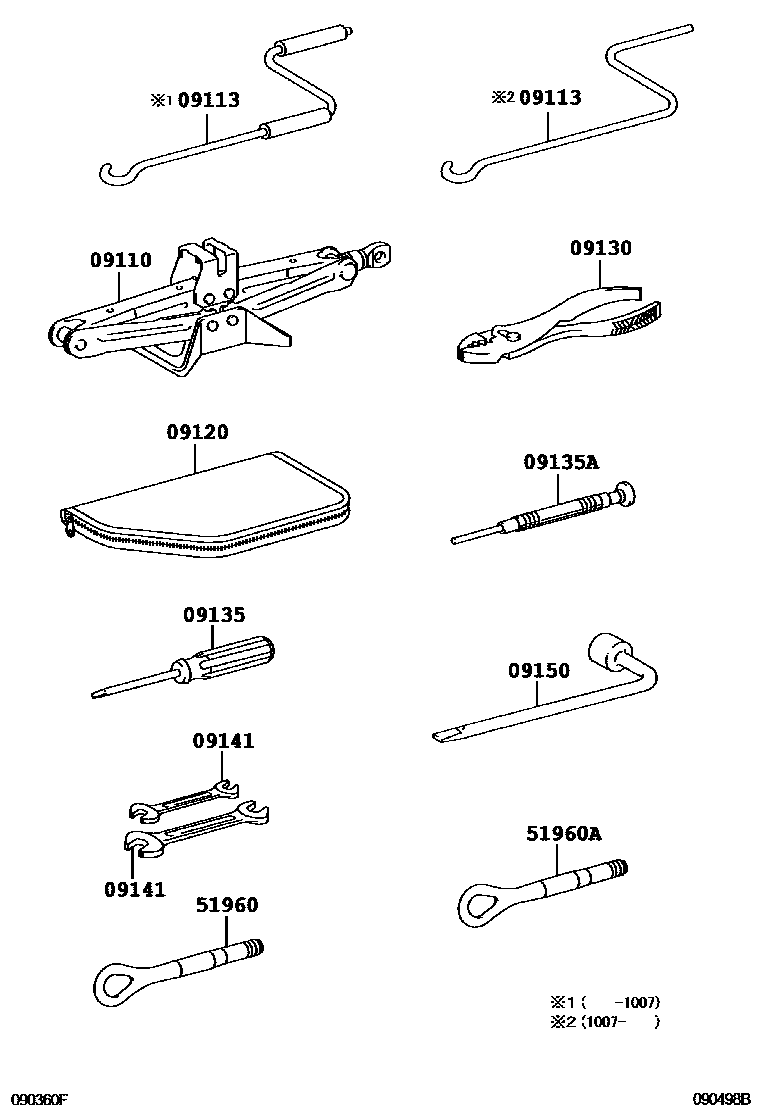

Parts diagram
09110JACK ASSY
main09111-33030i201010
sub09111-76010
main09111-50051i200508-201009
sub09111-76011
09113HANDLE, JACK
main09113-13040i201007-201008
main09113-22020i200508-201007
09120BAG, TOOL
main09120-53010i200508-201008
09130PLIERS
main09130-50030i200508-200908
main09130-50040i200908-201008
09135DRIVER, SCREW
main09135-50040i200508-200908
main99915-10700i200908-201008
09135ABIT, SCREW DRIVER
09141SPANNER
main09141-50050i200508-200908
8 X 10
main09141-50060i200508-200908
12 X 14
main09141-60010i200908-201008
8 X 10
main09141-60020i200908-201008
12 X 14
09150WRENCH, HUB NUT BOX
main09150-50010i200508-200908
sub09150-53010
main09150-53010i200908-201206
sub09150-76020
main09150-76020i201206-201304
51960HOOK ASSY, FRONT
main51961-30020i200508-200711
main51961-53010i200712-201008
51960AHOOK ASSY, REAR
main51961-30020i200508-200711
main51961-53010i200712-201008

10 parts on this diagram · 1 diagram in section
