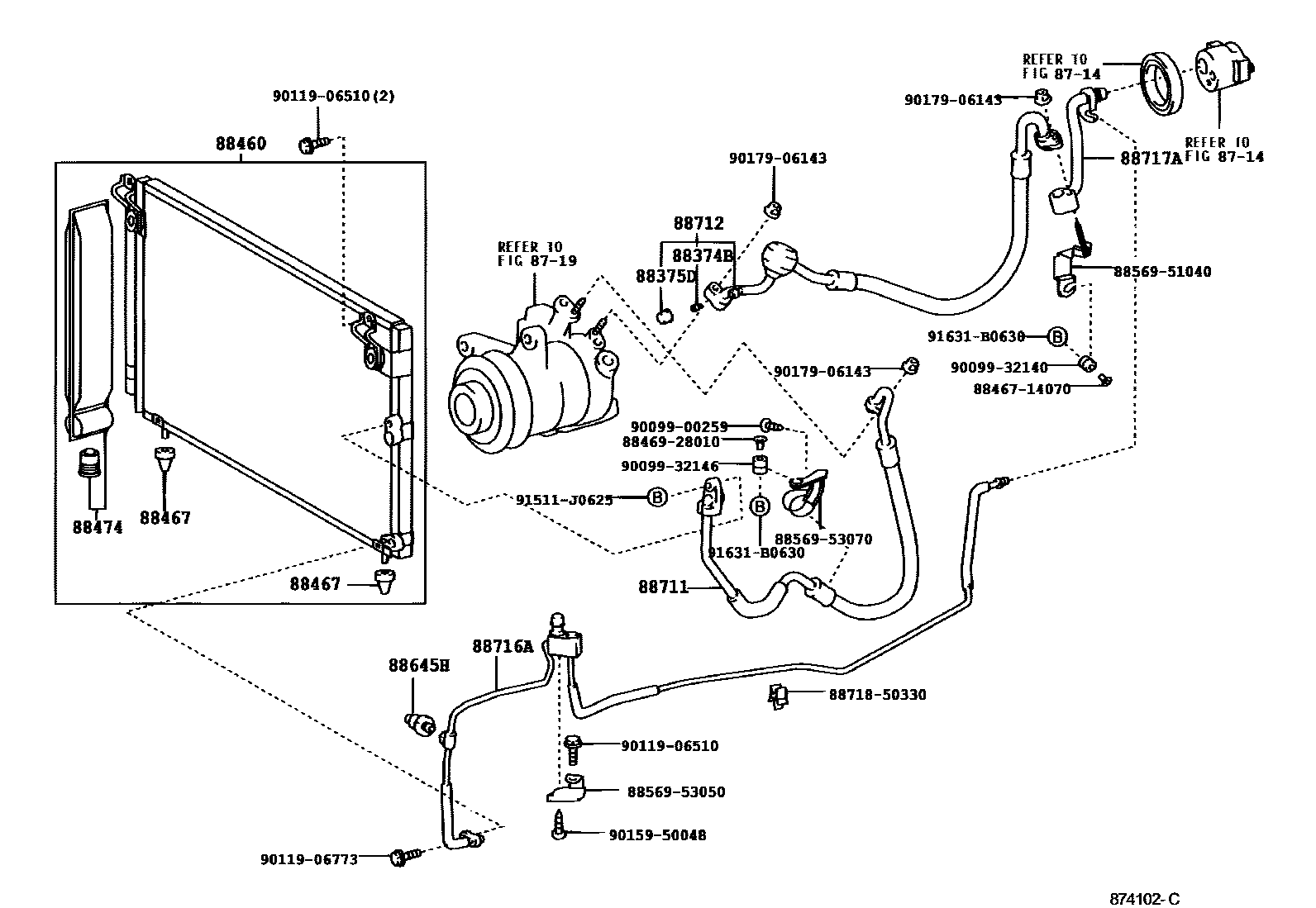

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1O-RING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iJCE10200005-200107

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iJCE10200005-200107

88460CONDENSER ASSY, COOLER

main88460-53010iJCE10200005-200107

88467CUSHION, COOLER CONDENSER, NO.1

main88467-20190iJCE10200005-200107

88474DRYER, COOLER

main88474-47010iJCE10200005-200107

88645HSWITCH, PRESSURE NO.1

main88645-60030iJCE10200005-200107

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-53040iJCE10200005-200107

sub88703-53040

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-53050iJCE10200005-200107

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88726-53030iJCE10200005-200107

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88727-53050iJCE10200005-200107

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

8846928010SWITCH, PRESSURE CONTROL

main88469-28010

8856951040CLAMP (FOR COOLER RELAY)

main88569-51040

8856953050CLAMP (FOR COOLER RELAY)

main88569-53050

8856953070CLAMP (FOR COOLER RELAY)

main88569-53070

8871850330PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-50330

9009900259

main90099-00259

9009932140

main90099-32140

9009932146

main90099-32146

9011906510

main90119-06510

9011906773

main90119-06773

9015950048

main90159-50048

9017906143

main90179-06143

91511J0625

main91511-J0625

91631B0630

main91631-B0630

27 parts on this diagram · 3 diagrams in section
