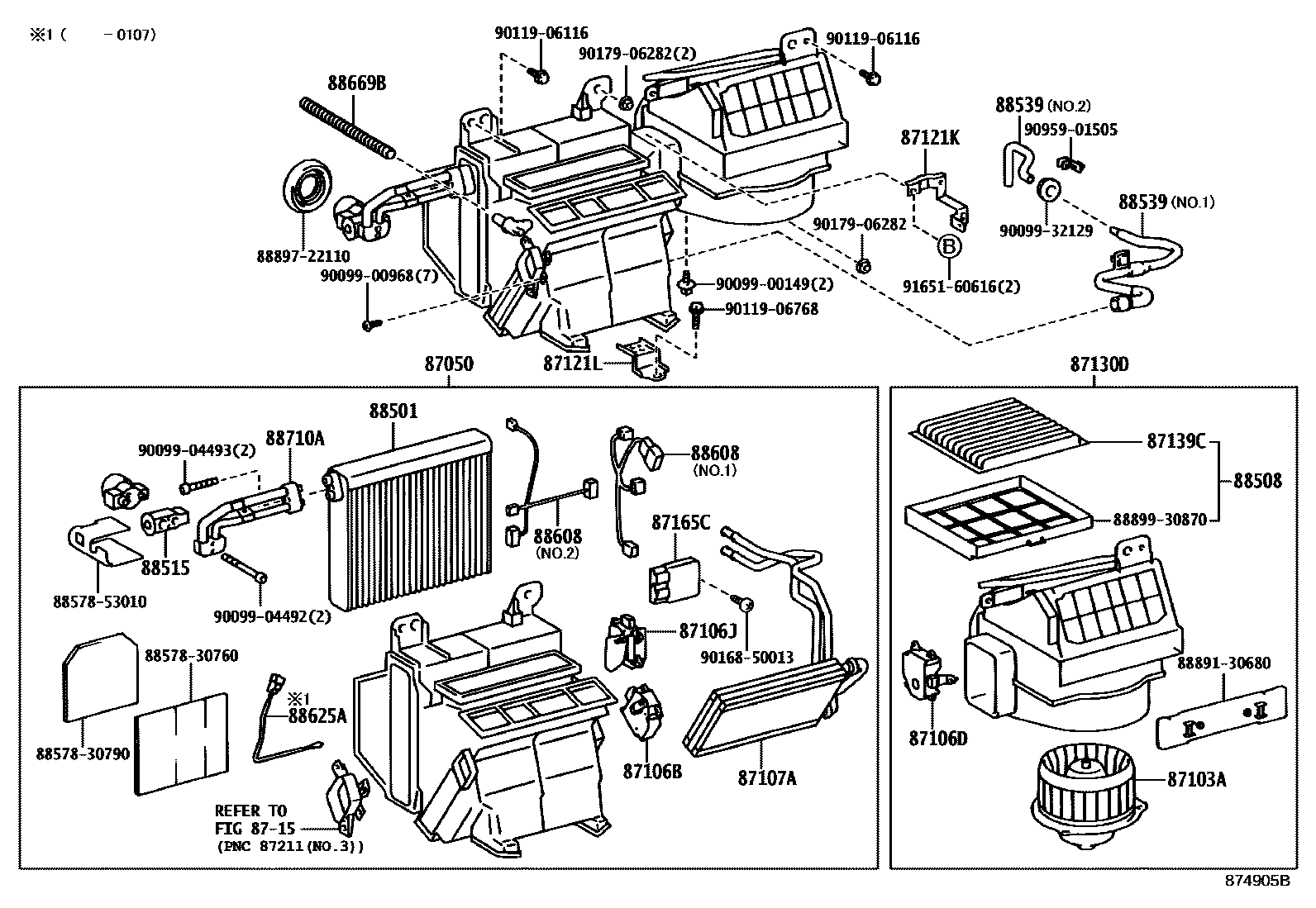

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-53041iJCE10200005-200107

sub87050-53042

main87050-53042iJCE10200107

87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN

main87103-53020iJCE10200005-200107

87106BSERVO SUB-ASSY, DAMPER(FOR COOLING UNIT)

main87106-30340iJCE10200005-200307

sub87106-30341

main87106-30341iJCE10200307

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-30410iJCE10200005-200107

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-30371iJCE10200005-200107

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-53030iJCE10200005-200107

87121KBRACKET, HEATER

main87121-53010iJCE10200005-200107

87121LBRACKET, HEATER

main87121-53030iJCE10200005-200107

87130DBLOWER ASSY

main87130-53040iJCE10200005-200107

87139CFILTER, CLEAN AIR

main87139-48020iJCE10200005-200107

8715

87165CCONTROL, BLOWER MOTOR

main87165-22050iJCE10200005-200107

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-48010iJCE10200005-200107

main88501-53010iJCE10200107

88508FILTER SUB-ASSY, CLEAN AIR

main88508-48020iJCE10200005-200107

88515VALVE, COOLER EXPANSION

main88515-22260iJCE10200405

main88515-30690iJCE10200005-200404

sub88515-22260

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-53020iJCE10200005-200107

NO.1

main88539-53030iJCE10200005-200107

NO.2

88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88608-53010iJCE10200005-200107

NO.1

sub88608-53030

main88608-53020iJCE10200005-200107

NO.2

main88608-53030iJCE10200107

88625ATHERMISTOR, COOLER NO.2

main88625-48010iJCE10200005-200107

88669BHOSE, COOLER AIR

main88669-53020iJCE10200005-200107

88710ATUBE ASSY, AIR CONDITIONER

main88710-3A150iJCE10200005-200107

8857830760PAKING, COOLER AIR DUCT

main88578-30760

8857830790PAKING, COOLER AIR DUCT

main88578-30790

8857853010PAKING, COOLER AIR DUCT

main88578-53010

8889130680PACKING (FOR COOLER)

main88891-30680

8889722110VALVE, COOLER MAGNET

main88897-22110

8889930870COVER, EVAPORATOR

main88899-30870

9009900149

main90099-00149

9009900968

main90099-00968

9009904492

main90099-04492

9009904493

main90099-04493

9009932129

main90099-32129

9011906116

main90119-06116

9011906768

main90119-06768

9016850013

main90168-50013

9017906282

main90179-06282

9095901505

main90959-01505

9165160616

main91651-60616

37 parts on this diagram · 2 diagrams in section
