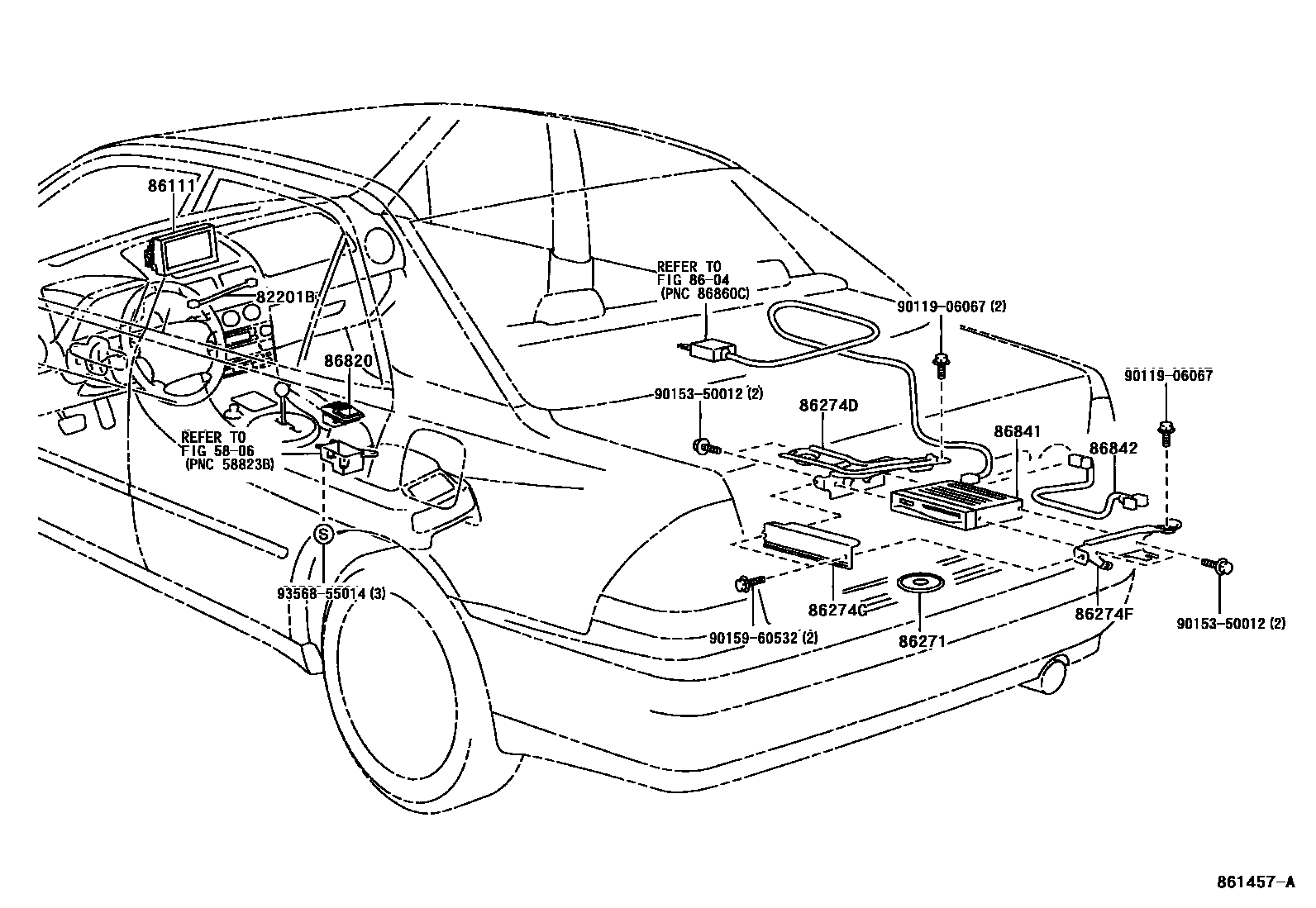

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1

5806

82201BWIRE, INSTRUMENT PANEL

main82201-53010iJCE10200107

8604

86111MULTI-DISPLAY

main86111-53030iJCE10200107-200507

PANASONIC

86271DISC, DISC PLAYER

main86271-33030iJCE10200107-200208

sub86271-33031

main86271-33031iJCE10200208-200308

main86271-33032iJCE10200308-200408

main86271-33033iJCE10200408

86274DBRACKET, DISC PLAYER

main86274-53010iJCE10200107

86274FBRACKET, DISC PLAYER, NO.2

main86274-53020iJCE10200107

86274GBRACKET, DISC PLAYER, NO.3

main86274-53060iJCE10200107

86820CONTROLLER ASSY, NAVIGATION

main86820-53040iJCE10200107

86841COMPUTER, NAVIGATION

main86841-53030iJCE10200107

86842WIRE, NAVIGATION, NO.1

main86842-53010iJCE10200107

9011906067

main90119-06067

9015350012

main90153-50012

9015960532

main90159-60532

9356855014

main93568-55014

15 parts on this diagram · 3 diagrams in section
