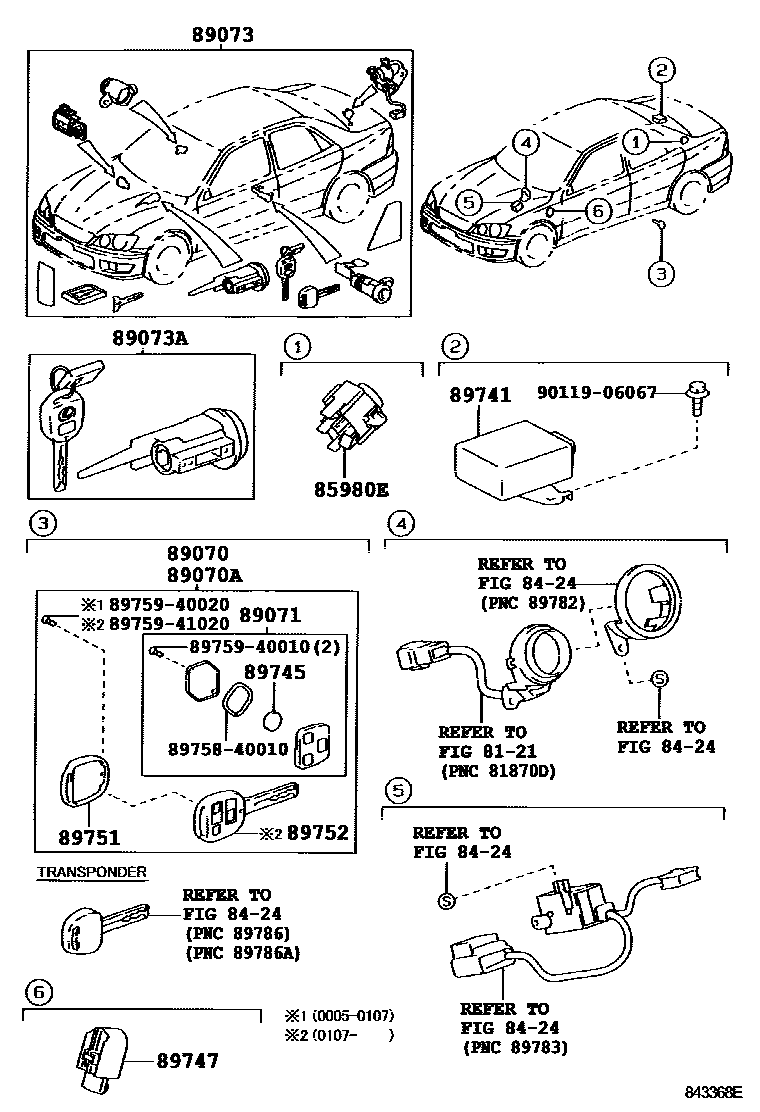

WIRELESS DOOR LOCK

8121

8424

85980ERELAY ASSY, DOOR CONTROL

main85980-22210iJCE10200005-200107

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-53350iJCE10200005-200107

main89070-53530iJCE10..SED200107-200502

sub89070-53531

main89070-53531iJCE10..SED200503-200507

main89070-53620iJCE10..WG200107-200503

sub89070-53621

main89070-53621iJCE10..WG200504-200507

89070ATRANSMITTER, DOOR CONTROL (CUT KEY)

main89070-53360iJCE10200005-200107

main89070-53660iJCE10..SED200107-200502

sub89070-53661

main89070-53661iJCE10..SED200503

main89070-53750iJCE10..WG200107-200502

sub89070-53751

main89070-53751iJCE10..WG200503

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-24020iJCE10200005-200008

sub89071-24021

main89071-24021iJCE10200008-200507

main89071-60010iJCE10..WG200107-200507

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main69005-53110iJCE10..SED200107-200502

sub69005-53111

main69005-53111iJCE10..SED200503-200507

main69005-53210iJCE10..WG200107-200502

sub69005-53211

main69005-53211iJCE10..WG200503-200507

main89073-53230iJCE10200005-200107

89073AIGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)

main89073-53220iJCE10200005-200107

89741RECEIVER, DOOR CONTROL

main89741-53070iJCE10200005-200107

main89741-53090iJCE10..WG200107

89745BATTERY, TRANSMITTER

main89745-40010iJCE10200005-200507

89747BUZZER, WIRELESS DOOR LOCK

main89747-51010iJCE10200005-200107

89751COVER, TRANSMITTER HOUSING

main89751-53011iJCE10..SED200503-200507

89752CASE, TRANSMITTER HOUSING

main89752-33070iJCE10200107-200507

BLANK KEY

main89752-33080iJCE10200107-200507

CUT KEY

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010

8975940020SCREW, DOOR CONTROL TRANSMITTER

main89759-40020

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

9011906067

main90119-06067

18 parts on this diagram · 1 diagram in section
