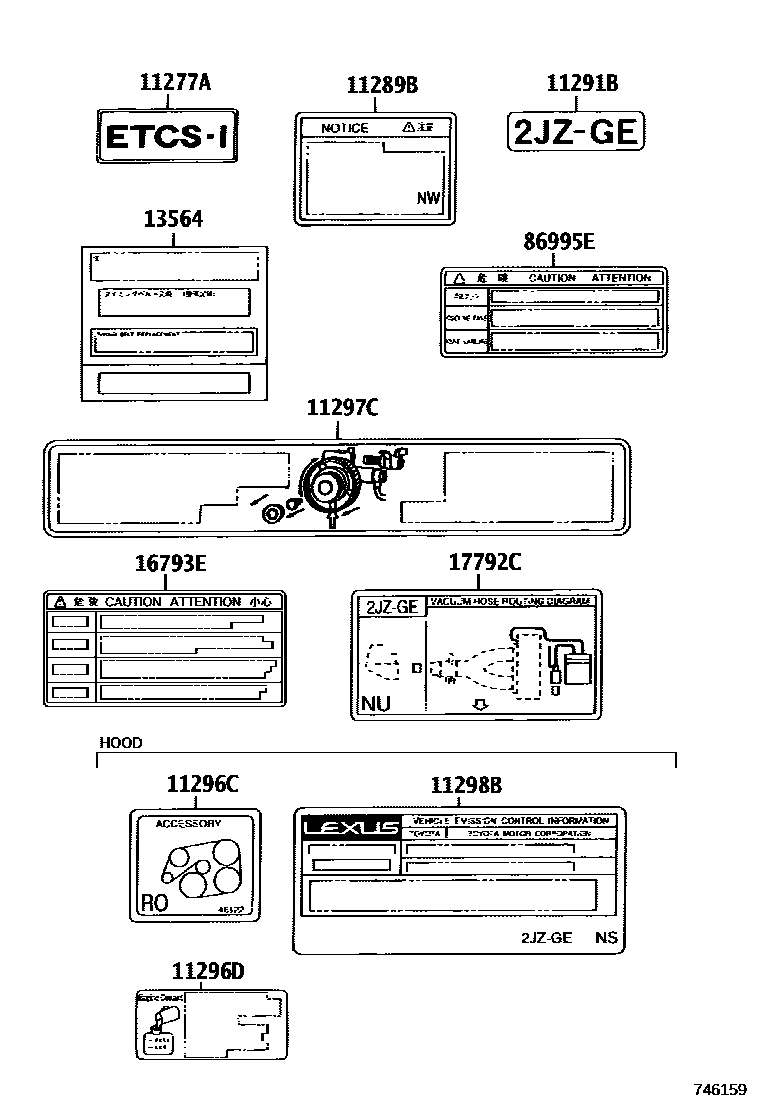

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM(1/4) 0002 1ENGINE ROOM, EXTERIOR, INTERI0003 1ENGINE ROOM, EXTERIOR, INTERI0004 1ENGINE ROOM, EXTERIOR, INTERI

11277APLATE, ENGINE SPECIFICATION, NO.2

main11277-46120iJCE10200005-200507

11289BLABEL, SPARK PLUG NOTICE

main11289-46010iJCE10200005-200507

11291BPLATE, ENGINE NAME

main11291-46010i2JZGE..JCE10200005-200007

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-46122iJCE10200005-200507

11296DLABEL, ENGINE SERVICE INFORMATION

main11296-27020i2JZGE..JCE10200310-200507

11297CLABEL, ENGINE SERVICE INFORMATION, NO.2

main11297-46020iJCE10200005-200507

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-46180iJCE10200005-200107

main11298-46181i2JZGE..JCE10200107-200208

main11298-46182i2JZGE..JCE10200208-200308

main11298-46183i2JZGE..JCE10200308-200408

main11298-46184i2JZGE..JCE10200408-200507

13564LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010iJCE10200005-200107

16793ELABEL, COOLING FAN CAUTION

main16793-50010i2JZGE..JCE10200411-200507

17792CLABEL, ENGINE VACUUM HOSE INFORMATION

main17792-46110iJCE10200005-200507

86995ELABEL, CAUTION

main88723-20081iJCE10200005-200411

sub16793-31070

11 parts on this diagram · 4 diagrams in section
