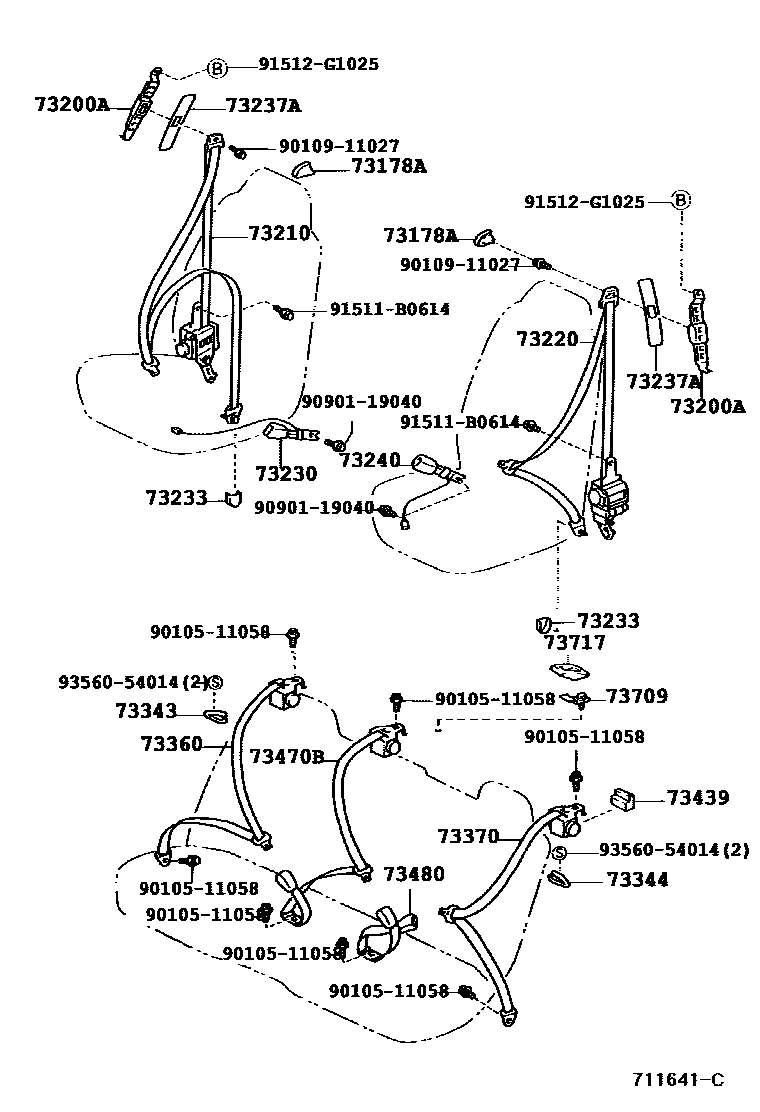

SEAT BELT & CHILD RESTRAINT SEAT
73178ACAP, SEAT BELT ANCHOR COVER
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
73220BELT ASSY, FRONT SEAT OUTER, LH
73230BELT ASSY, FRONT SEAT INNER, RH
IVORY,TRIM0#
BLACK,TRIM2#
W(POWER SEAT),IVORY,TRIM0#
W(POWER SEAT),BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
W(POWER SEAT),IVORY,TRIM0#
W(POWER SEAT),BLACK,TRIM2#
73233COVER, LAP BELT OUTER ANCHOR
73237ACOVER, SHOULDER BELT ANCHOR
IVORY,TRIM0#
MD.CHARCOAL,TRIM2#
73240BELT ASSY, FRONT SEAT INNER, LH
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
W(POWER SEAT),IVORY,TRIM0#
W(POWER SEAT),BLACK,TRIM2#
73343GUIDE, REAR SEAT SHOULDER BELT, RH
73344GUIDE, REAR SEAT SHOULDER BELT, LH
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
BLACK,TRIM2#
IVORY,TRIM0#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
BLACK,TRIM2#
IVORY,TRIM0#
73439CUSHION, REAR SEAT BELT RETRACTOR
73470BBELT ASSY, REAR SEAT INNER W/CENTER, RH
BLACK,TRIM2#
IVORY,TRIM0#
73480BELT ASSY, REAR SEAT INNER W/CENTER, LH
73709BRACKET SUB-ASSY, TETHER ANCHOR
73717COVER, CHILD RESTRAINT SEAT TETHER ANCHOR
TYPE B:REFER TO ILLUSTRATION,IVORY,TRIM0#
TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM2#
9010511058
main90105-11058
9010911027
main90109-11027
9090119040
main90901-19040
91511B0614
main91511-B0614
91512G1025
main91512-G1025
9356054014
main93560-54014
23 parts on this diagram · 2 diagrams in section
