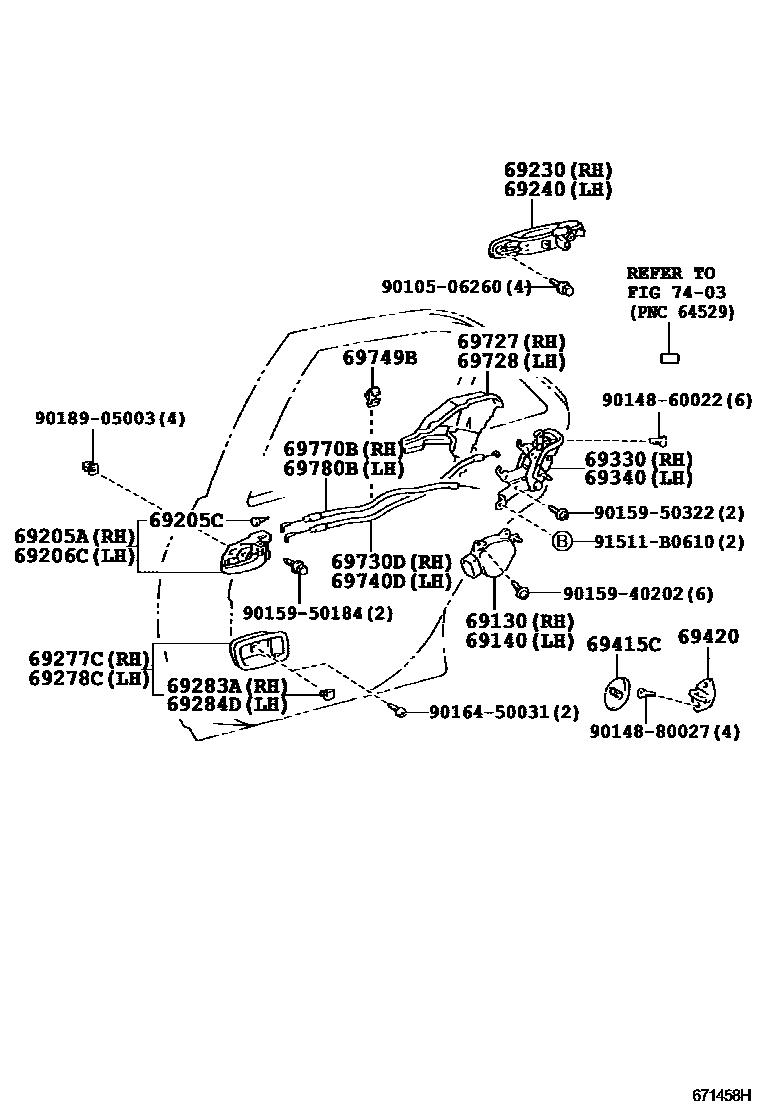

REAR DOOR LOCK & HANDLE

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-51010iJCE10200005-200107

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-51010iJCE10200005-200107

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-47010-A1iJCE10200005-200107

IVORY,TRIM0#

sub69205-47010

main69205-47010-C0iJCE10200005-200107

BLACK,TRIM2#

sub69205-47010

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014iJCE10200005-200107

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-47010-A1iJCE10200005-200107

IVORY,TRIM0#

sub69206-47010

main69206-47010-C0iJCE10200005-200107

BLACK,TRIM2#

sub69206-47010

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-53020-A0iJCE10200005-200107

SU. WHITE PM.,051

main69230-53020-B0iJCE10200005-200107

SILVER ME.,1C0

main69230-53020-B1iJCE10200005-200107

DK.GRAY M.M.,1C6

main69230-53020-C0iJCE10200005-200107

BLACK,202

main69230-53020-D0iJCE10200005-200107

RED M.M.,3N3

main69230-53020-F0iJCE10200005-200107

SUPER BRIGHT YELLOW,576

main69230-53020-G0iJCE10200005-200107

DK.GREEN MC.,6Q7

main69230-53020-J0iJCE10200005-200107

BLUE MC.,8M6

main69230-53030-A1iJCE10200107

WHITE PEARL CS.,062

main69230-53030-B0iJCE10200107

SILVER ME.,1C0

main69230-53030-B1iJCE10200107

DK.GRAY M.M.,1C6

main69230-53030-B2iJCE10..SED200401-200406

SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),GRAY ME.,1D2

main69230-53030-B2iJCE10..SED200301-200306

SPORTS DESIGN(USA/HAWAII/P.RICO),GRAY ME.,1D2

main69230-53030-C0iJCE10200107

BLACK,202

main69230-53030-D0iJCE10200107

SUPER RED 5,3P0

main69230-53030-D1iJCE10..SED200401-200406

SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),SHELL ME.,3Q4

main69230-53030-E0iJCE10200308

BEIGE ME.,4R4

main69230-53030-F0iJCE10200107-200308

SUPER BRIGHT YELLOW,576

main69230-53030-F1iJCE10200107-200308

GOLD ME.,585

main69230-53030-G0iJCE10200107

DARK GREEN MC.,6R4

main69230-53030-J0iJCE10200107-200308

DK.BLUE MC.,8N8

main69230-53030-J2iJCE10200308

GRAYISH BLUE ME.,8N6

main69230-53030-J3iJCE10200308

DK.BLUE M.M.,8P4

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-53020-A0iJCE10200005-200107

SU. WHITE PM.,051

main69240-53020-B0iJCE10200005-200107

SILVER ME.,1C0

main69240-53020-B1iJCE10200005-200107

DK.GRAY M.M.,1C6

main69240-53020-C0iJCE10200005-200107

BLACK,202

main69240-53020-D0iJCE10200005-200107

RED M.M.,3N3

main69240-53020-F0iJCE10200005-200107

SUPER BRIGHT YELLOW,576

main69240-53020-G0iJCE10200005-200107

DK.GREEN MC.,6Q7

main69240-53020-J0iJCE10200005-200107

BLUE MC.,8M6

main69240-53030-A1iJCE10200107

WHITE PEARL CS.,062

main69240-53030-B0iJCE10200107

SILVER ME.,1C0

main69240-53030-B1iJCE10200107

DK.GRAY M.M.,1C6

main69240-53030-B2iJCE10..SED200401-200406

SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),GRAY ME.,1D2

main69240-53030-B2iJCE10..SED200301-200306

SPORTS DESIGN(USA/HAWAII/P.RICO),GRAY ME.,1D2

main69240-53030-C0iJCE10200107

BLACK,202

main69240-53030-D0iJCE10200107

SUPER RED 5,3P0

main69240-53030-D1iJCE10..SED200401-200406

SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),SHELL ME.,3Q4

main69240-53030-E0iJCE10200308

BEIGE ME.,4R4

main69240-53030-F0iJCE10200107-200308

SUPER BRIGHT YELLOW,576

main69240-53030-F1iJCE10200107-200308

GOLD ME.,585

main69240-53030-G0iJCE10200107

DARK GREEN MC.,6R4

main69240-53030-J0iJCE10200107-200308

DK.BLUE MC.,8N8

main69240-53030-J2iJCE10200308

GRAYISH BLUE ME.,8N6

main69240-53030-J3iJCE10200308

DK.BLUE M.M.,8P4

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-22090-A1iJCE10200005-200107

IVORY,TRIM0#

sub69277-22090

main69277-22090-C0iJCE10200005-200107

BLACK,TRIM2#

sub69277-22090

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69278-22050-A1iJCE10200005-200107

IVORY,TRIM0#

sub69278-22050

main69278-22050-C0iJCE10200005-200107

BLACK,TRIM2#

sub69278-22050

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-A1iJCE10200005-200107

IVORY,TRIM0#

sub69283-30040

main69283-30040-C0iJCE10200005-200107

BLACK,TRIM2#

sub69283-30040

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-30040-A1iJCE10200005-200107

IVORY,TRIM0#

sub69284-30040

main69284-30040-C0iJCE10200005-200107

BLACK,TRIM2#

sub69284-30040

69330LOCK ASSY, REAR DOOR, RH

main69330-53020iJCE10200005-200307

sub69330-53021

main69330-53021iJCE10200307

69340LOCK ASSY, REAR DOOR, LH

main69340-53020iJCE10200005-200307

sub69340-53021

main69340-53021iJCE10200307

69415CCOVER, DOOR LOCK STRIKER, REAR

main69415-30020iJCE10200005-200107

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-51010iJCE10200005-200107

69727PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH

main69727-53010iJCE10200005-200107

69728PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH

main69728-53010iJCE10200005-200107

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-53010iJCE10200005-200107

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-53010iJCE10200005-200107

69749BCLAMP, REAR DOOR LOCK LINK

main69749-30050iJCE10200005-200107

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-53010iJCE10200005-200107

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-53020iJCE10200005-200107

7403

9010506260

main90105-06260

9014860022

main90148-60022

9014880027

main90148-80027

9015940202

main90159-40202

9015950184

main90159-50184

9015950322

main90159-50322

9016450031

main90164-50031

9018905003

main90189-05003

91511B0610

main91511-B0610

32 parts on this diagram · 1 diagram in section
