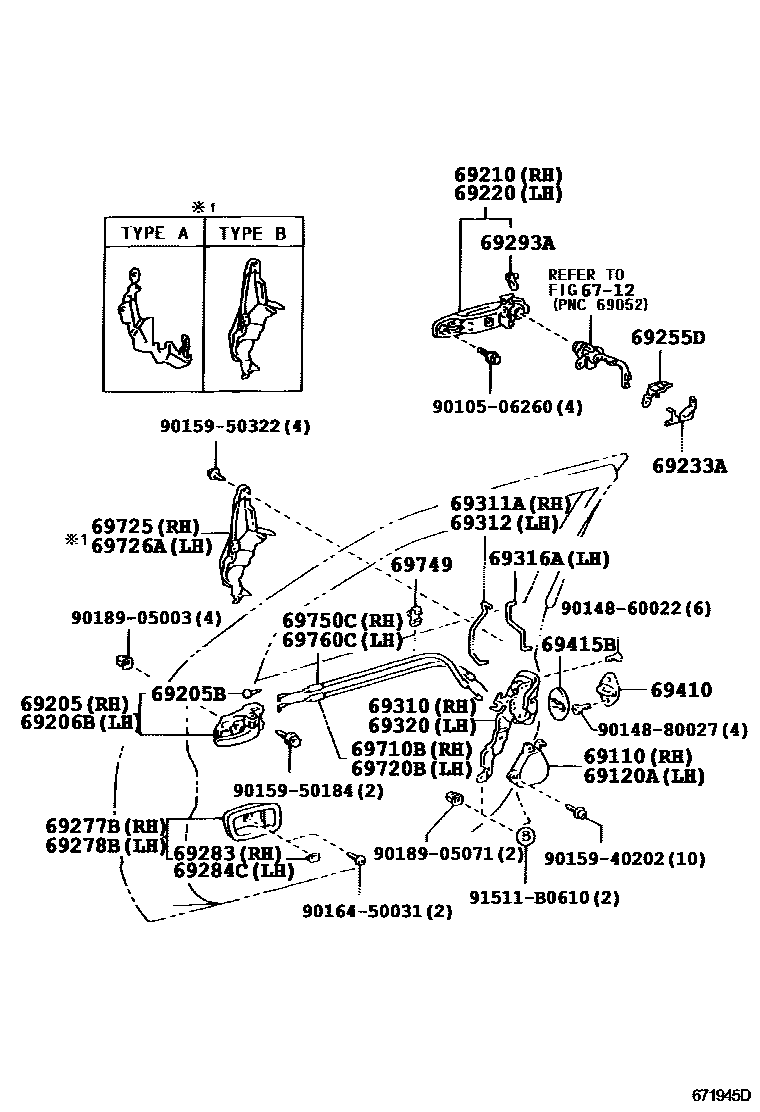

FRONT DOOR LOCK & HANDLE

6712

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-53020iJCE10200005-200308

main69110-53040iJCE10200308

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-53030iJCE10200005-200308

main69120-53050iJCE10200308

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-47010-A1iJCE10200005-200107

IVORY,TRIM0#

sub69205-47010

main69205-47010-C0iJCE10200005-200107

BLACK,TRIM2#

sub69205-47010

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iJCE10200005-200107

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-47010-A1iJCE10200005-200107

IVORY,TRIM0#

sub69206-47010

main69206-47010-C0iJCE10200005-200107

BLACK,TRIM2#

sub69206-47010

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-53020-A1iJCE10200005-200107

SU.WHITE PM,051

main69210-53020-A2iJCE10200107

WHITE PEARL CS.,062

main69210-53020-B0iJCE10200005-200107

SILVER ME.,1C0

main69210-53020-B1iJCE10200005-200107

DK.GRAY M.M.,1C6

main69210-53020-B2iJCE10..SED200401-200406

SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),GRAY ME.,1D2

main69210-53020-B2iJCE10..SED200301-200306

SPORTS DESIGN(USA/HAWAII/P.RICO),GRAY ME.,1D2

main69210-53020-C0iJCE10200005-200107

BLACK,202

main69210-53020-D0iJCE10200005-200107

RED M.M.,3N3

main69210-53020-D1iJCE10200107

SUPER RED 5,3P0

main69210-53020-D2iJCE10..SED200401-200406

SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),SHELL ME.,3Q4

main69210-53020-E0iJCE10200308

BEIGE ME.,4R4

main69210-53020-F0iJCE10200005-200308

SUPER BRIGHT YELLOW,576

main69210-53020-F1iJCE10200107-200308

GOLD ME.,585

main69210-53020-G0iJCE10200005-200107

DK. GREEN MC.,6Q7

main69210-53020-G1iJCE10200107

DARK GREEN MC.,6R4

main69210-53020-J0iJCE10200005-200107

BLUE MC.,8M6

main69210-53020-J1iJCE10200107-200308

DK.BLUE MC.,8N8

main69210-53020-J2iJCE10200308

GRAYISH BLUE ME.,8N6

main69210-53020-J3iJCE10200308

DK.BLUE M.M.,8P4

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-53010-A1iJCE10200005-200107

SU.WHITE PM,051

main69220-53010-A2iJCE10200107

WHITE PEARL CS.,062

main69220-53010-B0iJCE10200005-200107

SILVER ME.,1C0

main69220-53010-B1iJCE10200005-200107

DK.GRAY M.M.,1C6

main69220-53010-B2iJCE10..SED200401-200406

SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),GRAY ME.,1D2

main69220-53010-B2iJCE10..SED200301-200306

SPORTS DESIGN(USA/HAWAII/P.RICO),GRAY ME.,1D2

main69220-53010-C0iJCE10200005-200107

BLACK,202

main69220-53010-D0iJCE10200005-200107

RED M.M.,3N3

main69220-53010-D1iJCE10200107

SUPER RED 5,3P0

main69220-53010-D2iJCE10..SED200401-200406

SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),SHELL ME.,3Q4

main69220-53010-E0iJCE10200308

BEIGE ME.,4R4

main69220-53010-F0iJCE10200005-200308

SUPER BRIGHT YELLOW,576

main69220-53010-F1iJCE10200107-200308

GOLD ME.,585

main69220-53010-G0iJCE10200005-200107

DK. GREEN MC.,6Q7

main69220-53010-G1iJCE10200107

DARK GREEN MC.,6R4

main69220-53010-J0iJCE10200005-200107

BLUE MC.,8M6

main69220-53010-J2iJCE10200107-200308

DK.BLUE MC.,8N8

main69220-53010-J4iJCE10200308

GRAYISH BLUE ME.,8N6

main69220-53010-J5iJCE10200308

DK.BLUE M.M.,8P4

69233ARETAINER, DOOR OUTSIDE HANDLE

main69259-53020iJCE10200005-200107

69255DPROTECTOR, DOOR OUTSIDE HANDLE

main69256-48010iJCE10200107

main69256-53010iJCE10200005-200107

sub69256-48010

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-22090-A1iJCE10200005-200107

IVORY,TRIM0#

sub69277-22090

main69277-22090-C0iJCE10200005-200107

BLACK,TRIM2#

sub69277-22090

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-22050-A1iJCE10200005-200107

IVORY,TRIM0#

sub69278-22050

main69278-22050-C0iJCE10200005-200107

BLACK,TRIM2#

sub69278-22050

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-A1iJCE10200005-200107

IVORY,TRIM0#

sub69283-30040

main69283-30040-C0iJCE10200005-200107

BLACK,TRIM2#

sub69283-30040

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-30040-A1iJCE10200005-200107

IVORY,TRIM0#

sub69284-30040

main69284-30040-C0iJCE10200005-200107

BLACK,TRIM2#

sub69284-30040

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iJCE10200005-200107

LH

main69293-12060iJCE10200005-200107

RH

69310LOCK ASSY, FRONT DOOR, RH

main69310-53050iJCE10200005-200308

sub69310-53051

main69310-53071iJCE10200308

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-53020iJCE10200005-200107

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-53020iJCE10200005-200107

69316ALINK, FRONT DOOR OUTSIDE LOCKING, LH

main69316-53010iJCE10200005-200107

69320LOCK ASSY, FRONT DOOR, LH

main69320-53050iJCE10200005-200308

sub69320-53051

main69320-53081iJCE10200308

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-51010iJCE10200005-200107

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-30020iJCE10200005-200107

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-53010iJCE10200005-200107

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-53010iJCE10200005-200107

69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH

main69725-53020iJCE10200005-200107

TYPE A:REFER TO ILLUSTRATION

main69725-53060iJCE10200005-200107

TYPE B:REFER TO ILLUSTRATION

69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH

main69726-53020iJCE10200005-200107

TYPE A:REFER TO ILLUSTRATION

main69726-53050iJCE10200005-200107

TYPE B:REFER TO ILLUSTRATION

69749CLAMP, FRONT DOOR LOCK LINK

main69749-30050iJCE10200005-200107

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-53010iJCE10200005-200107

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-53010iJCE10200005-200107

9010506260

main90105-06260

9014860022

main90148-60022

9014880027

main90148-80027

9015940202

main90159-40202

9015950184

main90159-50184

9015950322

main90159-50322

9016450031

main90164-50031

9018905003

main90189-05003

9018905071

main90189-05071

91511B0610

main91511-B0610

39 parts on this diagram · 1 diagram in section
