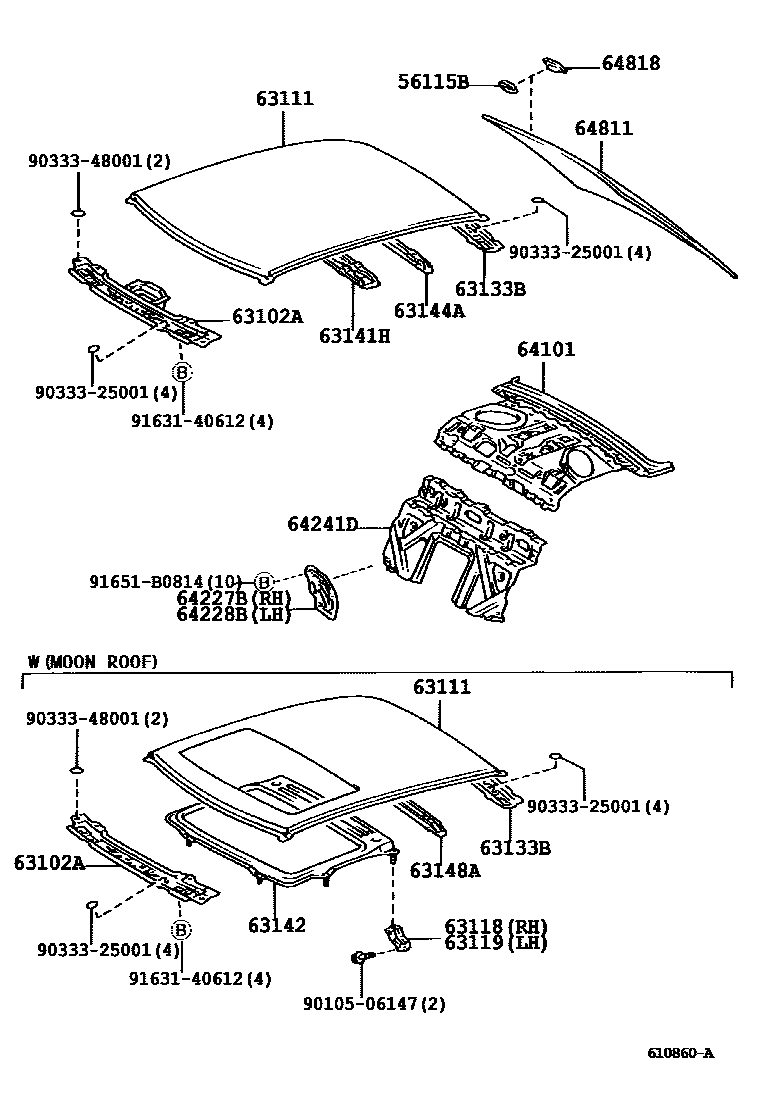

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56116-22050iJCE10200005-200107

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-53900iJCE10200005-200107

main63102-53901iJCE10200005-200107

W(MOON ROOF)

63111PANEL, ROOF

main63111-53010iJCE10200005-200107

main63111-53020iJCE10200005-200107

W(MOON ROOF)

main63111-53030iJCE10..WG200107

main63111-53040iJCE10..WG200107

W(MOON ROOF)

63118SUPPORT, ROOF PANEL, RH

main63118-53010iJCE10200005-200107

63119SUPPORT, ROOF PANEL, LH

main63118-53010iJCE10200005-200107

63133BFRAME, BACK WINDOW

main63133-53010iJCE10200005-200107

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-53010iJCE10200005-200107

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-22070iJCE10200005-200107

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-53010iJCE10200005-200107

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-53010iJCE10200005-200107

64101PANEL SUB-ASSY, UPPER BACK

main64101-53900iJCE10200005-200107

64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1

main64227-53010iJCE10200005-200107

64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2

main64228-53010iJCE10200005-200107

64241DPANEL, ROOM PARTITION

main64241-53010iJCE10200005-200107

64811GLASS, BACK WINDOW

main64811-53070iJCE10200005-200301

*UVCEHTT,T=3.1,GREEN

sub64811-53071

main64811-53071iJCE10..SED200301-200308

*UVCEHTT,T=3.1,GREEN

main64811-53072iJCE10..SED200308

*UVCEHTT,T=3.1,GREEN

64818SPACER, BACK WINDOW GLASS

main56115-22010iJCE10200005-200107

9010506147

main90105-06147

9033325001

main90333-25001

9033348001

main90333-48001

9163140612

main91631-40612

91651B0814

main91651-B0814

21 parts on this diagram · 7 diagrams in section
