E
EPC Data

SIDE MEMBER

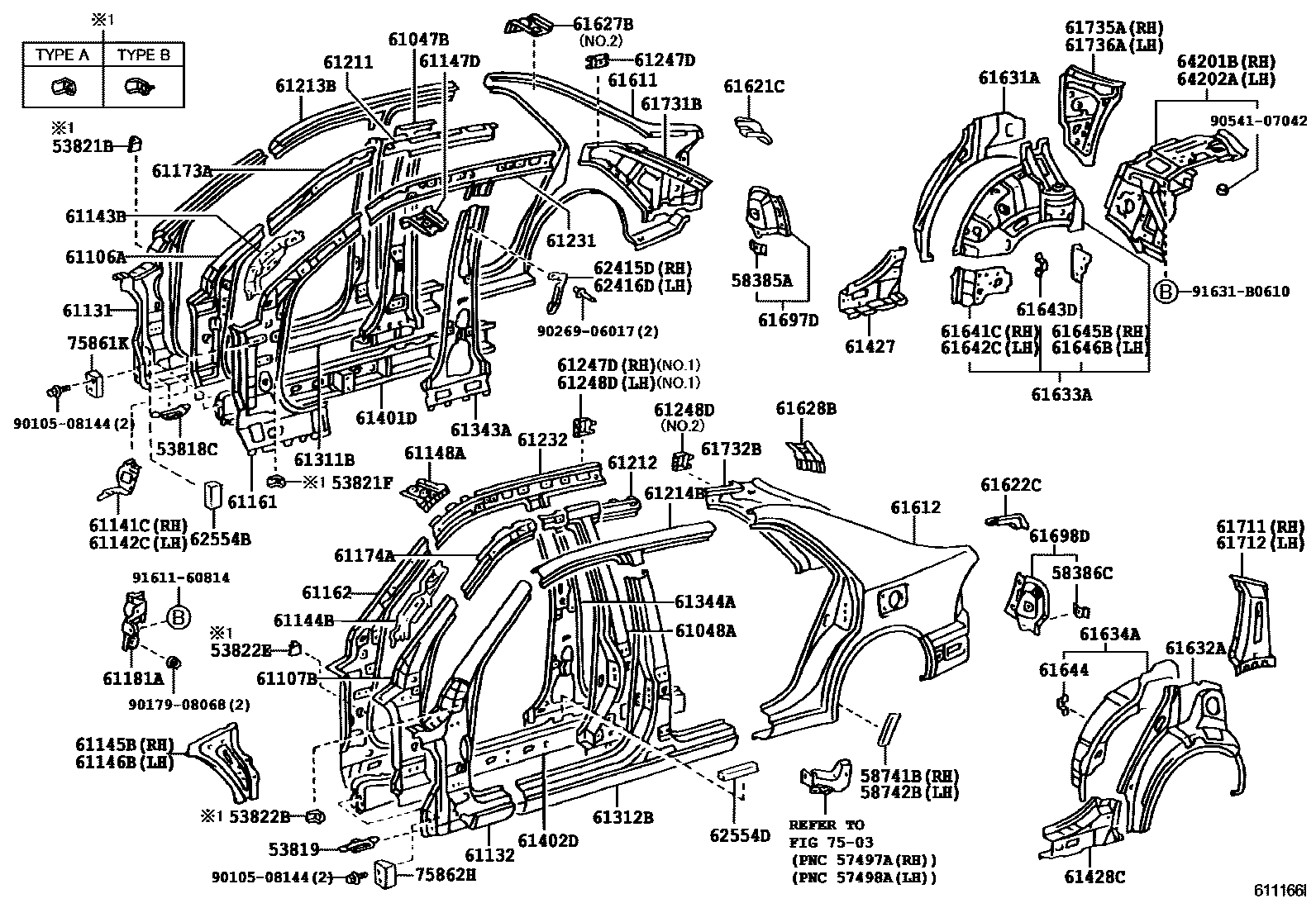

Parts diagram
53818CREINFORCEMENT, FRONT FENDER, REAR RH
main53818-53010i200005-200107
53819REINFORCEMENT, FRONT FENDER, REAR LH
main53819-53010i200005-200107
53821BBRACKET, FRONT FENDER, REAR RH
main53821-16010i200107
TYPE A
main53821-16010i200005-200107
TYPE A:REFER TO ILLUSTRATION
main53821-53010i200107
TYPE B
main53821-53010i200005-200107
TYPE B:REFER TO ILLUSTRATION
53821FBRACKET, FRONT FENDER, REAR NO.2 RH
main53821-16010i200005-200107
TYPE A:REFER TO ILLUSTRATION
53822BBRACKET, FRONT FENDER, REAR LH
main53821-16010i200005-200107
TYPE A:REFER TO ILLUSTRATION
main53821-53010i200005-200107
TYPE B:REFER TO ILLUSTRATION
53822EBRACKET, FRONT FENDER, REAR NO.2 LH
main53821-16010i200005-200107
58385ABRACKET, REAR BUMPER COVER
main58385-53010i200005-200507
58386CBRACKET, REAR BUMPER COVER, LH
main58385-53010i200005-200507
58741BPROTECTOR, QUARTER PANEL, RH
main58741-53010i200005-200107
58742BPROTECTOR, QUARTER PANEL, LH
main58742-53010i200005-200107
61047BREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, CENTER RH
main61047-53010i200005-200107
sub61047-53011
main61047-53011i200107
61048AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, CENTER LH
main61048-53010i200005-200107
sub61048-53011
main61048-53011i200107
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
main61106-53020i200005-200105
main61106-53021i200105-200107
61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
main61107-53020i200005-200105
main61107-53021i200105-200107
61131PILLAR, FRONT BODY, UPPER OUTER RH
main61131-53020i200005-200107
sub61131-53901
sub90333-25003
main61131-53021i200107
sub61131-53901
sub90333-25003
main61131-53040i200107
sub61131-53030
sub90333-25003
61132PILLAR, FRONT BODY, UPPER OUTER LH
main61132-53020i200005-200107
sub61132-53901
main61132-53021i200107
sub61132-53901
main61132-53040i200107
61141CEXTENSION, FRONT PILLAR, UPPER INNER RH
main61141-53010i200005-200107
sub61141-53011
main61141-53011i200107
61142CEXTENSION, FRONT PILLAR, UPPER INNER LH
main61142-53010i200005-200107
sub61142-53011
main61142-53011i200107
61143BGUSSET, FRONT BODY PILLAR, UPPER INNER RH
main61143-53020i200107
61144BGUSSET, FRONT BODY PILLAR, UPPER INNER LH
main61144-53020i200107
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
main61145-53010i200005-200107
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
main61146-53010i200005-200107
61147DEXTENSION, FRONT BODY PILLAR, UPPER OUTER RH
main61147-53010i200005-200103
sub61147-53011
main61147-53011i200103-200107
61148AEXTENSION, FRONT BODY PILLAR, UPPER OUTER LH
main61148-53010i200005-200103
sub61148-53011
main61148-53011i200103-200107
61161PILLAR, FRONT BODY, UPPER INNER RH
main61161-53010i200005-200107
sub61161-53012
main61161-53012i200107-200205
sub61161-53013
main61161-53013i200205
61162PILLAR, FRONT BODY, UPPER INNER LH
main61162-53020i200005-200107
sub61162-53022
main61162-53022i200107-200205
sub61162-53023
main61162-53023i200205
61173AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER RH
main61173-53010i200005-200105
sub61173-53011
main61173-53011i200105-200107
61174AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH
main61174-53010i200005-200105
sub61174-53011
main61174-53011i200105-200107
61181ABRACKET, INSTRUMENT SIDE, RH
main61181-53010i200005-200007
sub61181-53011
main61181-53011i200007-200107
61211RAIL, ROOF SIDE, OUTER RH
main61211-53010i200005-200107
61212RAIL, ROOF SIDE, OUTER LH
main61212-53010i200005-200107
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
main61213-53010i200005-200404
sub61213-53011
main61213-53011i200404
main61213-53020i200107
61214BRAIL, ROOF SIDE, OUTER NO.2 LH
main61214-53010i200005-200404
sub61214-53011
main61214-53011i200404
main61214-53020i200107
61231RAIL, ROOF SIDE, INNER RH
main61231-53020i200005-200107
W(MOON ROOF)
sub61231-53021
main61231-53021i200107
W(MOON ROOF)
main61231-53030i200005-200107
main61231-53040i200107
main61231-53060i200107
W(MOON ROOF)
main61231-53070i200107
61232RAIL, ROOF SIDE, INNER LH
main61232-53011i200107
main61232-53020i200005-200107
W(MOON ROOF)
sub61232-53021
main61232-53021i200107
W(MOON ROOF)
main61232-53030i200005-200107
main61232-53040i200107
main61232-53050i200107
W(MOON ROOF)
61247DBRACKET, ASSIST GRIP, RH
main61247-53010i200005-200107
NO.1
main61248-53010i200005-200107
NO.2
61248DBRACKET, ASSIST GRIP, LH
main61247-53010i200005-200107
NO.2
main61248-53010i200005-200107
NO.1
61311BPILLAR, CENTER BODY, OUTER RH
main61311-53010i200005-200507
sub61311-53011
main61311-53011i200107-200507
61312BPILLAR, CENTER BODY, OUTER LH
main61312-53010i200005-200507
sub61312-53011
main61312-53011i200107-200507
61343APILLAR, CENTER BODY, INNER RH
main61343-53010i200005-200107
sub61343-53011
main61343-53011i200107
61344APILLAR, CENTER BODY, INNER LH
main61344-53010i200005-200107
sub61344-53011
main61344-53011i200107
61401DRAIL SUB-ASSY, NO.1 LOWER OUTER, RH
main61401-53010i200005-200101
sub61401-53011
main61401-53011i200101-200107
61402DRAIL SUB-ASSY, NO.1 LOWER OUTER, LH
main61402-53010i200005-200101
sub61402-53011
main61402-53011i200101-200107
61427REINFORCEMENT, ROCKER PANEL, NO.5 RH
main61427-53010i200005-200107
61428CREINFORCEMENT, ROCKER PANEL, NO.5 LH
main61428-53010i200005-200107
61611PANEL, QUARTER, RH
main61601-53030i200005-200404
sub61601-53031
main61601-53031i200404-200507
main61601-53060i200107-200507
61612PANEL, QUARTER, LH
main61602-53020i200005-200404
sub61602-53021
main61602-53021i200404-200507
main61602-53040i200107-200507
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
main61621-53010i200005-200107
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
main61622-53010i200005-200107
61627BEXTENSION, QUARTER PANEL, UPPER REAR RH
main61627-53010i200005-200107
61628BEXTENSION, QUARTER PANEL, UPPER REAR LH
main61628-53010i200005-200107
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
main61631-53010i200005-200107
main61631-53020i200107
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
main61632-53010i200005-200107
main61632-53020i200107
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
main61607-53020i200005-200106
sub61607-53021
main61607-53021i200106-200107
main61607-53041i200107
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
main61608-53010i200005-200106
sub61608-53011
main61608-53011i200106-200107
main61608-53021i200107
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
main61641-53010i200005-200107
61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH
main61642-53010i200005-200107
61643DPATCH, QUARTER WHEEL HOUSE, NO.1 RH
main58369-47010i200005-200107
61644GUSSET, QUARTER WHEEL HOUSE, CENTER LH
main58369-47010i200005-200107
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
main61645-51010i200005-200107
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
main61646-51010i200005-200107
61697DHOUSING, QUARTER PANEL END, RH
main61697-53900i200005-200107
main61697-53901i200107
61698DHOUSING, QUARTER PANEL END, LH
main61698-53900i200005-200107
main61698-53901i200107
61711PANEL, ROOF SIDE, OUTER RH
main61711-53010i200005-200107
main61711-53020i200107
61712PANEL, ROOF SIDE, OUTER LH
main61712-53010i200005-200107
main61712-53020i200107
61731BPANEL, ROOF SIDE, INNER RH
main61731-53020i200005-200107
main61731-53900i200107
main61731-53901i200107
W(MOON ROOF)
61732BPANEL, ROOF SIDE, INNER LH
main61732-53010i200005-200306
sub61732-53011
main61732-53011i200306
main61732-53900i200107
main61732-53901i200107
W(MOON ROOF)
61735APANEL, ROOF SIDE, INNER REAR RH
main61735-53010i200005-200107
main61735-53020i200107
61736APANEL, ROOF SIDE, INNER REAR LH
main61736-53010i200005-200107
main61736-53020i200107
62415DPANEL, CENTER PILLAR GARNISH, RH
main62415-53010i200107
62416DPANEL, CENTER PILLAR GARNISH, LH
main62416-53010i200107
62554BPAD, PILLAR, NO.4
main62554-30010i200102-200107
62554DPAD, FRONT PILLER
main62554-53030i200107
64201BSTRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, RH
main64201-53010i200005-200107
64202ASTRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, LH
main64202-53010i200005-200107
7503
75861KPROTECTOR, ROCKER PANEL MOULDING, RH
main75861-53010i200101-200107
75862HPROTECTOR, ROCKER PANEL MOULDING, LH
main75862-53010i200101-200107
9010508144
main90105-08144
9017908068
main90179-08068
9026906017
main90269-06017
9054107042
main90541-07042
9161160814
main91611-60814
91631B0610
main91631-B0610

84 parts on this diagram · 4 diagrams in section
