MAT & CARPET
58510CCARPET ASSY, FRONT FLOOR, FRONT
CANADA SPEC,IVORY,TRIM0#
CANADA SPEC,BLACK,TRIM2#
CANADA SPEC,IVORY,TRIM0#
CANADA SPEC,BLACK,TRIM2#
CANADA SPEC,IVORY,TRIM0#
W(HEEL PAD);SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),LIGHT GRAY,TRIM2#
CANADA SPEC,BLACK,TRIM2#
SPORTS DESIGN(USA/HAWAII/P.RICO),GRAY,TRIM21
sub58510-53140
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),LIGHT GRAY,TRIM2#
sub58510-53140
CANADA SPEC,IVORY,TRIM0#
W(HEEL PAD);SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),LIGHT GRAY,TRIM2#
CANADA SPEC,BLACK,TRIM2#
SPORTS DESIGN(USA/HAWAII/P.RICO),GRAY,TRIM21
sub58510-53170
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),LIGHT GRAY,TRIM2#
sub58510-53170
58520CCLIP(FOR FRONT FLOOR CARPET)
58530BCLIP(FOR FRONT FLOOR CARPET)
58559APAD, FRONT FLOOR SIDE, RH
sub58559-53031
58569CPAD, FRONT FLOOR SIDE, LH
sub58569-53041
58571FPAD, FRONT FLOOR, FRONT
sub58571-53051
58572QPAD, FRONT FLOOR, FRONT NO.2
sub58572-53041
58574DPAD, FRONT FLOOR, CENTER NO.2 RH
sub58574-53021
58575EPAD, FRONT FLOOR, REAR NO.1
sub58575-53021
58576CPAD, FRONT FLOOR, REAR NO.2
sub58576-53021
58584CPAD, FRONT FLOOR, CENTER NO.2 LH
sub58584-53021

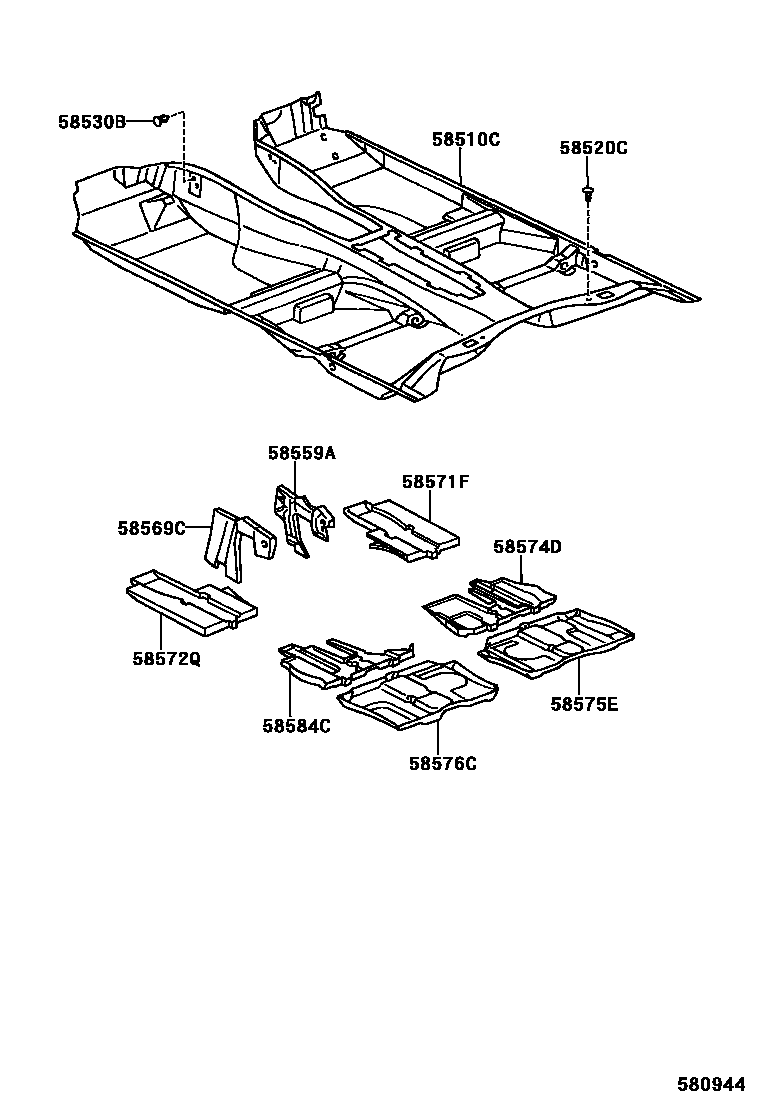

11 parts on this diagram · 1 diagram in section
