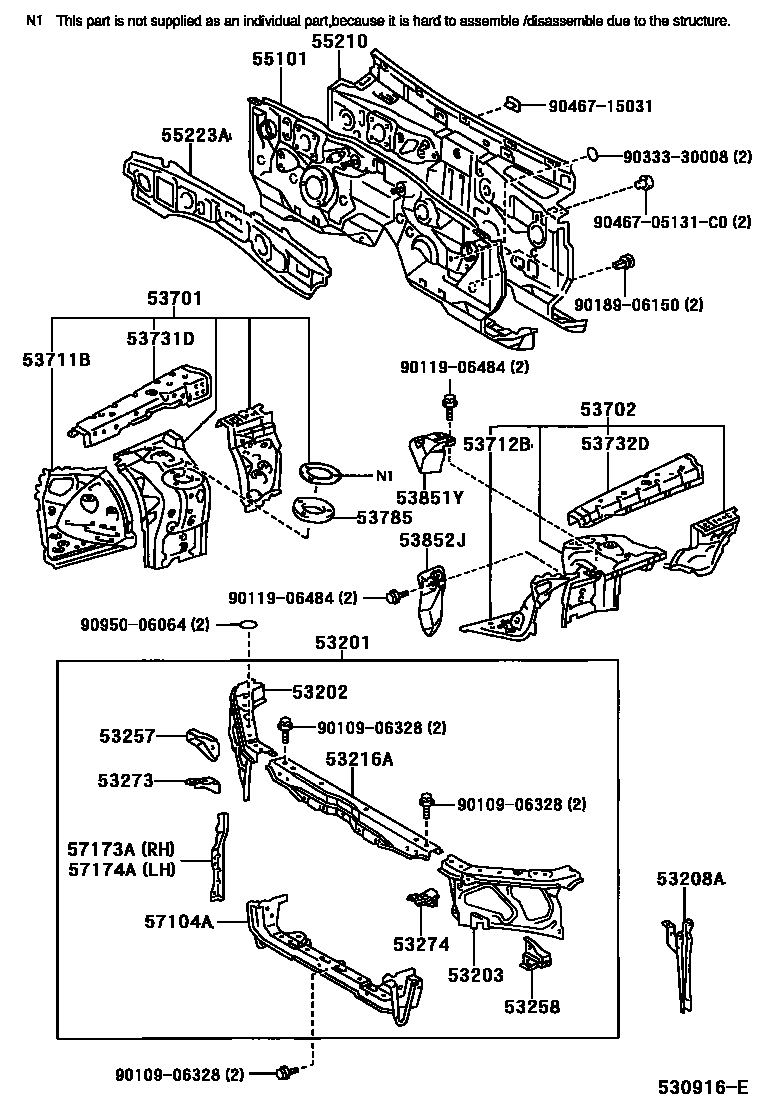

FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53201-53090iJCE10200107

main53201-53903iJCE10200005-200107

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-53902iJCE10200005-200107

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-53902iJCE10200005-200107

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-53010iJCE10200005-200107

53216ASUPPORT, RADIATOR, UPPER

main53216-53010iJCE10200005-200104

sub53216-53011

main53216-53011iJCE10200104-200107

53257BRACKET, FRONT END PANEL MOUNTING, RH

main53257-53010iJCE10200005-200107

53258BRACKET, FRONT END PANEL MOUNTING, LH

main53258-53010iJCE10200005-200107

53273BRACKET, FRONT BUMPER ARM MOUNTING, RH

main53273-53010iJCE10200005-200107

53274BRACKET, FRONT BUMPER ARM MOUNTING, LH

main53274-53010iJCE10200005-200107

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-53030iJCE10200005-200010

sub53701-53031

main53701-53031iJCE10200010-200011

sub53701-53032

main53701-53032iJCE10200011-200303

sub53701-53033

sub90173-10012

main53701-53033iJCE10200303

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-53020iJCE10200005-200010

sub53702-53021

main53702-53021iJCE10200010-200011

sub53702-53022

main53702-53022iJCE10200011-200104

sub53702-53023

main53702-53023iJCE10200104-200105

sub53702-53024

main53702-53024iJCE10200105-200303

sub53702-53025

sub90173-10012

main53702-53025iJCE10200303

53711BAPRON, FRONT FENDER, FRONT RH

main53711-53020iJCE10200005-200107

53712BAPRON, FRONT FENDER, FRONT LH

main53712-53010iJCE10200005-200012

sub53712-53011

main53712-53011iJCE10200012-200107

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53705-53010iJCE10200005-200107

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53706-53010iJCE10200005-200107

53785REINFORCE, FRONT SUSPENSION UPPER ARM, NO.1

main53785-53010iJCE10200005-200107

53851YPAD, FRONT WHEEL OPENING EXTENSION, NO.1

main53851-53010iJCE10200107-200307

sub53851-53011

main53851-53011iJCE10200307

53852JPAD, FRONT WHEEL OPENING EXTENSION, LH

main53852-53010iJCE10200103-200307

sub53852-53011

main53852-53011iJCE10200307

55101PANEL SUB-ASSY, DASH

main55101-53080iJCE10200005-200101

sub55101-53081

main55101-53081iJCE10200101-200107

main55101-53101iJCE10..MTM200107

55210INSULATOR ASSY, DASH PANEL

main55210-53020iJCE10200005-200107

sub55210-53021

main55210-53021iJCE10200107-200302

sub55210-53022

main55210-53022iJCE10200302

55223AINSULATOR, DASH PANEL, OUTER

main55223-53020iJCE10200005-200107

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-51010iJCE10200005-200107

main57104-51030iJCE10200107

57173AREINFORCEMENT, FRONT CROSSMEMBER, NO.3 RH

main57173-53010iJCE10200005-200107

57174AREINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH

main57174-53010iJCE10200005-200107

9010906328

main90109-06328

9011906484

main90119-06484

9018906150

main90189-06150

9033330008

main90333-30008

9046705131C0

main90467-05131C0

9046715031

main90467-15031

9095006064

main90950-06064

31 parts on this diagram · 1 diagram in section
