HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-53020iJCE10200005-200507

53341BINSULATOR, HOOD

main53341-53020iJCE10200005-200307

sub53341-53021

main53341-53021iJCE10200307

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-53010iJCE10200005-200307

sub53381-53011

main53381-53011iJCE10200307

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-53010iJCE10200005-200107

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-53010iJCE10200005-200107

53801FENDER SUB-ASSY, FRONT RH

main53801-53030iJCE10200005-200107

53802FENDER SUB-ASSY, FRONT LH

main53802-53030iJCE10200005-200107

53827BPROTECTOR, FRONT FENDER SIDE PANEL

main53827-53010iJCE10200005-200107

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-53010iJCE10200005-200107

53851DPAD, FRONT WHEEL OPENING EXTENSION, RH

main53851-30020iJCE10200005-200107

53852BPAD, FRONT WHEEL OPENING EXTENSION, LH

main53852-30020iJCE10200005-200107

53861DSEAL, FRONT FENDER TO DOOR HINGE, UPPER RH

main53861-53010iJCE10200107

53862CSEAL, FRONT FENDER TO DOOR HINGE, UPPER LH

main53862-53010iJCE10200107

53863SEAL, FRONT FENDER TO DOOR HINGE, LOWER RH

main53863-53010iJCE10200107

53864SEAL, FRONT FENDER TO DOOR HINGE, LOWER LH

main53864-53010iJCE10200107

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-53010iJCE10200005-200107

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-53010iJCE10200005-200107

53875ALINER, FRONT FENDER, RH

main53875-53010iJCE10..SED200107-200208

sub53875-53011

main53875-53020iJCE10200005-200107

sub53875-53021

main53875-53030iJCE10..WG200107-200208

sub53875-53031

main53875-53080iJCE10..SED200208

main53875-53090iJCE10..WG200208

53876ALINER, FRONT FENDER, LH

main53876-53010iJCE10..SED200107-200208

sub53876-53011

main53876-53020iJCE10200005-200107

sub53876-53021

main53876-53030iJCE10..WG200107-200208

sub53876-53031

main53876-53080iJCE10..SED200208

main53876-53090iJCE10..WG200208

53882BSEAL, FRONT FENDER, RH

main53882-53010iJCE10200107

53882PSEAL, FRONT FENDER, RH

main53882-16030iJCE10200005-200107

53883BSEAL, FRONT FENDER, LH

main53883-53010iJCE10200107

53883KSEAL, FRONT FENDER, LH

main53882-16030iJCE10200005-200107

6101

9011906722

main90119-06722

9015960427

main90159-60427

9015960444

main90159-60444

9015960496

main90159-60496

9017905025

main90179-05025

9017906129

main90179-06129

9018906013

main90189-06013

9018906028

main90189-06028

9018906066

main90189-06066

9046707166

main90467-07166

9046708011

main90467-08011

9046708044

main90467-08044

9046708124

main90467-08124

9054115015

main90541-15015

9095001392

main90950-01392

9095006064

main90950-06064

9095006073

main90950-06073

91641C0614

main91641-C0614

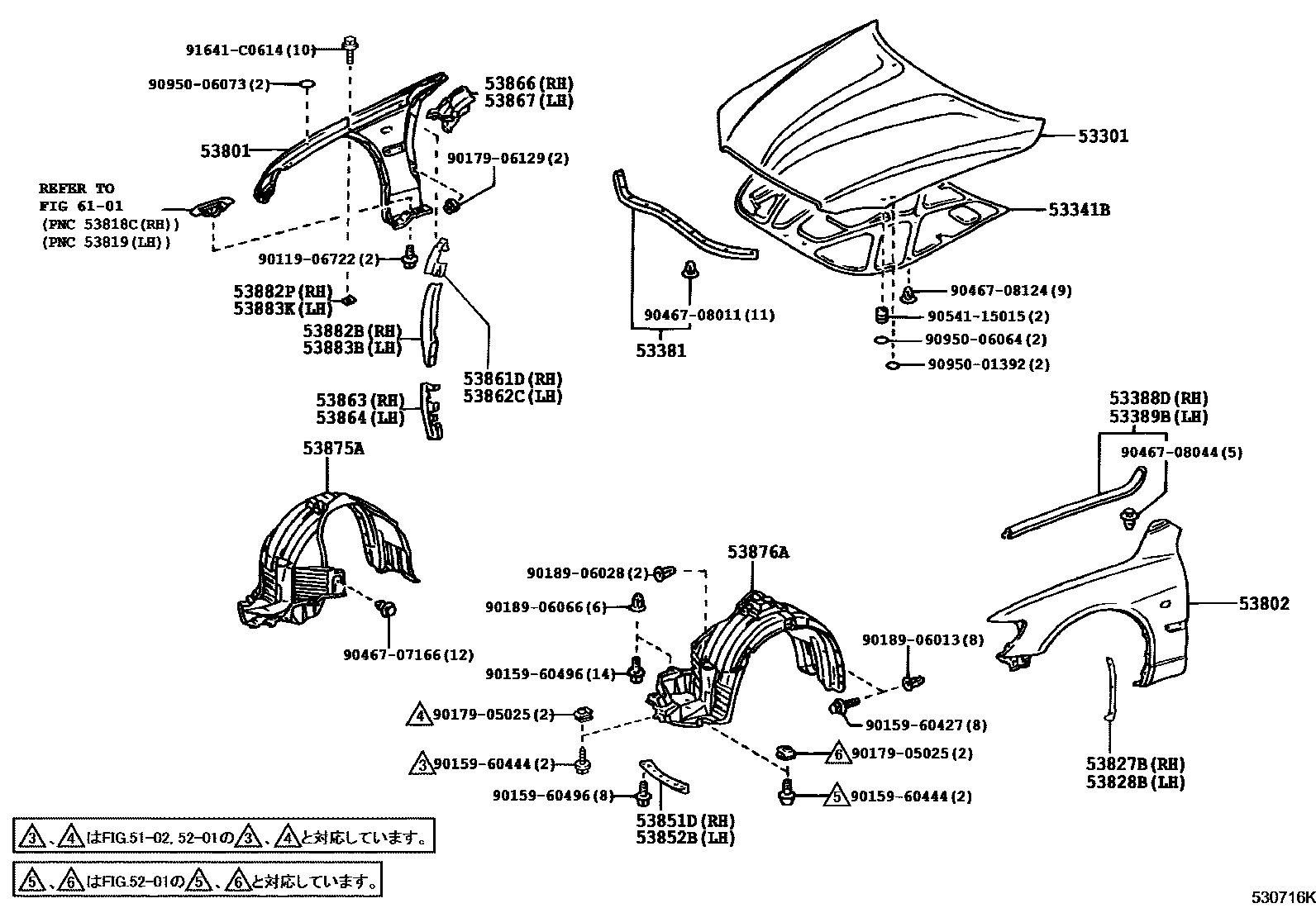

42 parts on this diagram · 1 diagram in section
