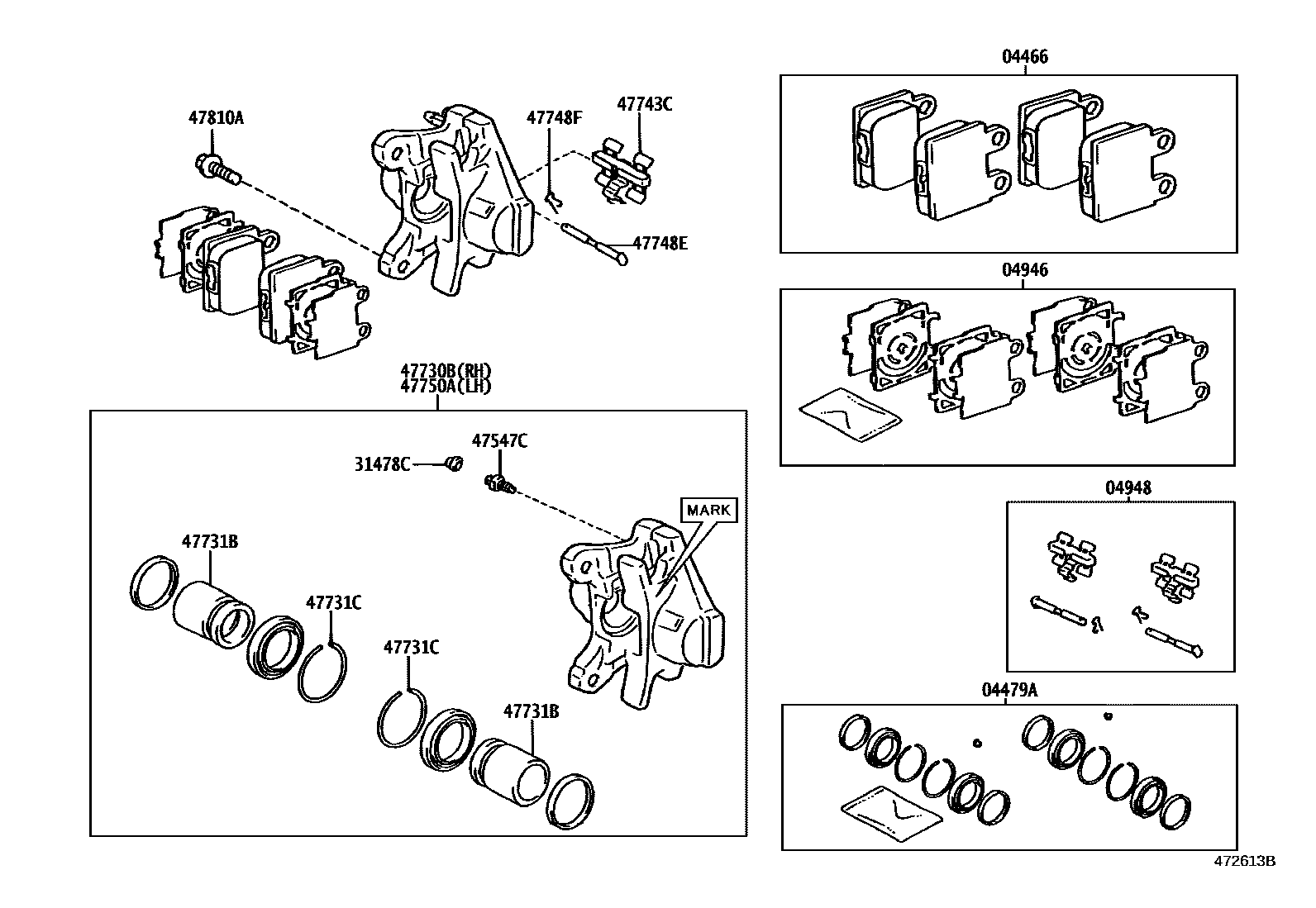

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-30161iJCE10200005-200107

MARK NBK PN529

main04466-30170iJCE10200107-200507

MARK NBK PN529

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30231iJCE10200005-200507

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30090iJCE10200005-200107

main04946-53010iJCE10200107-200507

04948FITTING KIT, DISC BRAKE, REAR

main04948-30071iJCE10200005-200507

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iJCE10200005-200107

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030iJCE10200005-200507

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-30470iJCE10200005-200507

MARK 40

47731BPISTON, REAR DISC BRAKE

main47731-30190iJCE10200005-200507

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-52006iJCE10200005-200507

47743CSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47743-30030iJCE10200005-200507

47748EPIN, W/HOLE(FOR REAR DISC BRAKE)

main47735-30011iJCE10200005-200107

47748FCLIP(FOR REAR DISC BRAKE)

main90468-12028iJCE10200005-200107

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-30470iJCE10200005-200107

MARK 40

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iJCE10200005-200107

14 parts on this diagram · 2 diagrams in section
