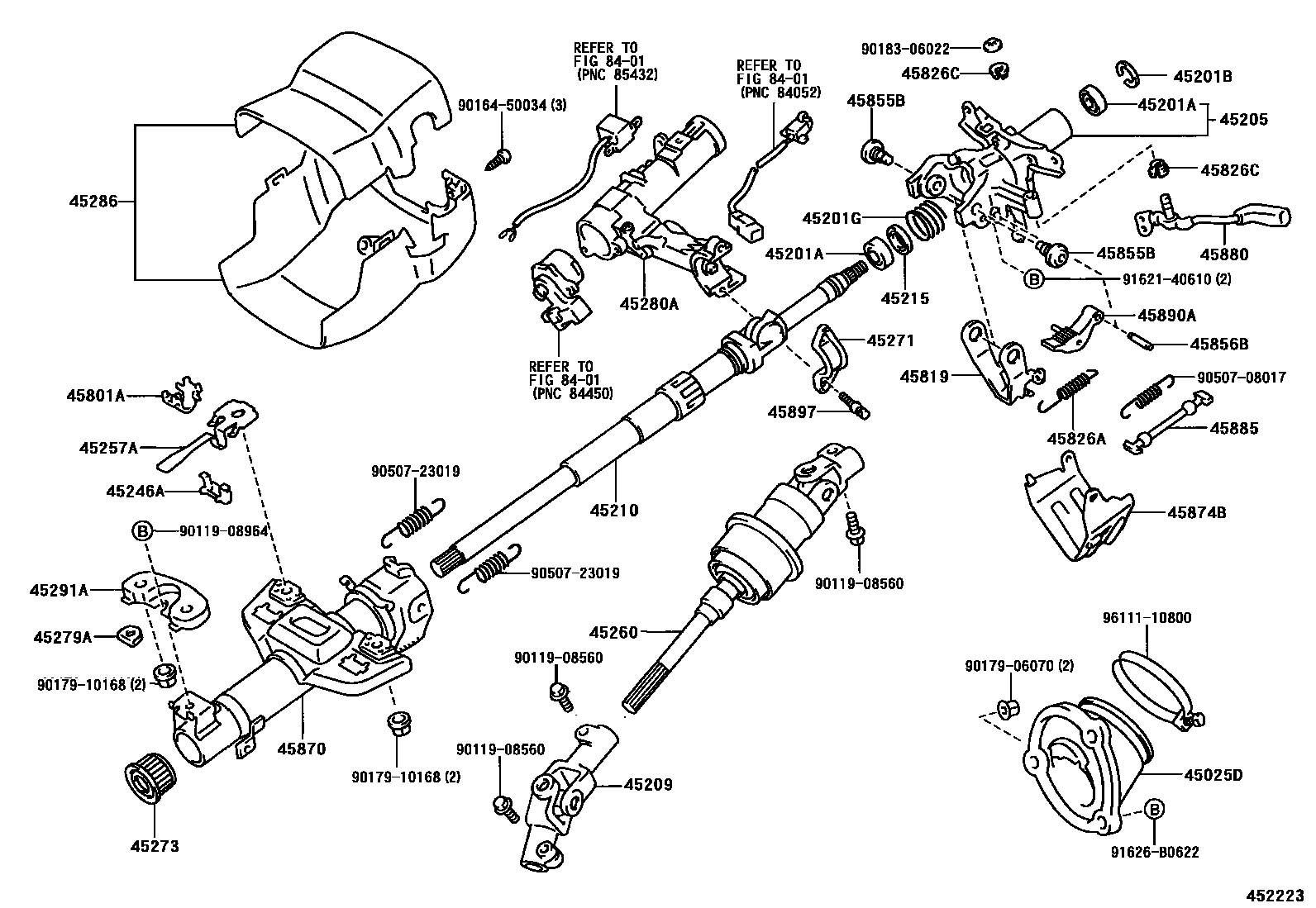

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45205TUBE SUB-ASSY, STEERING COLUMN
45209YOKE SUB-ASSY, STEERING SLIDING
45210SHAFT ASSY, STEERING MAIN
45215COLLAR, MAIN SHAFT BEARING THRUST
45246AGUIDE, STEERING ENERGY ABSORBING PLATE
45257APLATE, STEERING COLUMN ENERGY ABSORBING
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45279AATTACHMENT, STEERING COLUMN TUBE, LWR
45286COVER, STEERING COLUMN
45291ASUPPORT, STEERING COLUMN TUBE
45801APIN SUB-ASSY, STEERING ENERGY ABSORBING
45819RETAINER, TILT LEVER
45826ASPRING, TENSION(FOR STEERING TILT LEVER)
45826CBUSH(FOR STEERING TILT LEVER)
45855BSHAFT, T1LT STEERING, NO.1
45856BSHAFT, T1LT STEERING, NO.2
WHITE
45870TUBE ASSY, STEERING COLUMN
45874BPROTECTOR, STEERING COLUMN, NO.1
45880LEVER ASSY, STEERING TILT
45885LINK, TILT LEVER
45890APAWL ASSY, TILT STEERING
45897BOLT, STEERING LOCK SET
8401
9011908560
main90119-08560
9011908964
main90119-08964
9016450034
main90164-50034
9017906070
main90179-06070
9017910168
main90179-10168
9018306022
main90183-06022
9050708017
main90507-08017
9050723019
main90507-23019
9162140610
main91621-40610
91626B0622
main91626-B0622
9611110800
main96111-10800
41 parts on this diagram · 2 diagrams in section
