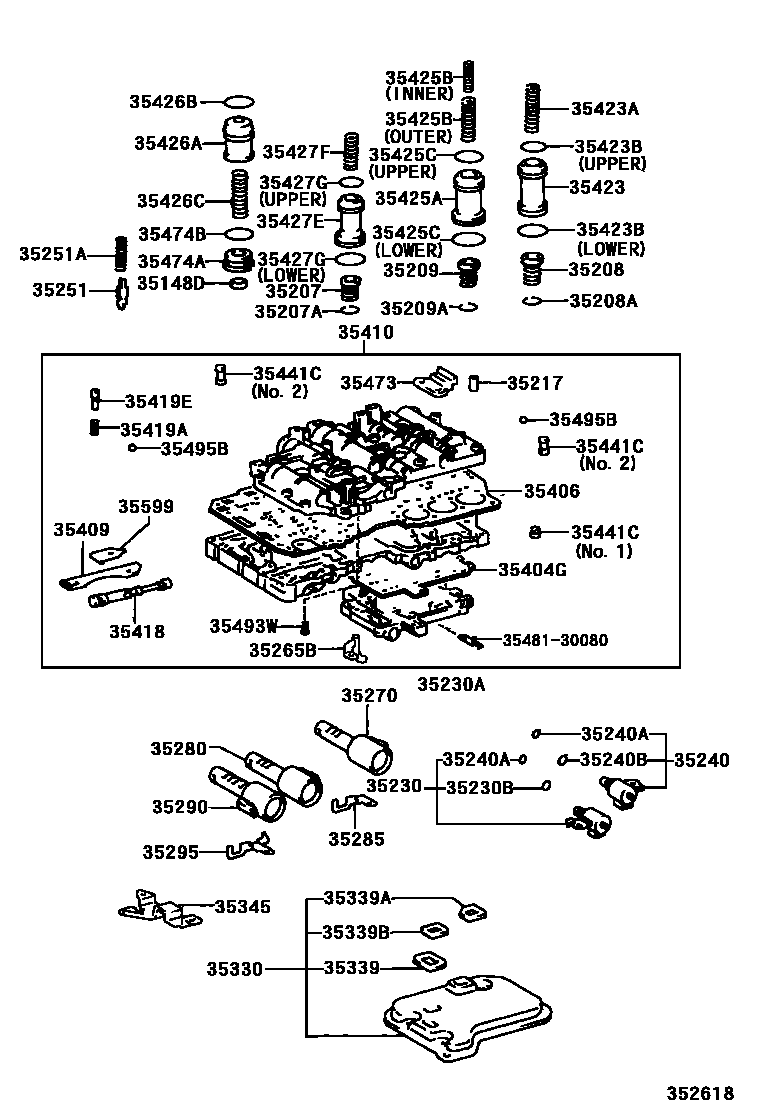

VALVE BODY & OIL STRAINER (ATM)
35148DGASKET (FOR C-O ACCUMULATOR PISTON)
35207SPRING SUB-ASSY, B-0 ACCUMULATOR
35207ARING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING)
35208SPRING SUB-ASSY, B-2 ACCUMULATOR
35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)
35209SPRING SUB-ASSY, C-2 ACCUMULATOR
35209ARING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)
35217VALVE, ACCUMULATOR CONTROL, NO.2
35230SOLENOID ASSY, TRANSMISSION 3WAY, NO.2
35230ARING, O, NO.1(FOR TRANSMISSION 3WAY SOLENOID NO.2)
35230BRING, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID NO.2)
35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY
35240ARING, O, NO.1 (FOR TRANSMISSION 3WAY SOLENOID)
35240BRING, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID)
35251BODY, CHECK BALL
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
35265BTUBE, OIL COOLER RETURN
35270SOLENOID ASSY, SHIFT CONTROL
35280SOLENOID ASSY, LOCK UP CONTROL
35285PLATE, SOLENOID LOCK
35290SOLENOID ASSY, LINE PRESSURE CONTROL
35295PLATE, SOLENOID LOCK, NO.2
35330STRAINER ASSY, VALVE BODY OIL
35339GASKET, OIL STRAINER
35339AGASKET, OIL STRAINER, NO.1
35339BGASKET, OIL STRAINER, NO.2
35345PLATE, OIL GUIDE
35404GPLATE SUB-ASSY, VALVE BODY, NO.2
35406PLATE SUB-ASSY, VALVE BODY
35409SPRING SUB-ASSY, MANUAL DETENT
35410BODY ASSY, TRANSMISSION VALVE
35418VALVE, MANUAL
35419ASPRING, COMPRESSION (FOR CHECK VALVE)
35419EVALVE, CHECK, NO.3
35423PISTON, B-2 ACCUMULATOR
35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
35423BRING, O (FOR B-2 ACCUMULATOR PISTON)
UPPER
INNER
LOWER
35425APISTON, C-2 ACCUMULATOR
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
OUTER
INNER
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
UPPER
LOWER
35426APISTON, C-0 ACCUMULATOR
35426BRING, O (FOR C-0 ACCUMULATOR PISTON)
35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)
35427EPISTON, B-0 ACCUMULATOR
35427FSPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)
35427GRING, O (FOR B-0 ACCUMULATOR PISTON)
UPPER
LOWER
35441CSTRAINER, SOLENOID OIL
NO.1
NO.2
35473COVER, TRANSMISSION VALVE BODY
35474ACOVER, ACCUMULATOR
35474BRING, O (FOR ACCUMULATOR COVER)
35493WSEAT, VALVE BODY
35495BBALL, CHECK, NO.1
35599COVER, MANUAL DETENT SPRING
3548130080BODY, GOVERNOR
main35481-30080
54 parts on this diagram · 5 diagrams in section
