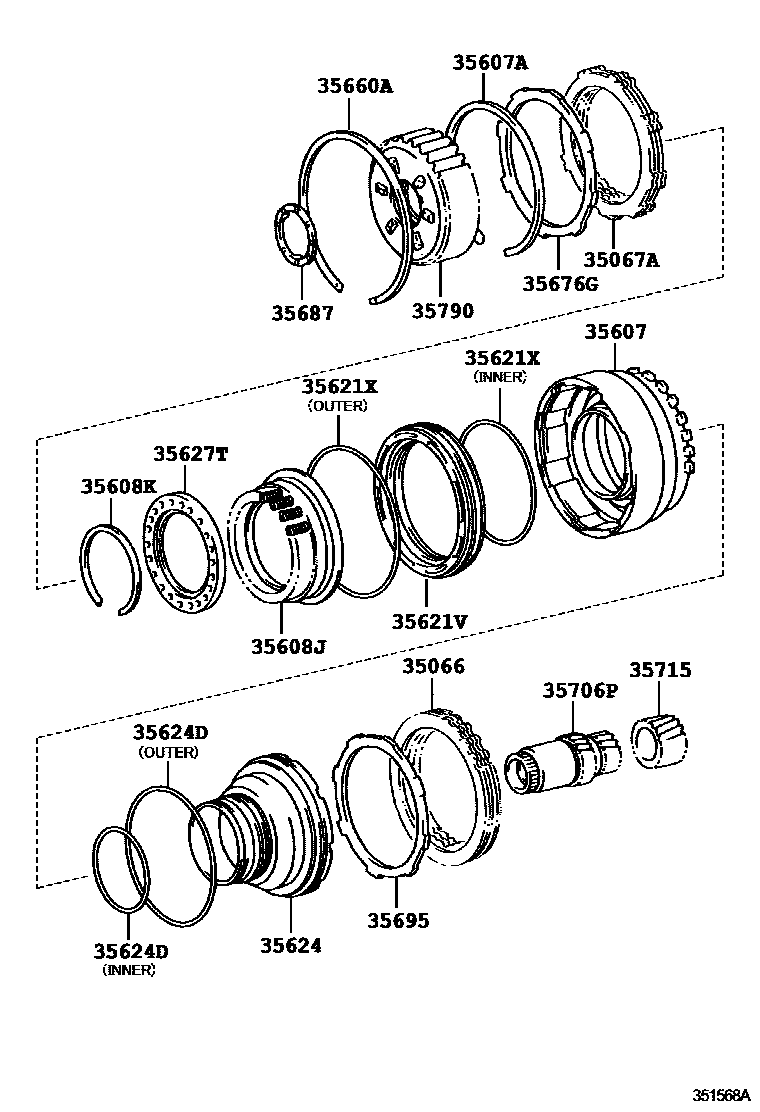

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35066DISC SET, 2ND BRAKE
35067ADISC SET, 3RD BRAKE, NO.2
35607DRUM SUB-ASSY, BRAKE, NO.1 & NO.2
35607ARING, SNAP, NO.1 (FOR BRAKE DRUM)
35608JSPRING SUB-ASSY, BRAKE PISTON RETURN
35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
35621VPISTON, BRAKE, NO.1
35621XRING, O (FOR BRAKE PISTON NO.1)
INNER
OUTER
35624PISTON, 2ND BRAKE
35624DRING, O (FOR BRAKE PISTON NO.4)
INNER
OUTER
35627TSEAT, BRAKE RETURN SPRING
35660ARING, SNAP, NO.2 (FOR BRAKE DRUM)
35676GFLANGE, BRAKE, NO.1
T=3.7
T=3.8
T=3.9
T=4.0
T=4.1
T=4.2
35687WASHER, CLUTCH DRUM THRUST, NO.3
35695PLATE, BRAKE, NO.5
T=2.1
T=2.3
T=2.5
T=2.7
T=2.9
T=3.1
35706PGEAR SUB-ASSY, FRONT PLANETARY SUN
35715GEAR, RR PLANETARY SUN
35790CLUTCH ASSY, 1 WAY
18 parts on this diagram · 1 diagram in section
