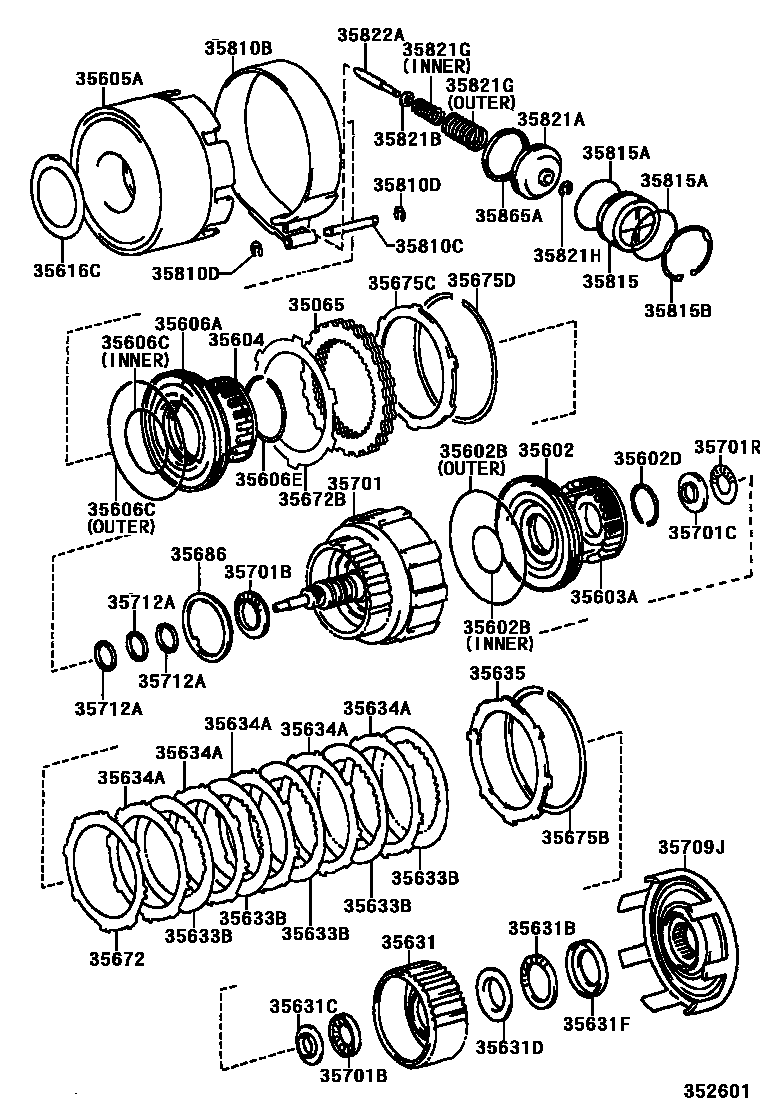

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35065DRUM SUB-ASSY, REAR CLUTCH & FRONT SUN GEAR
35602PISTON SUB-ASSY, FRONT CLUTCH
35602BRING, O (FOR FORWARD CLUTCH PISTON)
INNER
OUTER
35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35605ADRUM SUB-ASSY, DIRECT CLUTCH
35606APISTON SUB-ASSY, DIRECT CLUTCH
35606CRING, O (FOR DIRECT CLUTCH PISTON)
INNER
OUTER
35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)
35616CWASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM)
35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
35631BBEARING, THRUST(FOR FRONT CLUTCH HUB)
35631CRACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT)
35631DRACE, THRUST BEARING(FOR FRONT CLUTCH HUB REAR)
35631FRACE, THRUST BEARING(FOR REAR CLUTCH DRUM)
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
T=1.8
35635FLANGE, FORWARD CLUTCH
T=4.0,MARK 95
T=3.8,MARK 94
T=3.6,MARK 93
T=3.4,MARK 92
T=3.2,MARK 91
T=3.0,MARK 90
T=3.00,MARK 61
35672PLATE, CLUTCH CUSHION
35672BPLATE, CLUTCH CUSHION, NO.2
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
35675CFLANGE, DIRECT CLUTCH
T=3.9,MARK 39
T=4.0,MARK 40
T=4.1
T=3.5,MARK 55
T=3.6,MARK 56
T=3.7,MARK 57
T=3.3,MARK 53
T=3.4,MARK 54
T=3.8,MARK 58
T=4.0,MARK 60
35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)
35686WASHER, CLUTCH DRUM THRUST (FOR INPUT SHAFT)
35701SHAFT SUB-ASSY, INPUT
35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)
35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)
35701RBEARING, THRUST NEEDLE ROLLER
35709JDRUM SUB-ASSY, SUN GEAR INPUT
35712ARING, INPUT SHAFT OIL SEAL
35810BBAND ASSY, 2ND COAST BRAKE
sub35810-50020
35810CPIN (FOR 2ND COAST BRAKE BAND)
35810DRING, E (FOR 2ND COAST BRAKE BAND PIN)
35815COVER, 2ND COAST BRAKE
35815ARING, O (FOR 2ND COAST BRAKE COVER)
35815BRING, HOLE SNAP (FOR 2ND COAST BRAKE COVER)
35821APISTON, 2ND COAST BRAKE
35821BWASHER, PLATE (FOR 2ND COAST BRAKE PISTON)
35821GSPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON)
INNER
OUTER
35821HRING, E (FOR 2ND COAST BRAKE PISTON)
35822AROD, 2ND COAST BRAKE PISTON
L=78.4
L=79.9
L=72.15
L=70.65
35865ARING, 2ND COAST BRAKE PISTON OIL SEAL
43 parts on this diagram · 1 diagram in section
