GEAR SHIFT FORK & LEVER SHAFT (MTM)
33212AFORK, GEAR SHIFT, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214GFORK, GEAR SHIFT, NO.3
33221ARM, REVERSE SHIFT
33221BRING, E(FOR REVERSE SHIFT ARM)
33231HEAD, REVERSE SHIFT
33231ASPRING, REVERSE SHIFT RESTRICT
33231BBALL, REVERSE SHIFT RESTRICT
33231FPLUG(FOR REVERSE SHIFT HEAD)
33241SHAFT, REVERSE SHIFT FORK
33242SHAFT, GEAR SHIFT FORK, NO.1
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33245GSHAFT, GEAR SHIFT FORK, NO.4
33251LEVER, SHIFT & SELECT
33252ALEVER, SHIFT, INNER NO.2
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
33264APLUG, INTERLOCK HOLE
L=7.5,OD=15
33265PIN, SHIFT INTERLOCK, NO.2
L=11.2,OD=4
L=13.6,OD=6
L=8.6,OD=6
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=17
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=20
33275BBALL, SHAFT DETENT
33276SEAT, SHIFT DETENT BALL SPRING, NO.2
33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
33276BBALL, SHIFT DETENT, NO.2
33280PIN ASSY, REVERSE RESTRICT
RH
LH
33280AGASKET, REVERSE RESTRICT PIN
33280EPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283FPIN, REVERSE RESTRICT
33292APIN, LOCK BALL
sub33292-20010
33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)

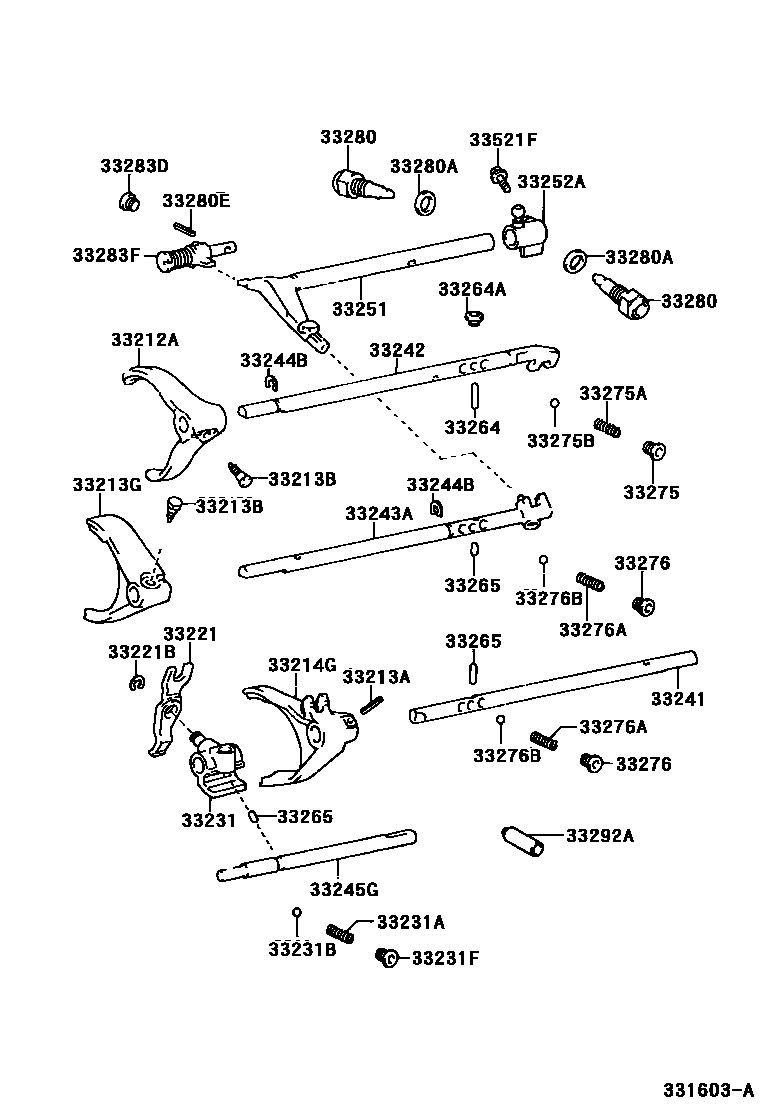

34 parts on this diagram · 1 diagram in section
